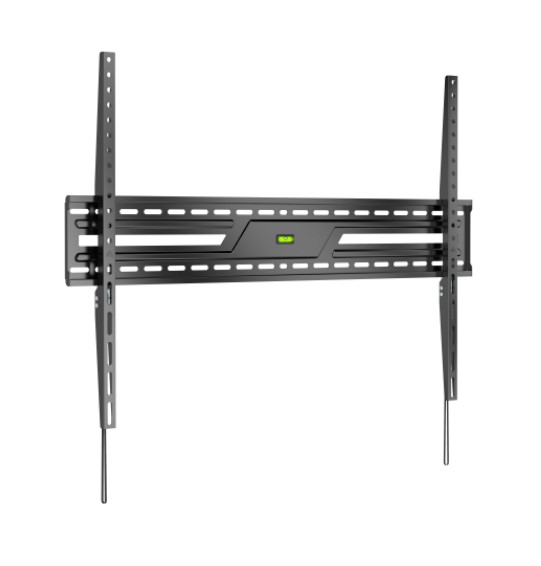

Brateck KL38-69F Large-Screen Large Fixed TV Wall Mount (new)
FEATURES
?Heavy-Duty Steel Construction: provides extra strength and durability
?Open Architecture: provides increased ventilation and easier access to wires
?Slim Design: provides a low profile
?Automatic Spring Locks with Quick Release Cords: allow TV removal quick and easy
?Integrated Bubble Level: assures alignment
SPECIFICATIONS
Product Category: Fixed TV Wall Mount
Rank: Standard
Material: Steel
Metal Sheet Thickness: Bracket Arm THK=1.5mm cold-rolled sheet,Wall Plate THK=1.5mm cold-rolled sheet (Bracket Arm THK=0.059′ cold-rolled sheet,Wall Plate THK=0.059′ cold-rolled sheet)
Surface Finish: Powder Coating
Color: Fine Texture Black
Dimensions: 30x938x625mm (1.2’x36.9’x24.6′)
Fit Screen Size: 43′-100′
Fit Curved TV: Yes
Mounting Hole Pattern: VESA & Universal
VESA Compatible: 50×50,75×75,100×100,100×200,200×100,200×200,200×300,300×200,200×400,400×200,300×300,300×400,400×300,600×200,500×300,400×400,600×300,500×400,400×600,600×400,700×400,800×400,850×400,600×600,800×500,800×600,900×600
Max. Mounting Hole: 910×602
Weight Capacity: 75kg (165lbs)
Strength Tested: 4 Times Approved
Profile: 30mm (1.2′)
Installation: Solid Wall,Double Stud(406mm/450mm/600mm)
Panel Type: Detachable Panel
Wall Plate Type: Fixed Wall Plate
AV Component Shelf: No
Direction Indicator: Yes
Cable Management: No
Anti-theft: No
Bubble Level: Built-in Bubble Level (Integrated on Wall Plate/VESA Panel)
Accessory Kit Package: Normal/Ziplock Polybag,Compartment Polybag
Silk Screen: Can be silkscreen printed
