| Weight |
1.88 kg |
| Dimensions |
315 × 89 × 333 mm |
| Alarm Interface |
–
|
| Alarm Actions |
–
|
| Alarm Types |
Record, snapshot, IPC external alarm output, audio, buzzer, log, preset, email
|
| ANPR (By Camera) |
–
|
| ANPR Functions |
–
|
| App Integration |
iOS / Android
|
| Audio |
1 channel input (RCA), 1 channel output (RCA)
|
| Backup Method |
USB device / network
|
| Decoding Capacity (AI Disabled) |
8CH@1080p/2MP/25fps
|
| Decoding Capacity (AI Enabled) |
–
|

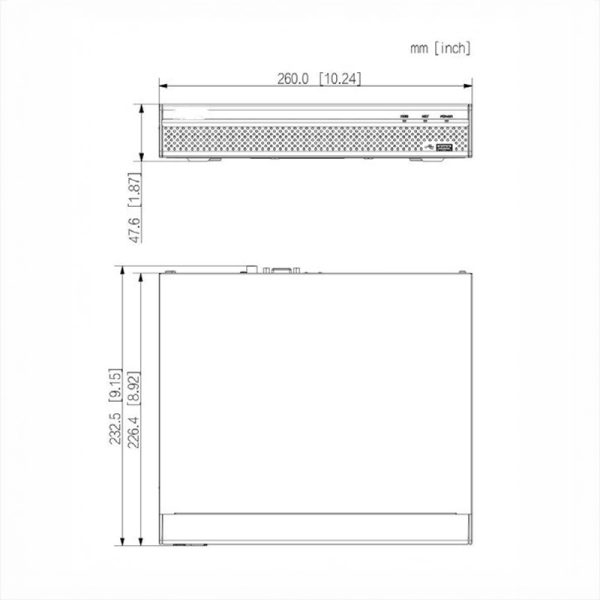

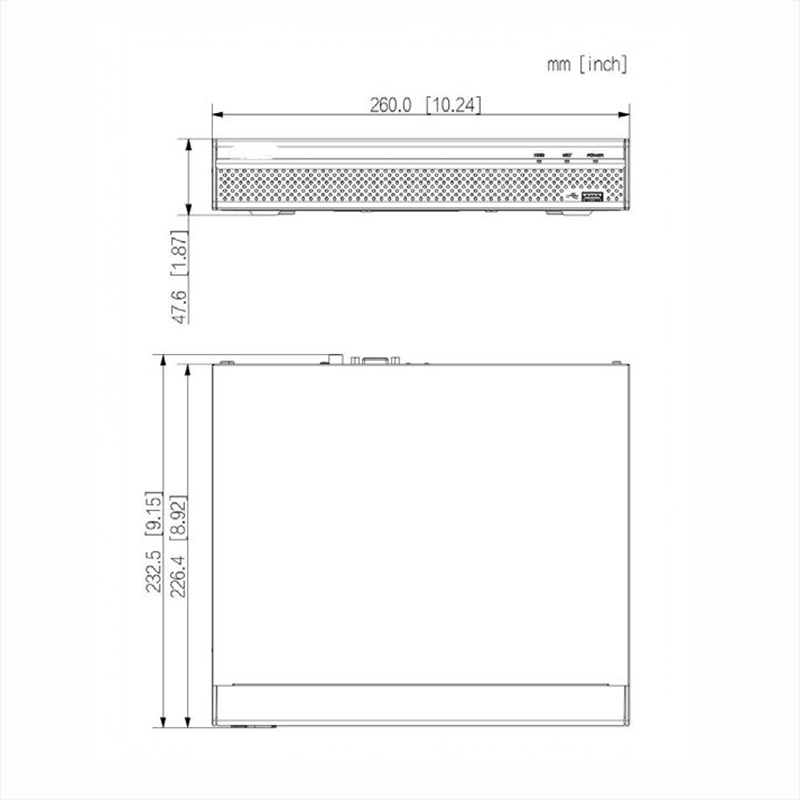

| Dimensions |
260mm x 232.5mm x 47.6mm
|
| Display Mode |
HDMI1 + VGA1 (Mirror)
|
| Display Output |
1 x HDMI (up to 3840 x 2160), 1 x VGA (up to 1920 x 1080)
|
| Display Split |
1st screen – 1/4/8/9, 2nd screen – 1/4/8/9
|
| Face Detection (By Camera) |
6 channels
|
| Face Detection (By NVR) |
–
|
| Face Detection Functions |
Gender, Age Group, Glasses, Expressions, Face Mask, Beard
|
| Face Recognition (By Camera) |
6 channels
|
| Face Recognition (By NVR) |
–
|
| Face Recognition Capacity |
–
|
| HDD |
1 x SATA bays, up to 20TB
|
| HDD Capacity |
1
|
| Human/Vehicle Detection (By Camera) |
IVS: 6 channels, SMD: 6 channels
|
| Human/Vehicle Detection (By NVR) |
–
|
| Human/Vehicle Detection Functions |
–
|
| Interoperability |
ONVIF 22.12(Profile T; Profile S; Profile G); CGI; SDK
|
| Network Bandwidth (AI Disabled) |
160Mbps (incoming/recording) 80Mbps (outgoing)
|
| Network Bandwidth (AI Enabled) |
–
|
| Network Functions |
HTTP, HTTPS, TCP/IP, IPv4/IPv6, UDP, NTP, DHCP, DNS, SMTP, UPnP, IP Filter, DDNS, FTP, SNMP, Alarm Server, P2P, Auto Registration, IP Search
|
| Network Input |
1 x 10/100/1000Mbps Ethernet uplink, 8 x PoE 10/1000Mbps (802.3af/at)
|
| NVR Operated AI |
–
|
| Operating Environment |
-10øC ~ +55øC / 10 ~ 93%RH
|
| Playback Channels |
8 Channels
|
| Playback Modes |
Instant playback, general playback, event playback, tag playback, smart playback
|
| PoE |
Yes
|
| Power Consumption |
NVR: <10W (without HDD) / PoE: Max 25.5W for single port, 72W total
|
| Power Supply |
53VDC / 1.81A
|
| Processor & Operation |
Industrial-grade processor, Embedded Linux OS, Web Interface / Local GUI
|
| Rackmount Units |
1U
|
| Rackmountable |
Yes
|
| Recording Resolution |
Configurable from 12.0MP (4000 x 3000) to QCIF (176 x 144)
|
