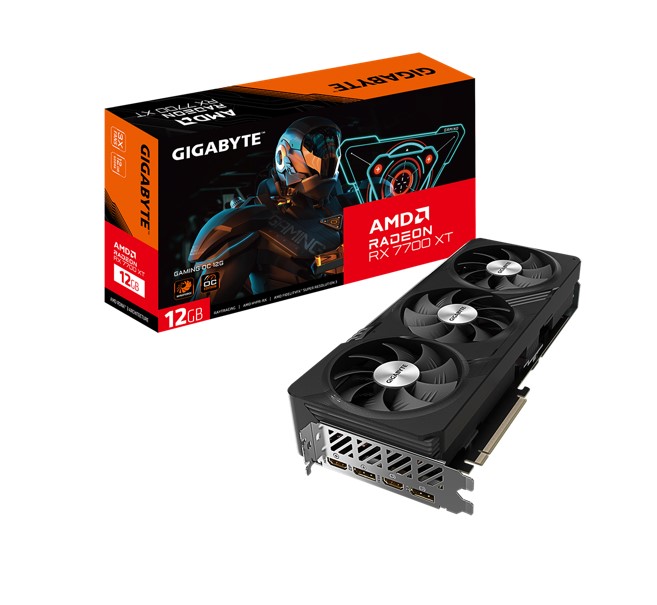

Gigabyte AMD Radeon? RX 7700 XT GAMING OC 12G, 18 Gbps, GDDR6, 192 bit, PCI-E 4.0, 8 Pin*2, DisplayPort 2.1 *2 HDMI 2.1 *2
SPECIFICATION
Graphics Processing
Radeon? RX 7700 XT
Core Clock
Boost Clock* : up to 2599 MHz (Reference card: 2544 MHz)
Game Clock* : up to 2276 MHz (Reference card: 2171 MHz)
Stream Processors
3456
Memory Clock
18 Gbps
Memory Size
12 GB
Memory Type
GDDR6
Memory Bus
192 bit
Card Bus
PCI-E 4.0
Digital max resolution
7680×4320
Multi-view
4
Card size
L=302 W=130 H=56 mm
PCB Form
ATX
DirectX
12 Ultimate
OpenGL
4.6
Recommended PSU
700W
Power Connectors
8 Pin*2
Output
DisplayPort 2.1 *2
HDMI 2.1 *2
Accessories
Quick guide
Note
* ??Boost Clock’ is the maximum frequency achievable on the GPU running a bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in applications and workloads.GD-151
* ??Game Clock’ is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary. GD-147
KEY FEATURE
Powered by Radeon? RX 7700 XT
Integrated with 12GB GDDR6 192-bit memory interface
WINDFORCE Cooling System
RGB Fusion
Dual BIOS
Protection metal back plate
WINDFORCE COOLING SYSTEM
The WINDFORCE cooling system features three 90mm unique blade fans, alternate spinning, 7 composite copper heat pipes, a large copper plate directly touches the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation.
WINDFORCE
COOLING SYSTEM
The WINDFORCE cooling system features three 90mm unique blade fans, alternate spinning, 7 composite copper heat pipes, a large copper plate directly touches the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation.
ALTERNATE SPINNING
Reduce the turbulence of adjacent fans and increase airflow pressure.
WINDFORCE
COOLING SYSTEM
The WINDFORCE cooling system features three 90mm unique blade fans, alternate spinning, 7 composite copper heat pipes, a large copper plate directly touches the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation.
ALTERNATE SPINNING
Reduce the turbulence of adjacent fans and increase airflow pressure.
3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.
WINDFORCE
COOLING SYSTEM
The WINDFORCE cooling system features three 90mm unique blade fans, alternate spinning, 7 composite copper heat pipes, a large copper plate directly touches the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation.
3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.
UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.
WINDFORCE
COOLING SYSTEM
The WINDFORCE cooling system features three 90mm unique blade fans, alternate spinning, 7 composite copper heat pipes, a large copper plate directly touches the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation.
UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.
GRAPHENE NANO LUBRICANT
Graphene nano lubricant can extend the life of sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter.
SCREEN COOLING
Extended heatsink allows air to pass through, providing better heat dissipation.
