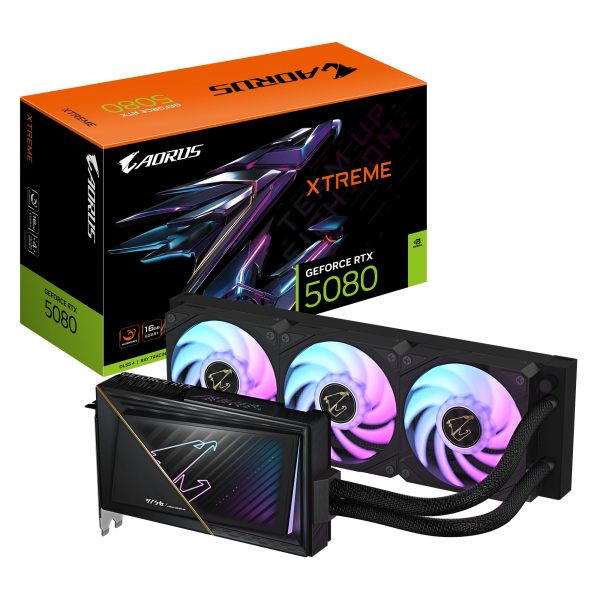

Gigabyte AORUS GeForce RTX? 5080 XTREME WATERFORCE 16G, 2805 MHz, CUDA 10752, 30 Gbps, GDDR7, 256 bit, PCI-E 5.0, PSU 850W, HDMI 2.1b x1
SPECIFICATION
Graphics Processing
GeForce RTX? 5080
Core Clock
2805 MHz (Reference: 2617 MHz)
CUDA?? Cores
10752
Memory Clock
30 Gbps
Memory Size
16GB
Memory Type
GDDR7
Memory Bus
256 bit
Card Bus
PCI-E 5.0
Digital max resolution
7680 x 4320
Multi-view
4
Card size
L=220 W=130 H=40
PCB Form
ATX
DirectX
DirectX 12 API
OpenGL
OpenGL 4.6
Recommended PSU
850W
Power Connectors
16 pin*1
Output
DisplayPort 2.1b x3
HDMI 2.1b x1
Tube length
460mm ?ñ 1.5%
Radiator
360mm aluminum radiator
Fan
3 x 120mm ARGB fans
Accessories
1. VGA manual
2. Warranty notice
3. 1x 12V-2×6 to 3x PCIe 8pin adapter
4. AORUS identity stickers
FEATURES
Powered by the NVIDIA Blackwell architecture and DLSS 4
Powered by GeForce RTX? 5080
Integrated with 16GB GDDR7 256bit memory interface
WATERFORCE all-in-one cooling system
360mm radiator with three 120mm ARGB fans
Liquid metal thermal grease for GPU
RGB Lighting
Protective metal back plate
4 Years Warranty (Online registration required)
NVIDIA Blackwell Architecture
The Ultimate Platform for Gamers and Creators
Fifth-Gen Tensor Cores
Max AI performance with FP4 and DLSS 4
New Streaming Multiprocessors
Optimized for neural shaders
Fourth-Gen Ray Tracing Cores
Built for Mega Geometry
WATERFORCE COOLING SYSTEM
The ideal way for PC enthusiasts to enjoy the benefits of water cooling without complicated installations. AORUS provides an all-around cooling solution as critical parts like GPU, VRAM and MOSFET are actively cooled to ensure system stability under high overclocks.
UNCOMPROMISING CRAFTSMANSHIP & PERFORMANCE
Perfectly capturing the essence of convergence, the design features a transparent element with smoky black as the key visual, complemented by the interplay of light and shadow. The inner transparent panel reveals a convergence of lines, creating a dynamic yet profound visual effect. This design not only adds a touch of mystery to the graphics card but also delivers an unparalleled visual experience.
GOLDEN EDGE WITH LAYERED VISUAL EFFECTS
Outlined with an elegant golden line, the front is divided into two distinctly contrasting textures, elevating the ”beauty of irregularity” to its ultimate perfection.
RGB LIGHT-GUIDING DESIGN
Leveraging the light-guiding properties of acrylic, the front AORUS logo emits RGB lighting with refined detailing in the illuminated areas.
RGB EDGE LIGHTING
The RGB lighting extends along the edges of the irregular layered design, subtly enhancing the stereoscopic appearance while infusing a sense of suspension and futuristic technological aesthetics.
RGB LIGHTING
With 16.7M customizable color options and numerous lighting effects, you can choose any lighting effect or synchronize with other devices in GIGABYTE CONTROL CENTER.
