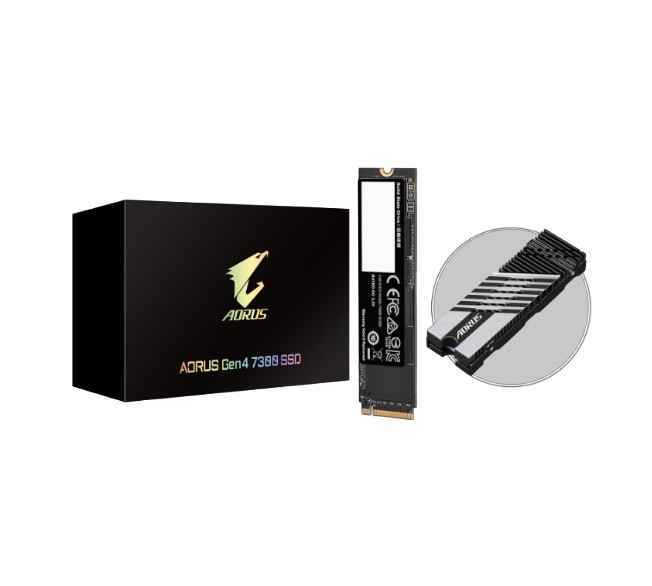

Gigabyte AORUS Gen4 7300 SSD M2 1TB PCI-Express 4.0 x4, NVMe 1.4, Sequential Read ~7300 MB/s, Sequential Write ~6000 MB/s
Key Features
Form Factor: M.2 2280
Interface: PCI-Express 4.0 x4, NVMe 1.4
Total Capacity: 1000GB*
Sequential Read Speed : up to 7300 MB/s**
Sequential Write speed : up to 6000 MB/s**
Wear Leveling, Over-Provision technologies
TRIM & S.M.A.R.T supported
AES-256 Supported
High Efficient Heat Spreader with Nanocarbon Coating
Warranty: Limited 5-years
Specification
Interface PCI-Express 4.0 x4, NVMe 1.4
Form Factor M.2 2280
Total Capacity 1000GB
NAND 3D TLC NAND Flash
External DDR Cache DDR4L 1GB
Sequential Read speed Up to 7300 MB/s
Sequential Write speed Up to 6000 MB/s
Dimension 80 x 22 x 2.3 mm (with heatsink: 80.5 x 11.25 x 23.5 mm)
Mean time between failure (MTBF) 1.6 million hours
Power Consumption (Active) Average: R : 6.6W, W : 6.7W
Power Consumption(Idle)(ASPT on) <30mW Temperature (Operating) 0?øC to 70?øC Temperature (Storage) -40?øC to 85?øC Warranty 1. Limited 5-years or 700TBW. 2. Limited warranty based on 5 years or 700TBW, whichever comes first. (*TBW is evaluated by JEDEC workload standard. ) *TBW (Terabyte Written): Terabytes Written is the total amount of data that can be written into a SSD before it is likely to fail. 3. When the usage of an NVME SSD as indicated by the 'Percentage Used' (SMART ID: 05) in SMART page of 'GIGABYTE SSD toolbox' reaches 100 means out of warranty. (A new unused product will show the number of 0) Test Configuration OS: Windows 11 22H2 (OS build 22621.819) CPU: AMD Ryzen 9 7950X 16-Core Processor 4.5G Memory: DDR5 5600 16GBx2 Chipset: AM5 X670 (X670E AORUS MASTER)
