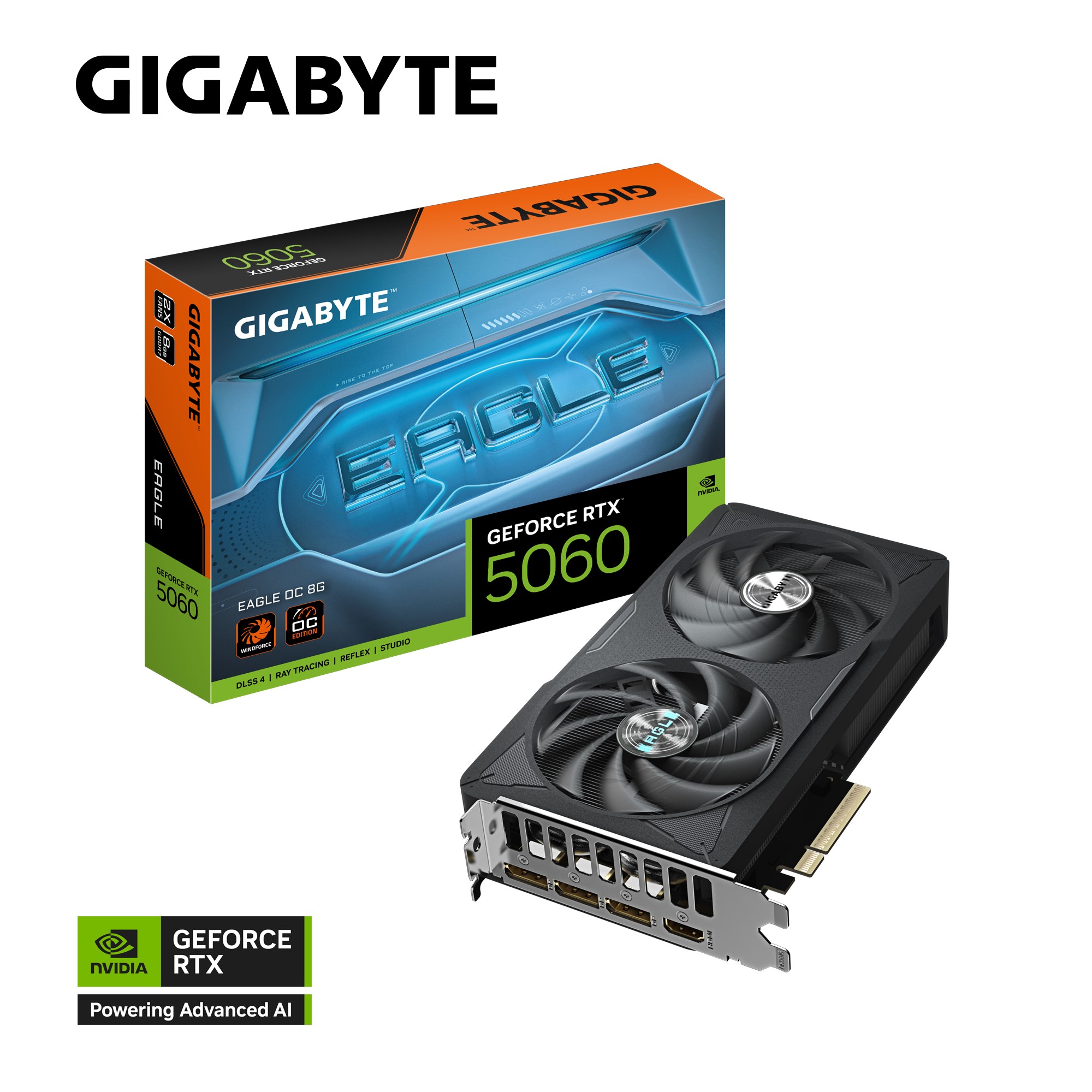

Gigabyte GeForce RTX? 5060 EAGLE OC 8G, 2550 MHz, CUDA 3840, 28 Gbps, GDDR7, 128 bit, PCI-E 5.0, PSU 450W, DisplayPort 2.1b *3 HDMI 2.1b x1
SPECIFICATION
Graphics Processing
GeForce RTX? 5060
Core Clock
2550 MHz (Reference card : 2497MHz)
CUDA?? Cores
3840
Memory Clock
28 Gbps
Memory Size
8 GB
Memory Type
GDDR7
Memory Bus
128 bit
Card Bus
PCI-E 5.0
Digital max resolution
7680×4320
Multi-view
4
Card size
L=208 W=120 H=40
PCB Form
ATX
DirectX
DirectX 12 API
OpenGL
4.6
Recommended PSU
450W
Power Connectors
8 Pin*1
Output
DisplayPort 2.1b *3
HDMI 2.1b *1
Accessories
Quick guide
FEATURES
Powered by the NVIDIA Blackwell architecture and DLSS 4
Powered by GeForce RTX? 5060
Integrated with 8GB GDDR7 128bit memory interface
WINDFORCE cooling system
Hawk fan
Server-grade Thermal conductive gel
Reinforced structure
NVIDIA Blackwell Architecture
The Ultimate Platform for Gamers and Creators
Fifth-Gen Tensor Cores
Max AI performance with FP4 and DLSS 4
New Streaming Multiprocessors
Optimized for neural shaders
Fourth-Gen Ray Tracing Cores
Built for Mega Geometry
WINDFORCE COOLING SYSTEM
The WINDFORCE cooling system delivers exceptional thermal performance through a combination of cutting-edge technologies. It features server-grade thermal conductive gel, innovative Hawk fans with alternate spinning, composite copper heat pipes, a copper plate, 3D active fans, and screen cooling.
ASTONISHING EXTERIOR DESIGN
The design inspiration for the EAGLE series stems from the fusion of aerospace battleships and sci-fi elements. Its unique curved contours outline a streamlined appearance, complemented by segmented lines resembling disassembled deck components, evoking the intricate structure of a spaceship. This design infuses the overall aesthetic with a rich cosmic technology vibe, showcasing the futuristic aesthetics and craftsmanship in every detail.
SIGNATURE IDENTITY
The frontal design boldly integrates aerospace and sci-fi elements, clearly showcasing the distinctive EAGLE style, while maintaining a cohesive aesthetic with the motherboard product line. This ensures a unified design language and reinforces product family identity.
DYNAMIC PULSATING VISUAL
The addition of pulsating elements on the front enhances the overall look with a more depth and dynamics feel, creating a strong sci-fi vibe.
EXCELLENCE IN ESSENTIAL
REINFORCED STRUCTURE
The reinforced backplate with a bent edge, securely fastened to the I/O bracket, provides exceptional structural integrity.
