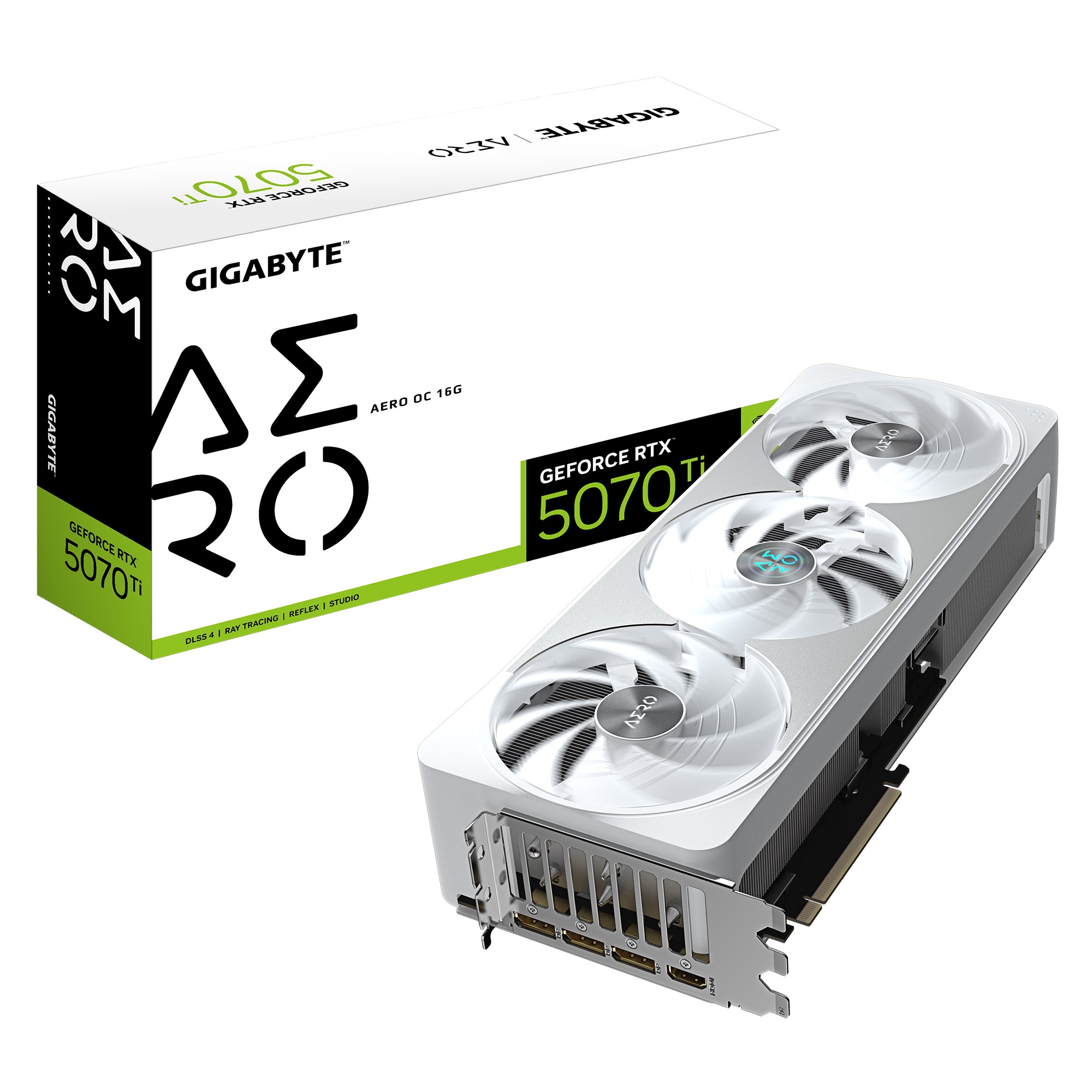

Gigabyte GeForce RTX? 5070 Ti AERO OC 16G, 2588 MHz, CUDA 8960, 28 Gbps, GDDR7, 256 bit, PCI-E 5.0, PSU 750W, DisplayPort 2.1b x3 HDMI 2.1b x1
SPECIFICATION
Graphics Processing
GeForce RTX? 5070 Ti
Core Clock
2588 MHz (Reference: 2452 MHz)
CUDA?? Cores
8960
Memory Clock
28 Gbps
Memory Size
16GB
Memory Type
GDDR7
Memory Bus
256 bit
Card Bus
PCI-E 5.0
Digital max resolution
7680 x 4320
Multi-view
4
Card size
L=340 W=140 H=70 mm
PCB Form
ATX
DirectX
DirectX 12 API
OpenGL
OpenGL 4.6
Recommended PSU
750W
Power Connectors
16 pin*1
Output
DisplayPort 2.1b x3
HDMI 2.1b x1
Accessories
1. VGA manual
2. Warranty notice
3. 1x 12V-2×6 to 3x PCIe 8pin adapter
4. Versatile VGA holder
5. Versatile VGA holder manual
FEATURES
Powered by the NVIDIA Blackwell architecture and DLSS 4
Powered by GeForce RTX? 5070 Ti
Integrated with 16GB GDDR7 256bit memory interface
WINDFORCE cooling system
Hawk fan
Server-grade thermal conductive gel
RGB Lighting
Dual BIOS (Performance / Silent)
Reinforced structure
Versatile VGA holder
4 years warranty (Online registration required)
NVIDIA Blackwell Architecture
The Ultimate Platform for Gamers and Creators
Fifth-Gen Tensor Cores
Max AI performance with FP4 and DLSS 4
New Streaming Multiprocessors
Optimized for neural shaders
Fourth-Gen Ray Tracing Cores
Built for Mega Geometry
WINDFORCE COOLING SYSTEM
The WINDFORCE cooling system delivers exceptional thermal performance through a combination of cutting-edge technologies. It features server-grade thermal conductive gel, innovative Hawk fans with alternate spinning, composite copper heat pipes, a large vapor chamber, 3D active fans, and screen cooling.
ASTONISHING EXTERIOR DESIGN
Drawing inspiration from water, the back panel’s ripples evoke flowing water, with mirrored, frosted, and light elements reflecting the water’s shimmering surface. Metal craftsmanship refines the texture, while teal and iridescent hues accentuate the serene lake. The fan’s rotation creates expanding ripples, infusing natural movement into the details.
RGB LIGHTING
With 16.7M customizable color options and numerous lighting effects, you can choose any lighting effect or synchronize with other devices in GIGABYTE CONTROL CENTER.
EXCELLENCE IN ESSENTIAL
REINFORCED STRUCTURE
The reinforced metal backplate with a bent edge, securely fastened to the I/O bracket, provides exceptional structural integrity.
