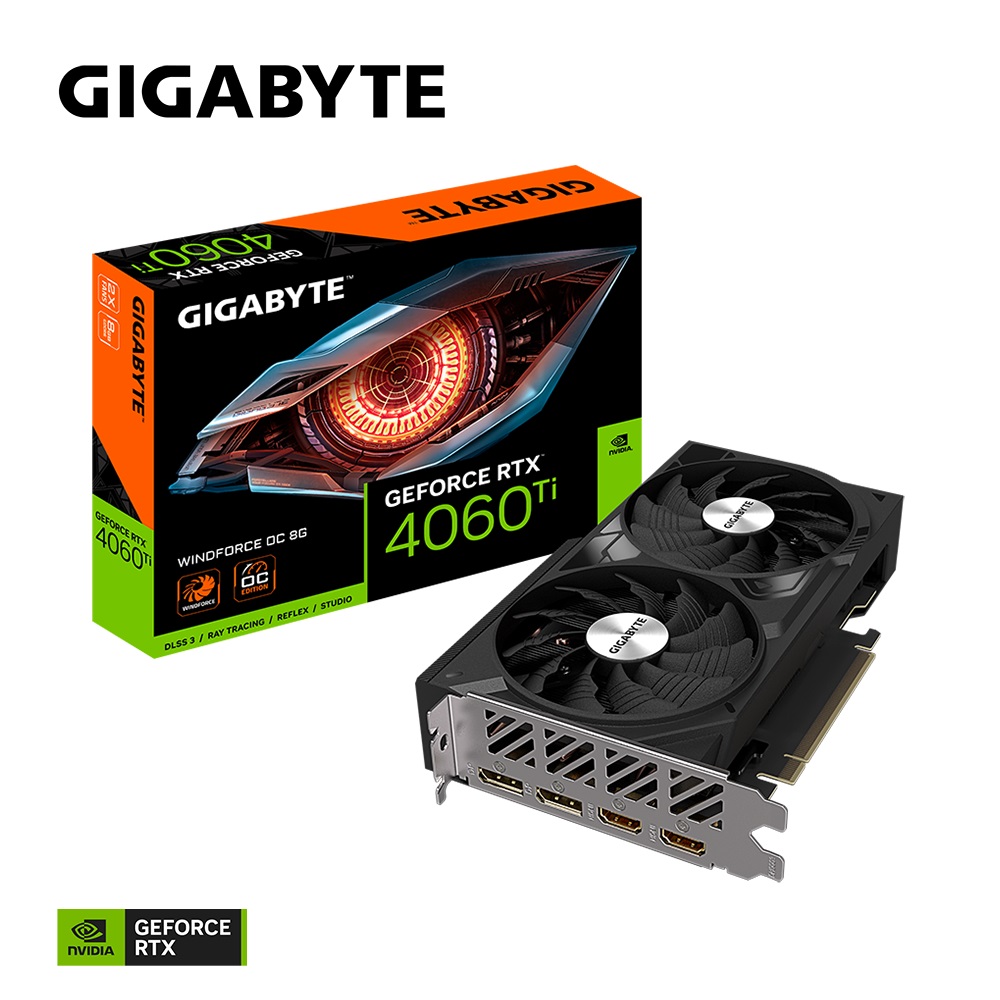

Gigabyte nVidia GeForce RTX? 4060 Ti WINDFORCE OC 8G, 2550 MHz, CUDA 4352, 18 Gbps, GDDR6, 128 bit, PCI-E 4.0, PSU 500W,DisplayPort 1.4a*2 HDMI 2.1a*2
SPECIFICATION
Graphics Processing
GeForce RTX? 4060 Ti (8GB)
Core Clock
2550 MHz (Reference Card: 2535 MHz)
CUDA?? Cores
4352
Memory Clock
18 Gbps
Memory Size
8 GB
Memory Type
GDDR6
Memory Bus
128 bit
Card Bus
PCI-E 4.0
Digital max resolution
7680×4320
Multi-view
4
Card size
L=201 W=120 H=41 mm
PCB Form
ATX
DirectX
12 Ultimate
OpenGL
4.6
Recommended PSU
500W
Power Connectors
8 pin*1
Output
DisplayPort 1.4a*2
HDMI 2.1a*2
Accessories
Quick guide
KEY FEATURE
Powered by NVIDIA DLSS 3, ultra-efficient Ada Lovelace arch, and full ray tracing
4th Generation Tensor Cores: Up to 4x performance with DLSS 3 vs. brute-force rendering
3rd Generation RT Cores: Up to 2X ray tracing performance
Powered by GeForce RTX? 4060 Ti (8GB)
Integrated with 8GB GDDR6 128bit memory interface
WINDFORCE cooling system
Protection back plate
The Ultimate Platform for Gamers and Creators
Powered by GeForce RTX 40 Series and DLSS 3
New Streaming Multiprocessors
Up to 2x performance and power efficiency
Fourth-Gen Tensor Cores
Up to 4x performance with DLSS 3 vs. brute-force rendering
Third-Gen RT Cores
Up to 2x ray tracing performance
WINDFORCE COOLING SYSTEM
The WINDFORCE cooling system features two 90mm unique blade fans, alternate spinning, 3 composite copper heat pipes directly touch the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation.
SCREEN COOLING
Extended heatsink allows air to pass through, providing better heat dissipation.
HEAT PIPES DIRECT TOUCH
The shape of the pure copper heat pipe maximizes the direct contact area with the GPU. The heat pipe also covers the VRAM through a metal plate contact to ensure proper cooling.
PROTECTION BACK PLATE
The back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.
