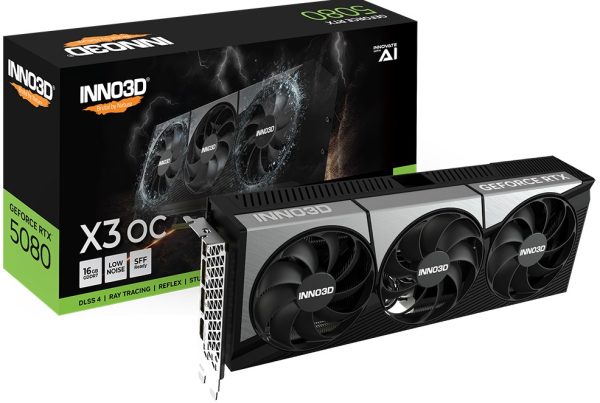

INNO3D nVidia GeForce RTX 5080 X3 OC 16GB GDDR7 2640MHz Boost Clock, RAM 30 Gbps, 3x DP, 1xHDMI 300x120x50mm
GPU Engine Specs
CUDA Cores 10752
Boost Clock (MHz) 2640 MHz
Base Clock (MHz) 2295MHz
Thermal and Power Spec
Minimum System Power Requirement (W) 850W
Supplementary Power Connectors 3x PCIe 8-pin cables (adapter in box) OR 1x 450 W or greater PCIe Gen 5 cable
Memory Specs
Memory Clock 30Gbps
Standard Memory Config 16GB
Memory Interface GDDR7
Memory Interface Width 256-bit
Memory Bandwidth (GB/sec) 960 GB/sec
Feature Support
Real-Time Ray Tracing Yes
Ray Tracing Cores 4th Generation, 171 TFLOPS
Tensor Cores 5th Generation, 1801 AI TOPS
NVIDIA Architecture Blackwell
Microsoft DirectX 12 Ultimate
NVIDIA DLSS 4
NVIDIA Ansel Yes
NVIDIA FreeStyle Yes
Bus Support PCI Express Gen 5
NVIDIA ShadowPlay Yes
OS Certification Windows 11 / 10, Linux, FreeBSDx86
NVIDIA Highlights Yes
NVIDIA G-SYNCƒ?›-Ready Yes
Game Ready Drivers Yes
NVIDIA Studio Drivers Yes
NVIDIA GPU Boostƒ?› Yes
Vulkan API 1.4
OpenGL 4.6
NVIDIA Encoder 2x Ninth Generation
NVIDIA Decoder 2x Sixth Generation
Accessories
Graphics Card Dimensions
Length 300mm
Height 120mm
Width 50mm
Display Support
Multi Monitor up to 4
Maxmium Digital Resolution 4K at 480Hz or 8K at 165Hz with DSC
HDCP 2.3
Standard Display Connectors 3x DisplayPort 2.1b, 1x HDMI 2.1b
