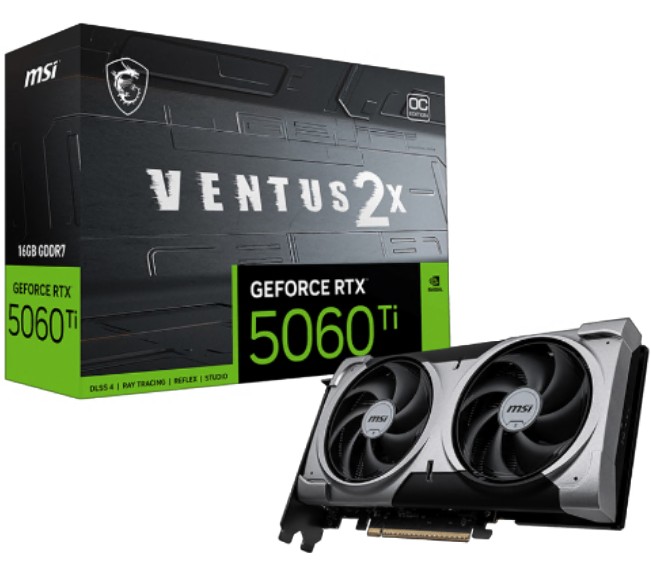

MSI nVidia GeForce RTX? 5060 Ti 16G VENTUS 2X OC PLUS, PCI Express?? Gen 5 x16, Boost: 2602 MHz, CUDA 4608 Units, 16GB GDDR7, HDMI? x 1
SPECIFICATIONS
Marketing Name GeForce RTX? 5060 Ti 16G VENTUS 2X OC PLUS
Model Name G506T-16V2CP
Graphics Processing Unit NVIDIA?? GeForce RTX? 5060 Ti
Interface PCI Express?? Gen 5 x16 (uses x8)
Core Clocks Extreme Performance: 2617 MHz (MSI Center)
Boost: 2602 MHz
CUDA?? CORES 4608 Units
Memory Speed 28 Gbps
Memory 16GB GDDR7
Memory Bus 128-bit
Output DisplayPort x 3 (v2.1b)
HDMI? x 1 (As specified in HDMI? 2.1b: up
to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR)
HDCP Support Y
Power consumption 180 W
Power connectors 8-pin x1
Recommended PSU 600 W
Card Dimension (mm) 227 x 126 x 41 mm
Weight (Card / Package) 600 g / 862 g
DirectX Version Support 12 Ultimate
OpenGL Version Support 4.6
Maximum Displays 4
G-SYNC?? technology Y
Digital Maximum Resolution 7680 x 4320
FEATURES
Dual Fan
Two fans and a huge heatsink ensure a cool and quiet experience
for you.
STORMFORCE FAN
Seven fan blades, claw texturing, and a circular arc are designed
for optimal airflow with minimal noise.
Metal Backplate
A sturdy metal backplate strengthens the graphics card while the
airflow vent design reduces excess heat.
Zero Frozr
The fans completely stop when temperatures are relatively low,
eliminating all noise.
DrMOS
DrMOS power stage solutions provide great efficiency with low
power loss and enhanced voltage controls.
Fuse
Additional fuses built into the custom PCB provide additional
safeguards against electrical damage.
MSI Center
The exclusive MSI Center software lets you monitor, tweak and
optimize MSI products in real-time.
Afterburner
Take full control with the most recognized and widely used
graphics card overclocking software in the world.
