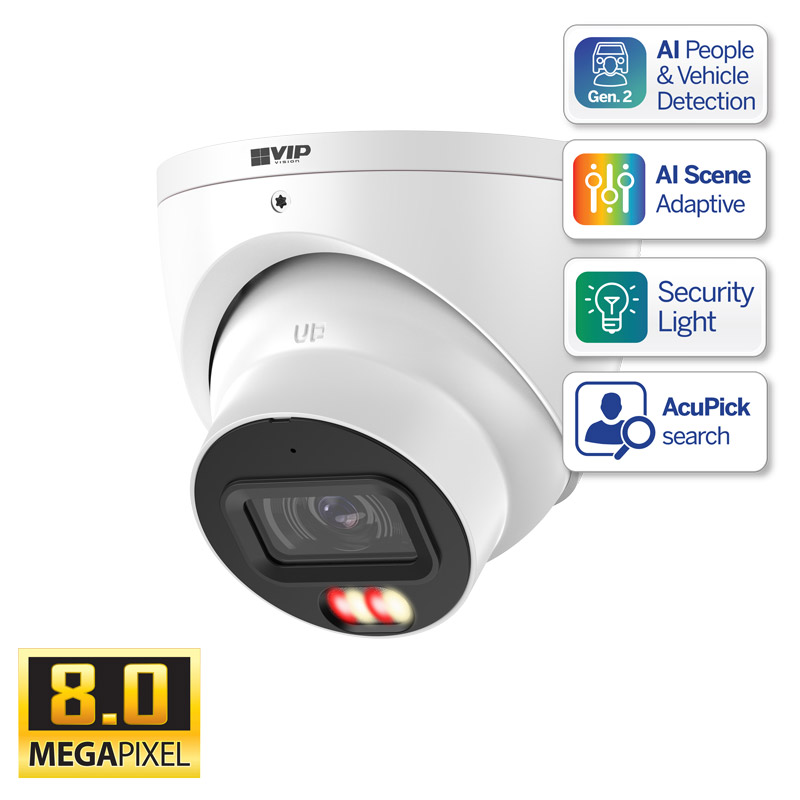

Professional AI Series 8.0MP Fixed Turret

$218.40 ..inc GST

In stock

VSIPP-8DIRG-I3

Buy it now
Brands:
SKU: VSIPP-8DIRG-I3

The VSIPP-8DIRG-I3 identifies people & vehicles using machine learning, to reduce false motion detection alerts and provide meaningful video event notifications in real-time. When used in conjunction with a VIP Vision NVR, person and vehicle events can be isolated in footage playback to improve surveillance efficiency.

Camera features:
? Stream up to 8.0MP (3840 x 2160) at 25fps
? 2.8mm fixed lens with 110ø viewing angle
? H.265 encoding for efficient storage & streaming
? Activates LED light during people/vehicle events
? Up to 30m infrared range; true day/night (auto ICR)
? Built-in microphone and microSD slot for edge recording
? AI powered perimeter protection & smart motion detection (SMD 4.0)
? Set up AI people and vehicle detection, receive alerts and search footage by people or vehicles
? AI weather and anti-flicker scene self-adaption
? Back/highlight compensation & true WDR (120dB)
? 3D digital noise reduction & auto white balance
? IP67 weather rated housing for outdoor use

Weight 0.7 kg
Dimensions 150 × 160 × 160 mm
Alarm Interface

N/A

AcuPick

Yes

Audio Interface

Built-in Mic / Audio Compression – G.711a; G.711Mu; G726; G.723; PCM

Bit Rate

H.265: 3 ~ 16384Kbps / H.264: 3 ~ 16384Kbps

Bit Rate Control

Constant bit rate (CBR) / Variable bit rate (VBR) / Average bit rate (ABR)

Camera Type

Turret

Day/Night

Auto (ICR) / Color / B&W

Detect (25px/m)

85m

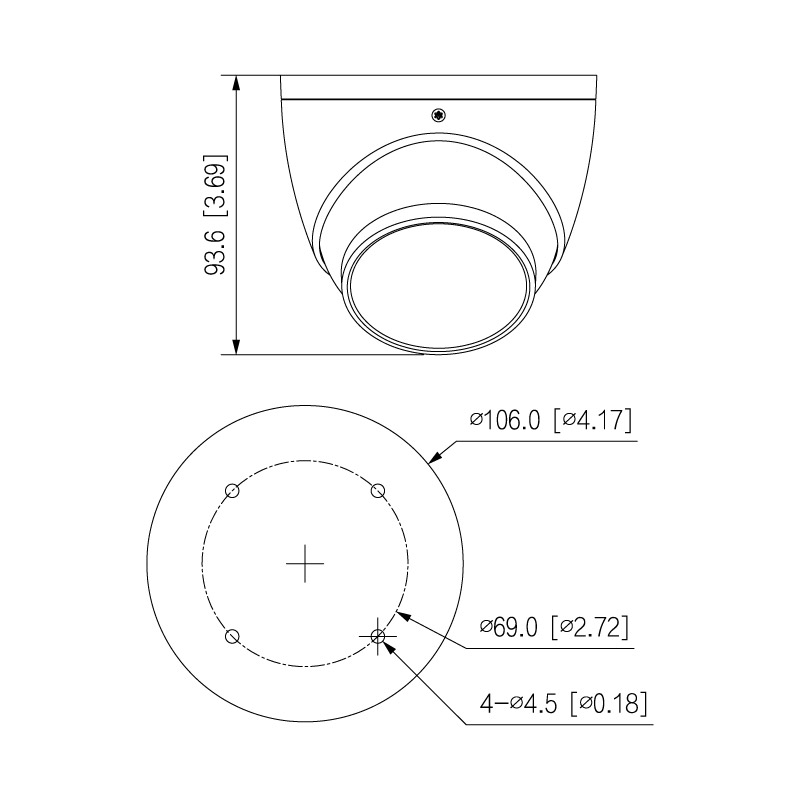

Dimensions

?106mm x 94mm

Edge Storage

MicroSD Card (up to 512GB) / NAS

Effective Pixels

3840 (H) x 2160 (V)

ePoE

No

Ethernet

RJ-45 (10/100Base-T)

Event Trigger

Motion Detection, Video Tampering , Scene Changing, Network Disconnection, IP Address Conflict, Illegal Access, Storage Anomaly

Face Attributes

N/A

Face Detection

N/A

Field of View

Horizontal: 110ø, Vertical: 58ø, Diagonal: 132ø

Focus

Focus / 1.4m Min. Focus Distance

Frame Rate (Main)

8.0MP (1 ~ 25fps)

Frame Rate (Sub)

1080p (1 ~ 25fps)

Frame Rate (Third)

1080p (1 ~ 25fps)

Gain Control

Auto / Manual

Heat Map

N/A

Housing

Metal

Identify (250px/m)

8m

Illumination System

2x warm LED light, 2 x Infrared LED, 30m range, Auto/manual on/off control

Image Sensor

1/2.7?? 8.0MP Progressive Scan CMOS

Ingress Protection

IP67

Intelligent Functions

Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (4 zones), Smart Infrared

Interoperability

ONVIF / P2P / CGI

Lens / Iris

2.8mm Fixed Focal Lens with Fixed Iris

Lens Type

Fixed

Lighting Compensation

BLC / HLC / WDR (120dB) / AI SSA

Max. Resolution

8.0 Megapixel

Max. User Access

20 Users

Min Illumination

0.007 Lux/F1.4 (Color), 0.0007 lux/F1.4 (B/W, 30 IRE), 0 lux (IR)

Net Weight

0.53kg

Noise Reduction

3D DNR

Observe (63px/m)

34m

Operating Conditions

-40øC ~ +60øC / ó95% RH
