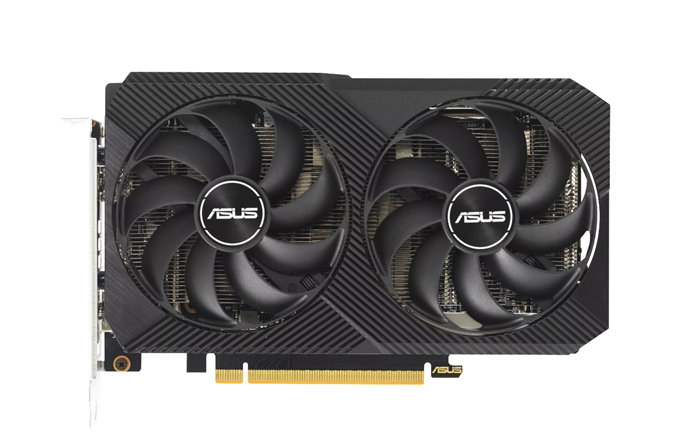

ASUS Dual Radeonƒ?› RX 6500 XT V2 OC Edition 4GB GDDR6 with two powerful Axial-tech fans and a 2-slot design for broad compatibility
OC edition: up to 2820 MHz (Boost Clock)/up to 2670 MHz (Game Clock)
Axial-tech fan design features a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure.
A 2-slot design maximizes compatibility and cooling efficiency for superior performance in small chassis.
Dual ball fan bearings can last up to twice as long as sleeve bearing designs.
A protective backplate prevents PCB flex and trace damage.
Auto-Extreme technology uses automation to enhance reliability.
DUAL-RX6500XT-O4G-V2
Graphic Engine
Radeon RX 6500 XT
Bus Standard
PCI Express 4.0
OpenGL
OpenGL??4.6
Video Memory
4GB GDDR6
Engine Clock
OC mode: up to 2820 MHz(Boost Clock)/ up to 2670 MHz(Game Clock)
Gaming mode: up to 2820 MHz(Boost Clock)/ up to 2650 MHz(Game Clock)
Stream Processors
1024
Memory Speed
18 Gbps
Memory Interface
64-bit
Resolution
Digital Max Resolution 7680 x 4320
Interface
Yes x 1 (Native HDMI 2.1)
Yes x 1 (Native DisplayPort 1.4a)
HDCP Support Yes (2.3)
Maximum Display Support
2
NVlink/ Crossfire Support
No
Accessories
1 x Speedsetup Manual
Software
ASUS GPU Tweak III & Drivers: please download all software from the support site.
Dimensions
201 x 128 x 40 mm
7.9 x 5.03 x 1.57 inch
Recommended PSU
500W
Power Connectors
1 x 6-pin
Slot
2 Slot
