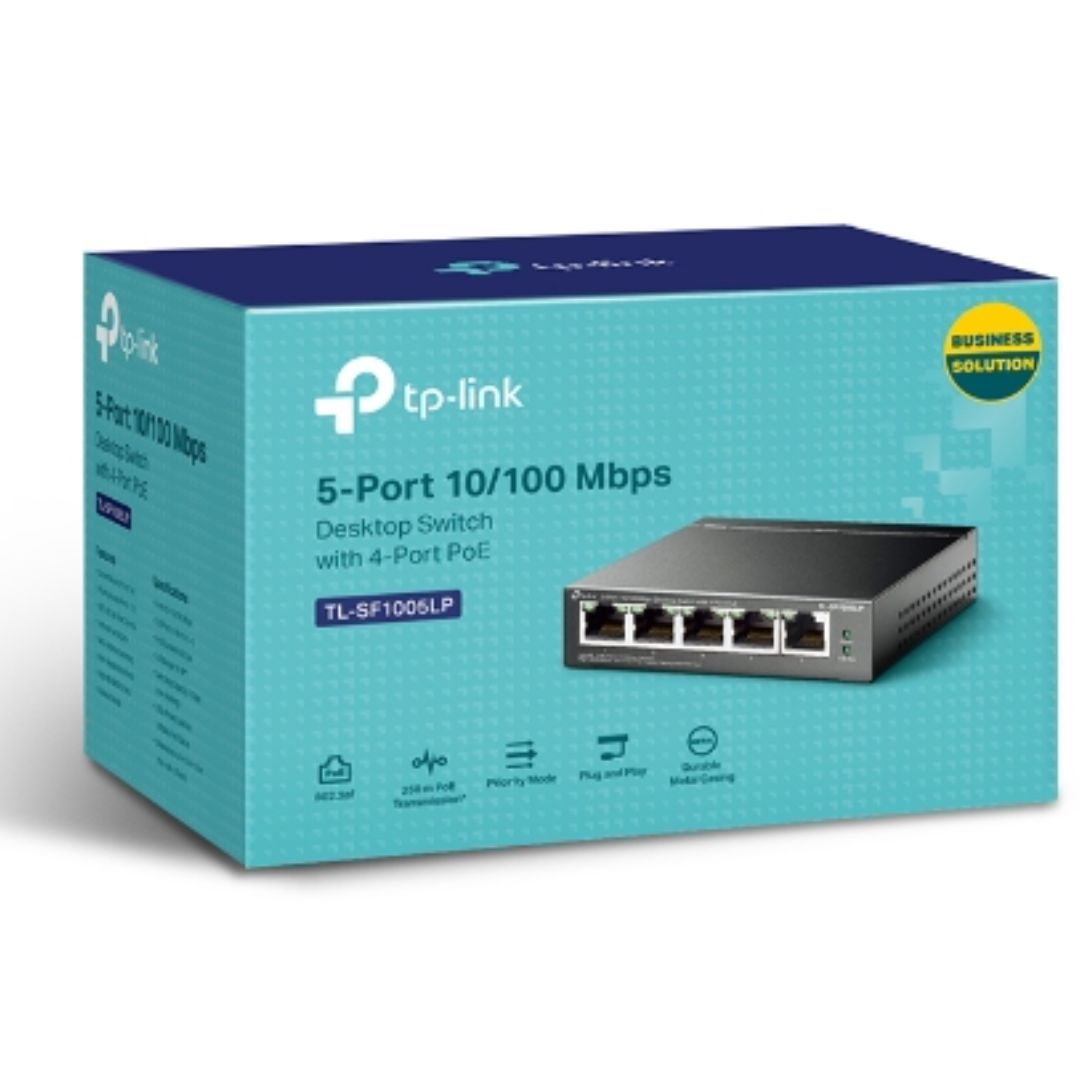

TP-Link TL-SF1005LP 5-Port 10/100Mbps Desktop Switch with 4-Port PoE 41W IEEE 802.3af compliant 1Gbps Switching
$59.00 ..inc GST
In stock
TP-Link TL-SF1005LP 5-Port 10/100Mbps Desktop Switch with 4-Port PoE 41W IEEE 802.3af compliant 1Gbps Switching
TP-Link TL-SF1005LP 5-Port 10/100Mbps Desktop Switch with 4-Port PoE
? 5?? 10/100 Mbps RJ45 ports
? 4?? PoE ports transfer data and power on individual cables
? Works with IEEE 802.3af compliant PDs
? Up to 250 m data and power transmitting range under Extend Mode**
? Priority Mode ensures high priority of ports 1??2 to guarantee the quality of sensitive application
? Supports PoE Power up to 41 W for all PoE ports*
? Plug and play with no configuration required
HARDWARE FEATURES
Interface ? 5?? 10/100 Mbps RJ45 Ports (Ports 1??4 support 802.3af PoE)
? AUTO Negotiation
? AUTO MDI/MDIX
Network Media ? 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
? EIA/TIA-568 100?? STP (maximum 100m)
? 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
? EIA/TIA-568 100?? STP (maximum 100m)
Fan Quantity Fanless
Physical Security Lock Yes
External Power Supply External Power Adapter (Output: 53.5 V DC / 0.81 A)
Packet Forwarding Rate 0.744 Mpps
PoE Ports (RJ45) ? Standard: 802.3 af compliant
? PoE Ports: Ports 1??4
? Power Supply: 41 W
Mac Address Table 2K
Jumbo Frame 2 KB
Switching Capacity 1 Gbps
Dimensions ( W x D x H ) 3.9??3.9??1.0 in (100??98??25 mm)
Max Power Consumption ? 1.9 W (220 V / 50 Hz, no PD connected)
? 47 W (220 V / 50 Hz, with 41 W PD connected)
Max Heat Dissipation ? 6.48 BTU/h(no PD connected)
? 160.27 BTU/h(with 41 W PD connected)
SOFTWARE FEATURES
Transmission Method Store-And-Forward
Advanced Functions ? Compatible With IEEE 802.3af/at Compliant PDs
? Extend Mode Button (Ports 1??4)
? Priority Mode Button (Ports 1??2)
? Mac Address Auto-Learning And Auto-Aging
? IEEE802.3x Flow Control For Full-Duplex Mode and Backpressure for Half-Duplex Mode
OTHERS
Certification FCC, CE, RoHS
Package Contents ? TL-SF1005LP
? Power Adapter
? Installation Guide
Environment ? Operating Temperature: 0??40 ? (32??104 ??)
? Storage Temperature: -40??70 ? (-40??158 ??)
? Operating Humidity: 10??90% RH non-condensing
? Storage Humidity: 5??90% RH
| Weight | 0.74 kg |
|---|---|
| Dimensions | 198 × 122 × 132 mm |
| Warranty | 60 |
| Manufacturers Code | TL-SF1005LP |
| Manufacturer |
