TP-Link TL-SG1210MPE 10-Port Gigabit Easy Smart Switch with 8-Port PoE+PORT: 8?? Gigabit PoE+ Ports, 2x Gigabit Non-PoE Ports, 1?? Combo Gigabit SFP S

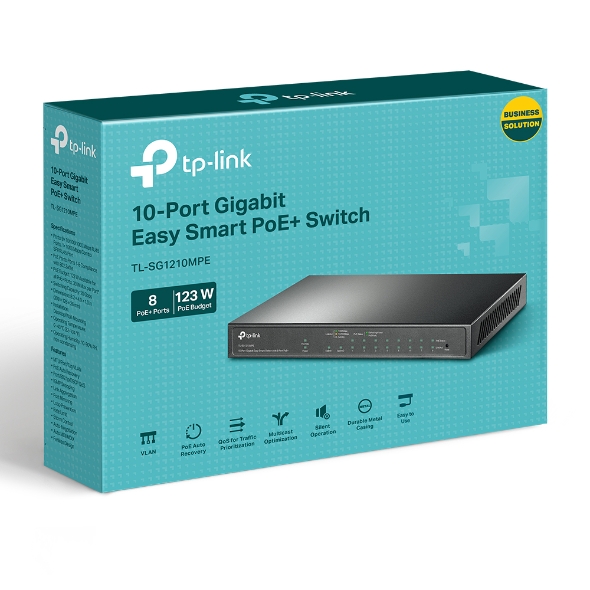

TP-Link TL-SG1210MPE 10-Port Gigabit Easy Smart Switch with 8-Port PoE+

ƒ?› 9?? gigabit RJ45 ports and 1?? combo gigabit SFP/RJ45 port
ƒ?› Equipped with eight 802.3af/at PoE+ ports with up to 30 W for each port, the switch can transfer data and power via one single cable
ƒ?› Supports PoE power up to 123 W for all PoE ports*
ƒ?› Provides network monitoring, traffic prioritisation, VLAN features, and PoE Auto Recovery
ƒ?› Simple network set-up on top of plug-and-play connectivity
ƒ?› Web-based user interface and Easy Smart Configuration Utility simplify configuration
ƒ?› Fanless design lowers energy consumption and eliminates operating noise

HARDWARE FEATURES
Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af,
IEEE 802.3x, IEEE 802.1q, IEEE 802.1p, IEEE 802.3at, IEEE 802.3z
Interface 9?? 10/100/1000 Mbps RJ45 Ports
1?? 1000 Mbps Combo SFP/RJ45 Port
AUTO Negotiation/AUTO MDI/MDIX
Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100?? STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100?? STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100?? STP (maximum 100m)
Fan Quantity Fanless
Power Supply External Power Adapter (Output: 53.5 VDC/2.43 A)
PoE Ports (RJ45) Standard: 802.3 af/at compliant
PoE Ports: Port 1- Port 8
PoE Power Budget: 123 W
Dimensions ( W x D x H ) 8.2 ?? 4.9 ?? 1.0 in (209 ?? 126 ?? 26 mm)
Max Power Consumption 7.66 W (220V / 50Hz with no PD connected)
141.54 W (220V / 50Hz with 123 W PD connected)
Max Heat Dissipation 26.12 BTU/h (220V / 50Hz with no PD connected)
482.65 BTU/h (220V / 50Hz with 123 W PD connected)
PERFORMANCE
Switching Capacity 20 Gbps
Packet Forwarding Rate 14.88 Mpps
MAC Address Table 4 K
Jumbo Frame 16 KB
SOFTWARE FEATURES
Quality of Service Support Port-Based/802.1p/DSCP priority
Support 4 priority queues
Rate Limit
Storm Control
L2 Features IGMP Snooping V1/V2/V3
Static Link Agg
