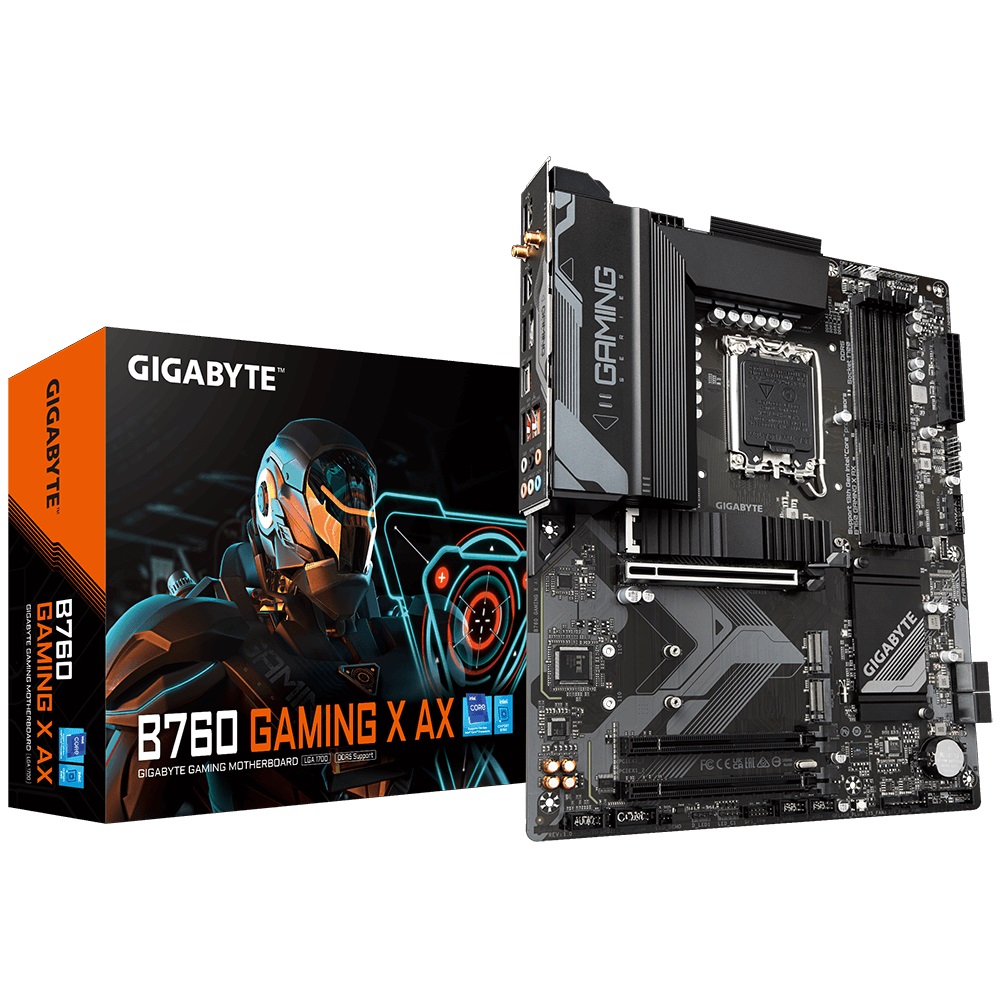

Gigabyte B760 Gaming X AX Intel LGA 1700 ATX Motherboard, 4x DDR5 ~128GB, 3x PCI-E x16, 3x M.2, 4x SATA, 2x USB 3.2, 1x USB-C, 5x USB 2.0
Features:
Intel?? Socket LGA 1700‹¬?Support 13th and 12th Gen Series Processors
Unparalleled Performance‹¬?Hybrid 8+1+1 Phases Digital VRM Solution
Dual Channel DDR5‹¬?4*DIMMs XMP Memory Module Support
Next Generation Storage‹¬?3*PCIe 4.0 x4 M.2 Connectors
Advanced Thermal Design & M.2 Thermal Guard ‹¬?To Ensure VRM Power Stability & M.2 SSD Performance
EZ-Latch‹¬?PCIe 4.0×16 Slot with Quick Release Design
Fast Networks‹¬?2.5GbE LAN & Wi-Fi 6E 802.11ax
Extended Connectivity‹¬?Front USB-C?? 10
Specification:
CPU
LGA1700 socket: Support for the 13th and 12th Generation Intel?? Coreƒ?›, Pentium?? Gold and Celeron?? Processors
L3 cache varies with CPU
(Please refer ‘CPU Support List’ for more information.)
Chipset
Intel?? B760 Express Chipset
Memory
Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules
4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Onboard Graphics
Integrated Graphics Processor-Intel?? HD Graphics support:
1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz
* Support for DisplayPort 1.2 version and HDCP 2.3
1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
* Support for HDMI 2.0 version and HDCP 2.3.
Expansion Slots
3 x PCI Express x16 slot
Back Panel Connectors
1 x USB 3.2 Gen 2 Type-A port (red)
1 x USB Type-C?? port, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 port
5 x USB 2.0/1.1 ports
2 x SMA antenna connectors (2T2R)
