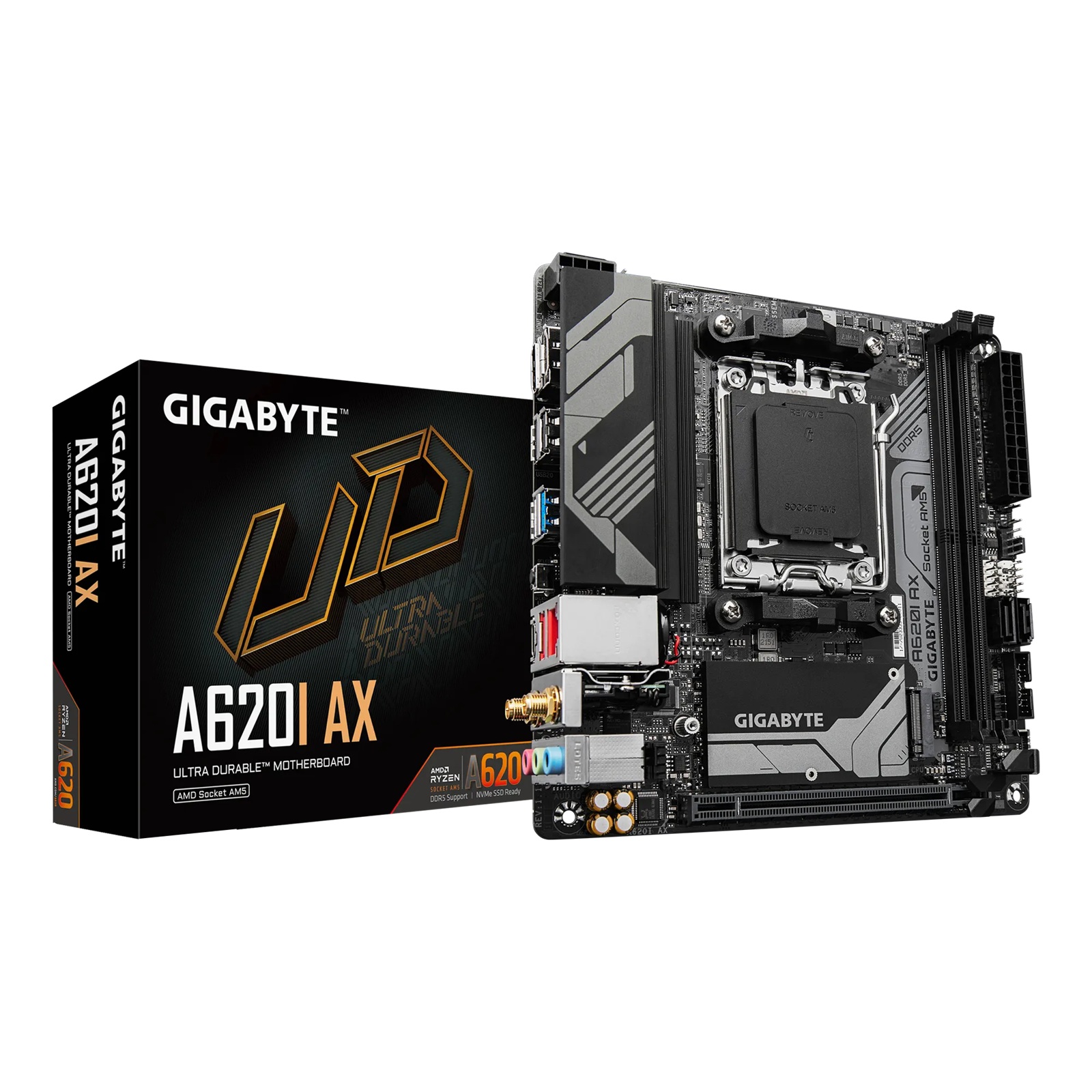

Gigabyte M/B A620I AX 1.0, AMD AM5, 2 x DDR5 up to 128 GB, 1 x HDMI, 1 x PCI Express x16, 1 x M.2, 2 x SATA, 4x USB 3.2

Gigabyte M/B A620I AX 1.0, AMD AM5, 2 x DDR5 up to 128 GB, 1 x HDMI, 1 x PCI Express x16, 1 x M.2, 2 x SATA, 4x USB 3.2

CPU
AMD Socket AM5, support for: AMD Ryzenƒ?› 7000 / Ryzenƒ?› 8000 / Ryzenƒ?› 9000 Series Processors
(Please refer ‘CPU Support List’ for more information.)

Chipset
AMD A620

Memory
Support for DDR5 6400(OC)/6200(OC)/6000(OC)/5600(OC)/5200/4800/4400 MT/s memory modules
2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for AMD EXtended Profiles for Overclocking (AMD EXPOƒ?›) and Extreme
Memory Profile (XMP) memory modules
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to ‘Memory Support List’ on GIGABYTE’s website for more information.)

Onboard Graphics
Integrated Graphics Processor with AMD Radeonƒ?› Graphics support:
– 1 x DisplayPort, supporting a maximum resolution of 3840×2160@144 Hz
* Support for DisplayPort 1.4 version.
– 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
** Support for native HDMI 2.1 TMDS compatible ports.
(Graphics specifications may vary depending on CPU support.)

Expansion Slots
1 x PCI Express x16 slot, integrated in the CPU:
– AMD Ryzenƒ?› 7000 Series Processors support PCIe 4.0 x16 mode
– AMD Ryzenƒ?› 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
– AMD Ryzenƒ?› 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
* The PCIEX16 slot can only support a graphics card or an NVMe SSD.

Storage Interface
1 x M.2 connector, integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs:
– AMD Ryzenƒ?› 7000 Series Processors support PCIe 4.0 x4/x2 SSDs
– AMD Ryzenƒ?› 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
– AMD Ryzenƒ?› 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
2 x SATA 6Gb/s connectors
RAID 0 and RAID 1 support for NVMe SSD storage devices
RAID 0 and RAID 1 support for SATA storage devices

USB
CPU:
– 1 x USB Type-C?? port on the back panel, with USB 3.2 Gen 1 support
– 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
– 1 x USB 2.0/1.1 port on the back panel
Chipset:
– 1 x USB Type-C?? port with USB 3.2 Gen 1 support, available through the internal USB header
– 3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header)
– 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
