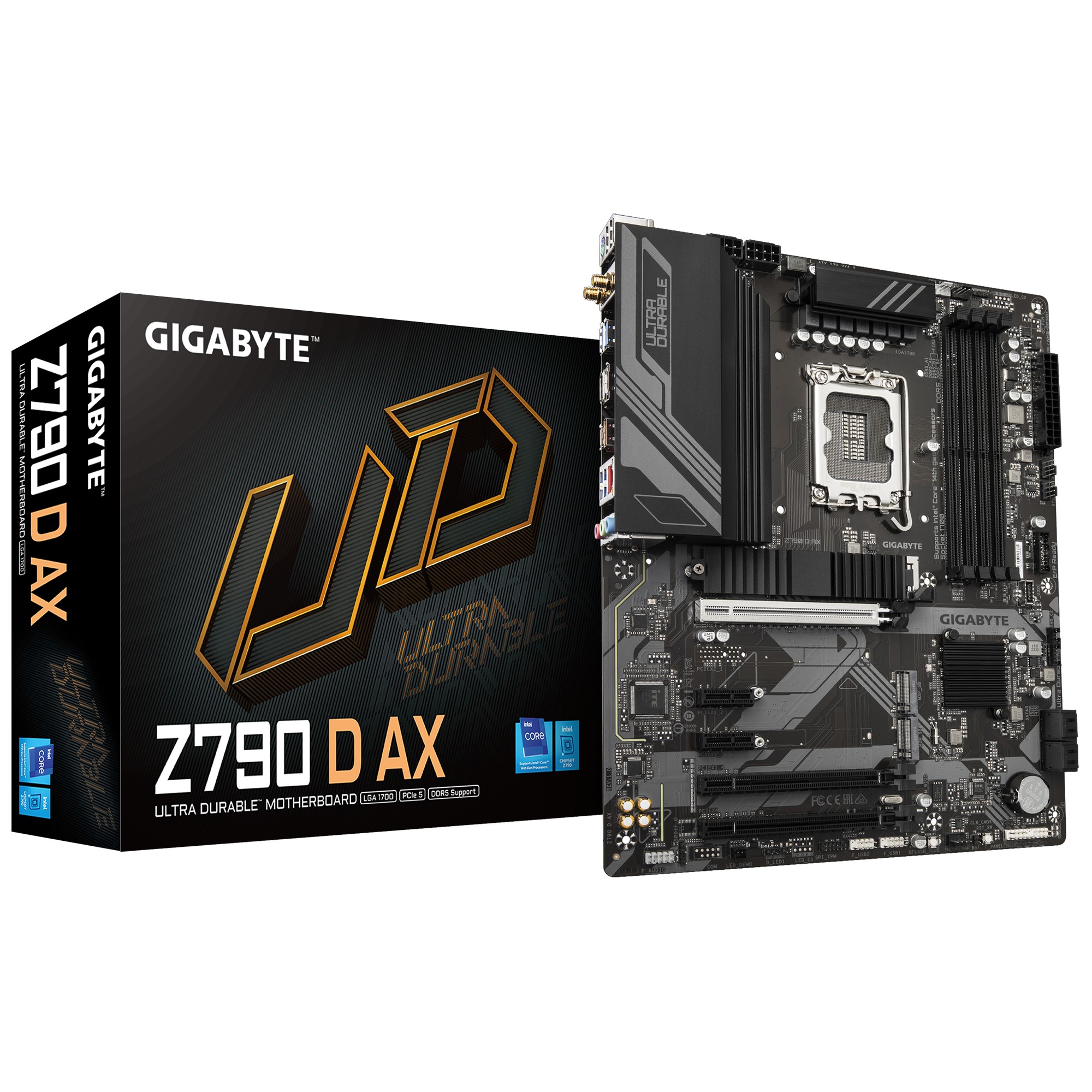

Gigabyte Z790 D AX Intel LGA 1700 ATX Motherboard, 4x DDR5 ~192GB, 2x PCI-E x16, 3x M.2, 6x SATA, 6x USB 3.2, 2x USB-C,2x USB 2.0

Gigabyte Z790 D AX Intel LGA 1700 ATX Motherboard, 4x DDR5 ~192GB, 2x PCI-E x16, 3x M.2, 6x SATA, 6x USB 3.2, 2x USB-C,2x USB 2.0

CPU
LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel?? Coreƒ?›, Pentium?? Gold and Celeron?? Processors
(Go to GIGABYTE’s website for the latest CPU support list.)
L3 cache varies with CPU

Chipset
Intel?? Z790 Express Chipset

Memory
14th and 13th Generation Intel?? Coreƒ?› i9/i7 Pocessors:
– Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600 / 5400 / 5200/ 4800/4400 MT/s memory modules
13th Generation Intel?? Coreƒ?› i5/i3 and 12th Generation Intel?? Coreƒ?›, Pentium?? Gold and Celeron?? Processors:
– Support for DDR5 4800/4400 MT/s memory modules
4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules

Onboard Graphics
Integrated Graphics Processor-Intel?? HD Graphics support:
– 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
** Support for native HDMI 2.1 TMDS compatible ports.
– 1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz
* Support for DisplayPort 1.2 version and HDCP 2.3

Storage Interface
CPU:
– 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
– 1 x M.2 connectors (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
– 1 x M.2 connectors (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB)
– 4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
RAID0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
