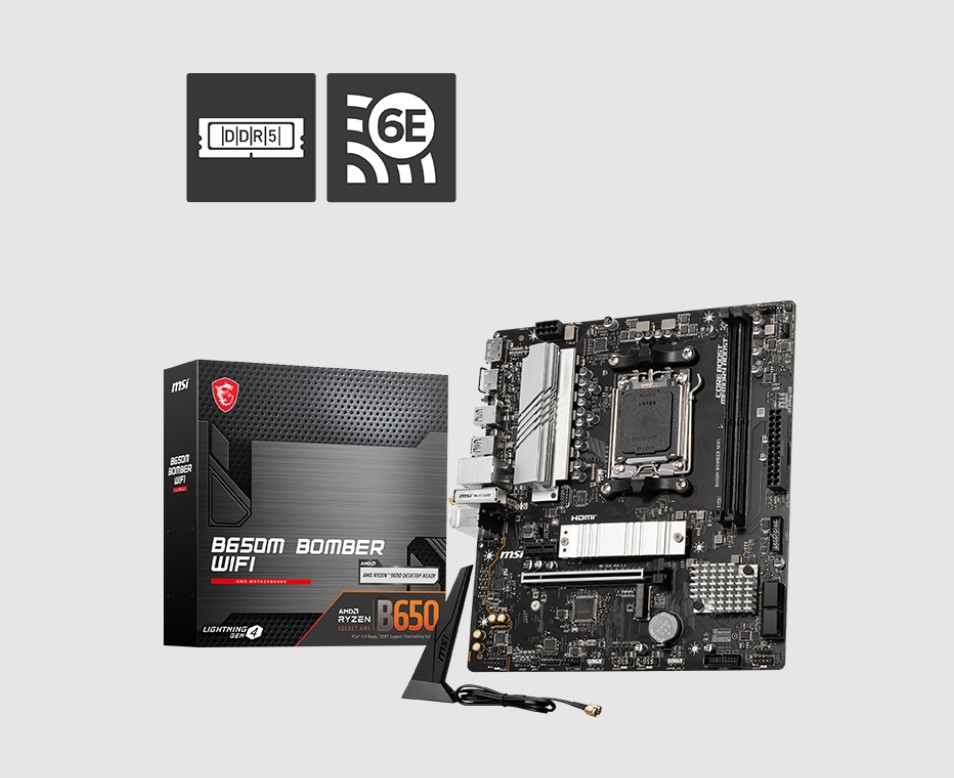

MSI B650M BOMBER WIFI AMD AM5 MATX Motherboard, 2x DDR5 ~128GB, 1x PCI-E x16, 2x M.2, 4x SATA, 6x USB 2.0
CHIPSET AMD B650
CPU SUPPORT Supports AMD Ryzenƒ?› 9000/ 8000/ 7000 Series Desktop Processors
Socket AM5
MEMORY 2x DDR5, Maximum Memory Capacity 128GB
Memory Support DDR5 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MT/s
Max. overclocking frequency:
ƒ?› 1DPC 1R Max speed up to 7800+ MHz
ƒ?› 1DPC 2R Max speed up to 6400+ MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports AMD EXPOƒ?›
ONBOARD GRAPHICS 1x HDMIƒ?›
1x DisplayPort
Support HDMITM 2.1, maximum resolution of 4K 60Hz*
Supports DP1.4, maximum resolution of 4K 60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
EXPANSION SLOT
1x PCI-E x16 slot
ƒ?› Supports x16 (For Ryzenƒ?› 9000/ 7000 Series processors)
ƒ?› Supports x8 (For Ryzenƒ?› 8700/ 8600/ 8400 Series processors)
ƒ?› Supports x4 (For Ryzenƒ?› 8500/ 8300 Series processors)
1x PCI-E x1 slot
PCI_E1 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E2 Gen PCIe 4.0 supports up to x16 (From CPU)
STORAGE 2x M.2 slot
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280 devices
M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280 devices
4x SATA 6G
ƒ?› The M2_2 slot will be unavailable when using Ryzenƒ?› 8500/ 8300 Series processor
USB 2x USB 2.0 (Rear)
4x USB 2.0 (Front)
3x USB 5Gbps Type A (Rear)
1x USB 5Gbps Type C (Rear)
4x USB 5Gbps Type A (Front)
PCB DIMENSION mATX
226mmx243.84mm
