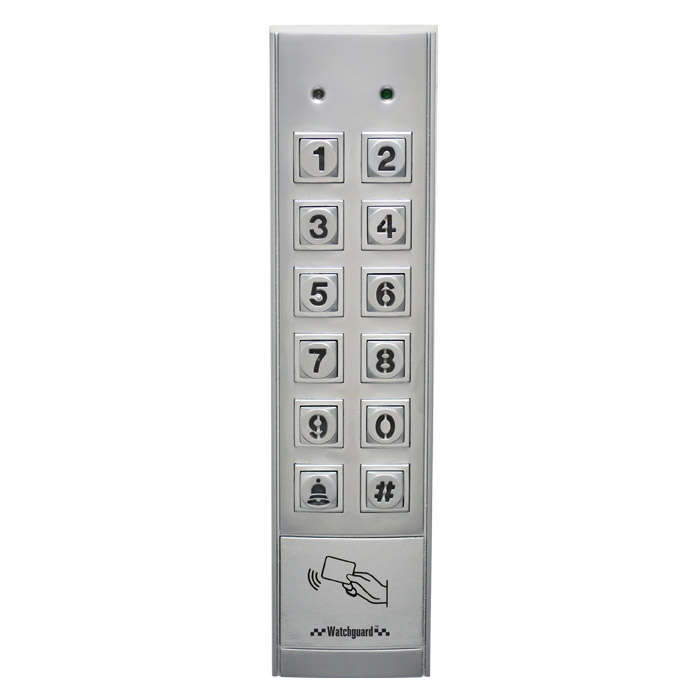

Standalone IP65 Access Reader/Keypad

$130.00 ..inc GST

In stock

ACRDR103

Buy it now
Brands:
SKU: ACRDR103

The ACRDR103 is a vandal resistant, zinc-alloy die cast, selfcontained, dual-level backlit access control reader/keypad designed to directly drive electric door locks. It is capable of accommodating up to 1000 user codes & RFID cards/keyfobs and is compatible with both fail-safe and failsecure locks. Cards & codes can be combined for multi-level authentication, visitor access can be programmed, daily operational hours can be set and the door lock striking timer is programmable for access customisation.

The ACRDR103 uses a solid-state switch for long service life and has an available relay contact to operate an external low power door chime. It also features a tamper switch and unauthorised access lock for vandal protection.

The ACRDR103 has a bi-directional data I/O bus, enabling use of up to 3 additional readers & split-decoder to be used.

The reader comes standard with 2 x 125KHz RFID cards.

*This reader is compatible with 125KHz RFID cards only (incompatible with 13.56MHz NFC cards).

Weight 0.6 kg
Dimensions 200 × 115 × 53 mm
Data I/O Bus

Access Lock Modes

Dimensions

Door Chime

Door Lock Control

Ingress Protection

Material & Finish

Maximum User Access

Operating Current

Operating Environment

Power Input

Solid State Door Lock

Tamper Switch

Weight
