Monitored Multi-Voltage Mortise Electric Door Strike

$156.25 ..inc GST

In stock

ACLOC105

Buy it now
Brands:
SKU: ACLOC105

The Watchguard ACLOC105 is a strong, mortise mount, electric door strike for use with access control systems. It features a durable stainless steel faceplate, door-latch and lock sensors for remote monitoring of lock status, and comes standard with mounting screws and voltage spike suppressing varistors. The ACLOC105 is easily convertible between fail-safe and fail-secure modes (default: fail-secure), and it can be powered via 12V/24V AC/DC as per site requirements.

Product features:
* Mortise mounted

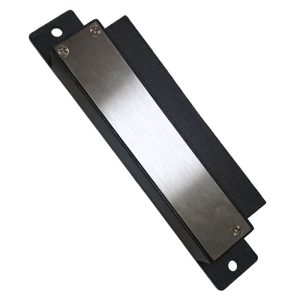

* Stainless steel faceplate
* Door Sensor
* Lock Sensor
* Keeper Sensor
* Built for new or existing installs – 12VDC/24VAC switchable

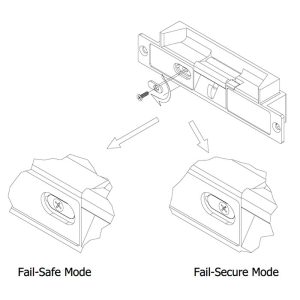

* Switchable between fail-secure & fail-safe

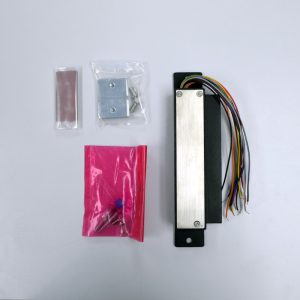

Includes:
1 x Door strike
2 x Strike plates
6 x Screws
2 x Varistors
1 x Installation manual
1 x Mounting template

Weight 0.62 kg

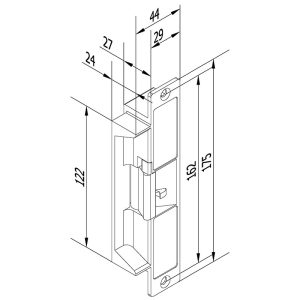

Dimensions 55 × 60 × 225 mm
Door Latch

Construction

Faceplate Dimensions

Keeper Depth

Lock Configuration

Lock Status Sensor

Overall Dimensions

Power Input

Type
