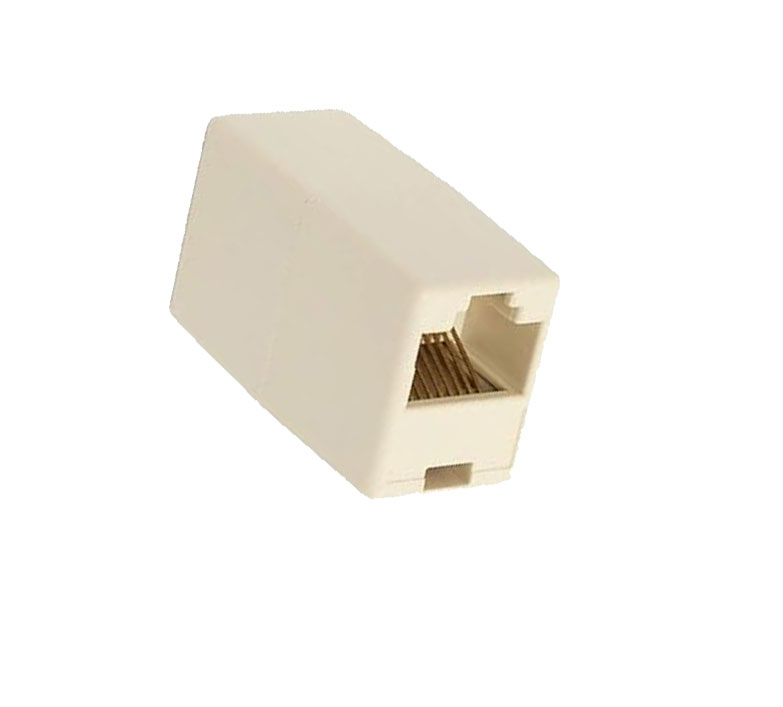

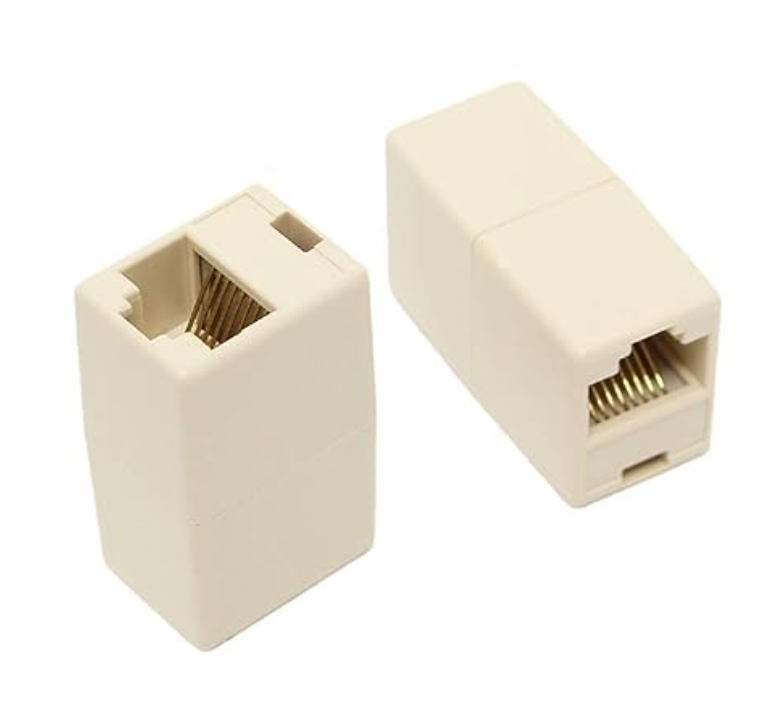

2-Piece Ethernet RJ45 Connector
Original price was: $3.95.$3.36Current price is: $3.36. ..inc GST
In stock
RJ45CJCAT62
The RJ45CJCAT62 Ethernet Connector is engineered to provide consistent, high-performance networking solutions. Designed for compatibility with Cat5, Cat5e, and Cat6 cables, it delivers reliable, fast and secure connections for residential and commercial applications. Built to industry standards, this connector ensures durability and optimal functionality in various networking scenarios.
Key Features:
? Rj45 modular plug, optimised for Ethernet networking applications.
? Fully compatible with Cat5, Cat5e, and Cat6 cables, supporting both solid and stranded wire configurations.
? Capable of supporting speeds up to 1Gbps, ensuring efficient and uninterrupted data transfer.
? Gold-plated 8P8C pins for enhanced conductivity, corrosion resistance, and long-term performance.
| Weight | 1 kg |
|---|---|
| Cable Compatibility | Cat5, Cat5e, Cat6, and Cat6a (works with both solid and stranded cables) |
| Bandwidth | Supports frequencies up to 500 MHz (Ideal for high-speed data transfer and networking) |
| Connector Dimensions | 21mm x 9mm x 10mm (L x W x H) |
| Connector Type | Gold-plated copper contacts for corrosion resistance and improved signal intergrity |
| Crimping Tool Compatibility | Compatible with standard RJ45 crimping tools for accurate and easy installation |
| Data Rate Support | Supports up to 10Gbps Ethernet speeds (Ideal for Gigabit and 10Gbps networks) |
| Dielectric Strength | Rated for 1000V AC for 60 seconds (Ensures safe, reliable operation in networking environments) |
| Durability | Rated for up to 750 plug-in/plug-out cycles without performance degradation |
| Electrical Performance | Contact resistance: <20mê |
| Housing Material | Clear polycarbonate or ABS plastic housing for impact resistance and wire alignment visability |
| Insulation Resistance | >500Mê at 500v DC |
| Latch Design | Features a snag-free latch design to prevent breakage during installation and handling |
| Operating Temperature Range | -40øC to 85øC (Suitable for indoor and outdoor installations) |
| Pin Configuration | Precision 8 gold-plated pins for stable and reliable signal transmission |
| Product Type | RJ45 Modular Plug Ethernet Cable Connector |
| RoHS Compliance | Free from hazardous substances, enduring environmental safety |
| Sheilding | Unsheilded (UTP) – Ideal for standard Ethernet networking applications |
| Storage Temperature Range | -40øC to 100øC |
| Wire Gauge Compatibility | Compatible with 23 AWG to 26 AWG wire (Standard and stranded wire) |
| Wire Insertion Guide | Includes staggered alignment grooves for proper wire placement and easy termination |
