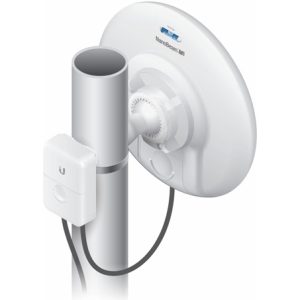

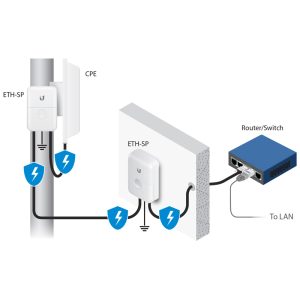

The VSETH-SP is engineered to protect any Power?over?Ethernet (PoE) or non?PoE device with connection speeds of up to 1 Gbps. This is a great protection for outdoor POE devices, when damaging electrostatic discharge attacks and surges are diverted to the VSETH-SP and safely discharged into the ground, so network devices are protected.
| Weight | 0.11 kg |
|---|---|
| Dimensions | 35 × 65 × 95 mm |
| DC Spark-Over Voltage | 90V @ 100V/s |
| Data Line Protection | RJ45 10/100/1000 Ethernet |
| Dimensions | 91 x 61 x 32.5 mm |
| Discharge Current | 5kA (Maximum), 0.5kA (Normal) |
| ESD/EMP Protection | Absorbing Transient Current with Response to Surge Voltage from 100V/s to 1kV/?s |
| IEEE 802.3af PoE Support | Yes |
| Interface Connections | (2) RJ45 Female Connectors |
| Maximum Capacitance | 1.0 pF @ 1 MHz |
| Maximum Impulse Spark-over Voltage | 700V @ 1kV/?s |
| Maximum Insulation Resistance | 1G ohm @ 50V |
| Operating Humidity | 10 to 90% Noncondensing |
| Operating Temperature | -30 to 65° C |
| Shock and Vibration Certification | ETSI300-019-1.4 Standard |
| Weight | 80 g |
