HDCVI to HDCVI / HDMI / VGA / Composite Video Converter
$133.86 .. inc GST
In stock
VSCVIDECODER

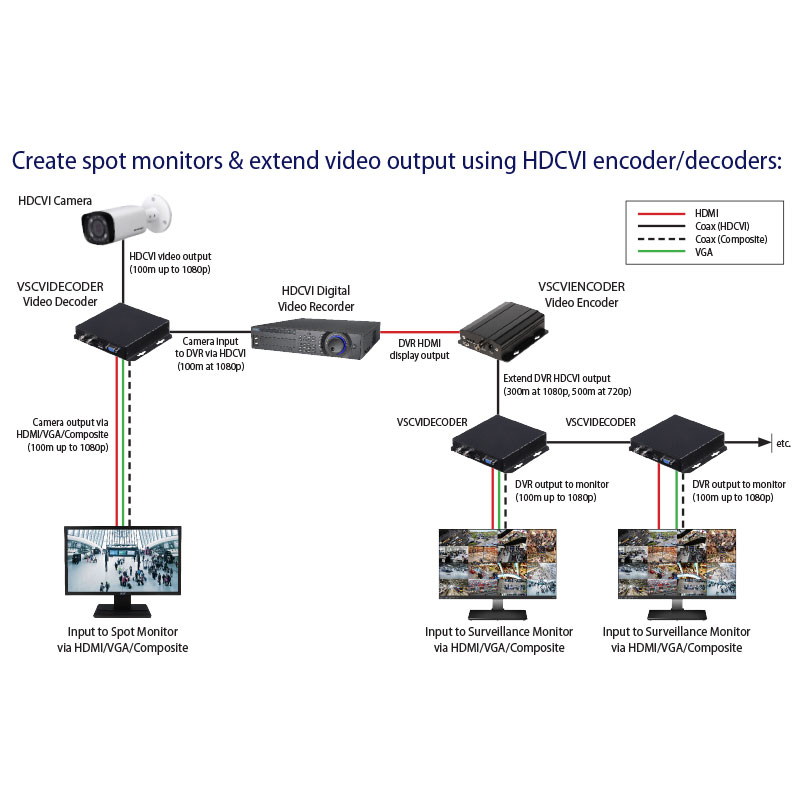

Securview Victory Series™ HDCVI to HDMI/VGA/Composite Video Converter converts and outputs HDCVI video signal to HDMI, VGA and Composite. It features HDCVI input/output via BNC, making it ideal for extending the display of your HDCVI surveillance camera or recorder to multiple monitors over coaxial cable.
Product features:
• HDCVI (BNC) input to HDMI / VGA / Composite (BNC) / HDCVI (BNC) outputs
• Automatic adjustment of the output signal to the input signal
• Real-time transmission, lossless, uncompressed video transmission
• Supports 1080p / 720p resolutions (HDCVI / HDMI / VGA)
• Supports composite video (CVBS), PAL / NTSC auto detection
• RS485 interface, supports data rate 2400b/s, 4800b/s, 9600b/s, 115200b/s
• 12VDC 1.25A power supply / 162 x 160 x 30mm / 0.58kg
• Wall mount design, dust tight chassis / -10° ~ 55°C operating temp.
| Weight | 0.2 kg |
|---|---|
| Dimensions | 30 × 137 × 162 mm |
| Dial Switch | 2 x Dial Switches control Baud rate: 2400b/s, 4800b/s, 9600b/s, 115200b/s |
| Category | HDCVI Surveillance |
| Dimensions | 162 x 136 x 30mm |
| Input & HDCVI Output Transmission Distance | 1080p/720p: Up to 100m (75-5 coaxial) |
| Input Ports | HDCVI (BNC) |
| Installation | Wall Mount |
| LED Status Indicators | Power / Video / Data |
| Operating Environment | -10 ~ 55°C / 10 ~ 90%RH |
| Output Ports | HDMI, VGA, Composite (BNC), HDCVI (BNC) |
| Power Consumption | ?8W |
| Power Supply | 12VDC 2A |
| Supported Resolutions | 720p / 1080p @ HDCVI / HDMI / VGA / Composite Video (Composite) – PAL/NTSC auto detection |
| Weight | 0.2kg |
