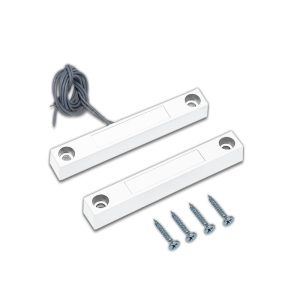

The RSW-M1 is a heavy duty hard wired reed switch, designed for window and door applications.
Product features:
• Heavy duty magnetic contact switch
• Large magnet sensor gap, up to 50mm
• Normally closed (NC) reed switch output
• 10W maximum contact rating (up to 100V, 0.5A)
• 250mm sensor leads (22 AWG / Ø0.64mm)
• Robust casing of zinc alloy construction
• Surface Mounted, screws included
• Dimensions 106 x 16 x 16mm
Available in silver, white or brown casing.
| Weight | 0.04 kg |
|---|---|
| Dimensions | 20 × 30 × 90 mm |
| Dimensions | 160mm x 16mm x 16mm |
| Contact | N/C |
| Gap | 50mm |
| Max Current | 0.5A |
| Max Rating | 10W |
| Max Voltage | 100VDC |
| Type | Reed Switch |
