VSIP4MPPHC

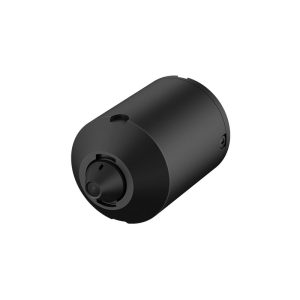

The VSIP4MPPHC is a 4.0MP IP pinhole camera lens for the VSIP4MPPHM designed for discreet and covert surveillance applications, such as controlled ingress points, shelf surveillance, in-vehicles, ATMs and more.
Camera features:
• Stream up to 4.0MP (2688 x 1520) at 25fps
• 2.8mm fixed lens with 83° viewing angle
• Colour at 0.02 Lux minimum illumination
• Compact Ø31 x 49mm design
Requires the VSIP4MPPHM main box.
| Weight | 0.05 kg |
|---|---|
| Dimensions | 147 × 182 × 70 mm |
| Audio Interface | – |
| Alarm Interface | – |
| Bit Rate | – |
| Bit Rate Control | – |
| Camera Type | Pinhole |
| Category | Network Surveillance |
| Day/Night | – |
| Detect (25px/m) | 61m |

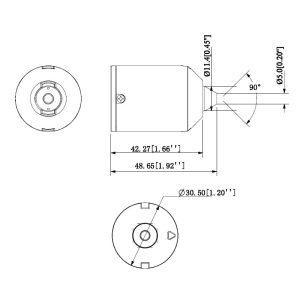

| Dimensions | Ø31 x 49mm |
| Edge Storage | – |
| Effective Pixels | 2688 (H) x 1520 (V) |
| ePoE | No |
| Ethernet | – |
| Field of View | Horizontal: 83.4°, Vertical: 44.9° |
| Focus | Detect: 61m / Observe: 24m / Recognise: 12m / ID: 6m |
| Frame Rate (Main) | – |
| Frame Rate (Sub) | – |
| Frame Rate (Third) | – |
| Gain Control | – |
| Housing | Metal |
| Identify (250px/m) | 6m |
| Image Sensor | 1/2.7” 4.0 Megapixel Progressive Scan CMOS |
| Infrared | No |
| Infrared System | N/A |
| Ingress Protection | N/A |
| Intelligent Functions | – |
| Interoperability | – |
| IVS | No |
| Lens / Iris | 2.8mm F2.4 Fixed Lens |
| Lens Type | Fixed |
| Lighting Compensation | – |
| Max. Resolution | 4.0 Megapixel |
| Max. User Access | – |
| Min Illumination | 0.02 Lux at F2.4 (Colour) / 0.04 Lux at F2.4 (B&W) |
| Net Weight | 0.40kg |
| Noise Reduction | – |
| Observe (63px/m) | 24m |
| Operating Conditions | -30° ~ +60° C / Less than 95% RH |
| Pan/Tilt/Rotation | N/A |
| Picture Control | – |
| Power Consumption | – |
