Name: Pinhole Series 4.0MP Pinhole Camera Main Box
SKU: VSIP4MPPHM
Availability: InStock

Pinhole Series 4.0MP Pinhole Camera Main Box

..inc GST

In stock

VSIP4MPPHM

Buy it now

Brands: VIP Vision

SKU: VSIP4MPPHM

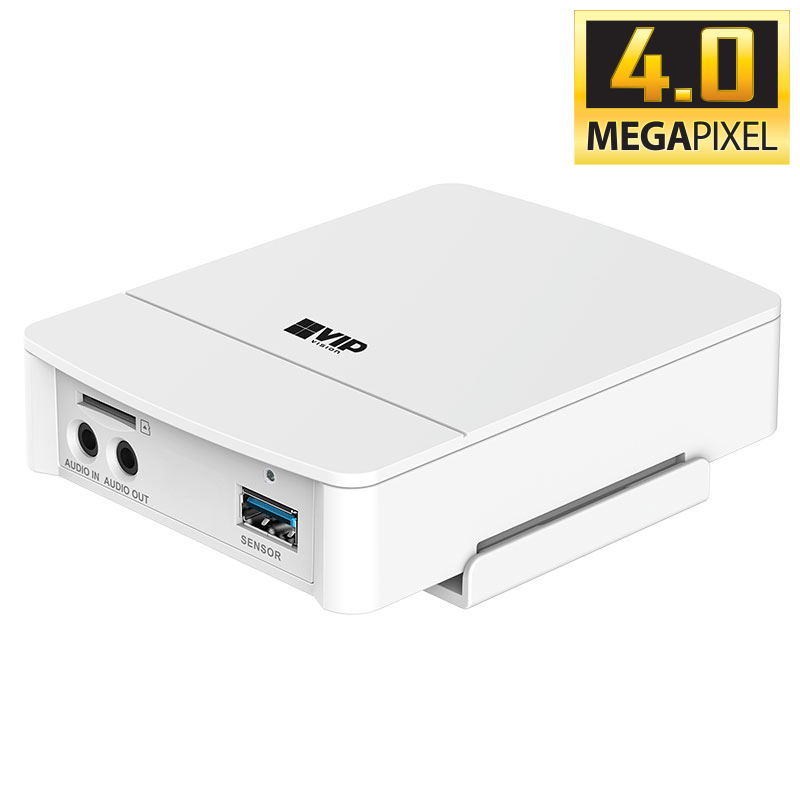

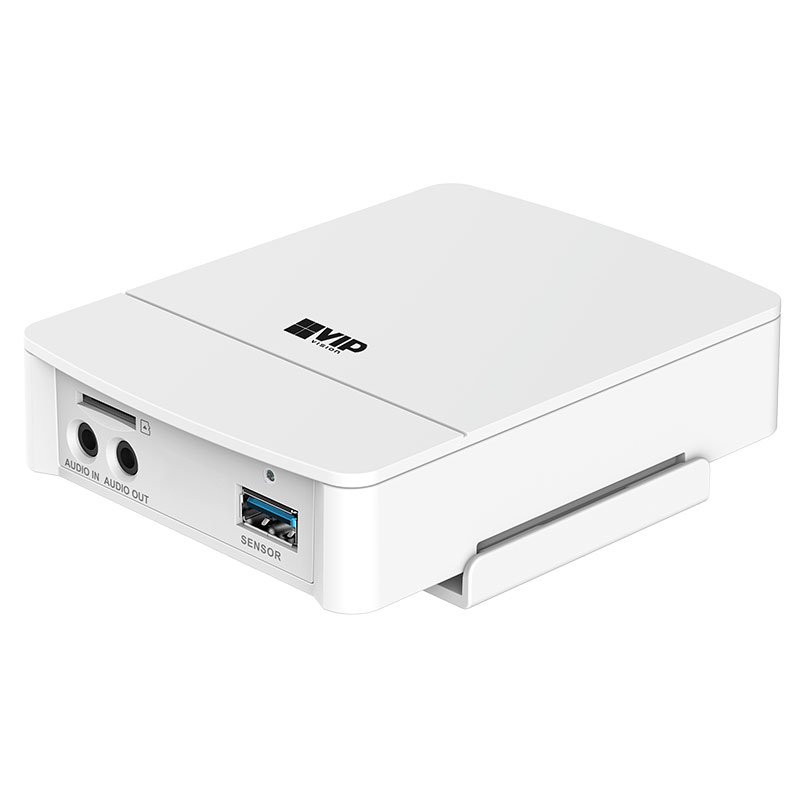

The VSIP4MPPHM is a pinhole camera main control unit, requiring a VIP Vision pinhole camera lens. Performs discreet surveillance operations at beyond HD resolution, with true WDR and backlight/highlight compensation to ensure a clear image.

Camera features:
? Stream up to 4.0MP (2688 x 1520) at 25fps
? 2.8mm fixed lens with 83ø viewing angle
? Backlight/highlight compensation with true WDR (120dB)
? Day/night (electronic), 3D noise reduction & auto white balance
? Smart detection support including face detection
? MicroSD card slot for at-the-edge recording, up to 128GB
? Power via 12VDC or Power over Ethernet (802.3af)

Requires the VSIP4MPPHC camera lens.

Show More Show Less

Weight	0.3 kg
Dimensions	147 × 182 × 70 mm
Audio Interface	1 Input, 1 Output / Compression: G.711a, G.711mu, G.726, AAC
Alarm Interface	2 Inputs / 2 Output
Bit Rate	H.265: 14 ~ 9984Kbps / H.264: 24 ~ 10240Kbps
Bit Rate Control	Constant bit rate (CBR) / Variable bit rate (VBR)
Camera Type	Pinhole
Category	Network Surveillance
Day/Night	Auto (Electronic) / Colour / B&W
Detect (25px/m)	56m
Dimensions	110 x 83 x 24mm
Edge Storage	MicroSD Card (up to 128GB) / NAS / Local PC
Effective Pixels	2688 (H) x 1520 (V)
ePoE	No
Ethernet	RJ45 (10/100 Base-T)
Field of View	–
Focus	–
Frame Rate (Main)	4.0MP (1 ~ 25fps)
Frame Rate (Sub)	D1 (1 ~ 25fps)
Frame Rate (Third)	720p (1 ~ 25fps)
Gain Control	Auto / Manual
Housing	Metal
Identify (250px/m)	5m
Image Sensor	–
Infrared	No
Infrared System	–
Ingress Protection	N/A
Intelligent Functions	Face Detection, Tripwire, Intrusion, Abandoned/Missing Object, Motion Detection (4 Zone), Region of Interest (4 Zone), Privacy Masking (4 Zone)
Interoperability	ONVIF / PSIA / CGI
IVS	Yes
Lens / Iris	–
Lens Type	Fixed
Lighting Compensation	BLC / HLC / WDR (120dB)
Max. Resolution	4.0 Megapixel
Max. User Access	10 Users / 20 Users
Min Illumination	–
Net Weight	0.21kg
Noise Reduction	3D DNR
Observe (63px/m)	22m
Operating Conditions	-30ø ~ +60ø C / Less than 95% RH
Pan/Tilt/Rotation	N/A
Picture Control	Mirror / Flip (0ø, 90ø, 180ø, 270ø)
Power Consumption	<6W
