Residential PoE IP Intercom Door Station
Original price was: $253.64.$228.27Current price is: $228.27. ..inc GST
In stock
INTIPRDSG3

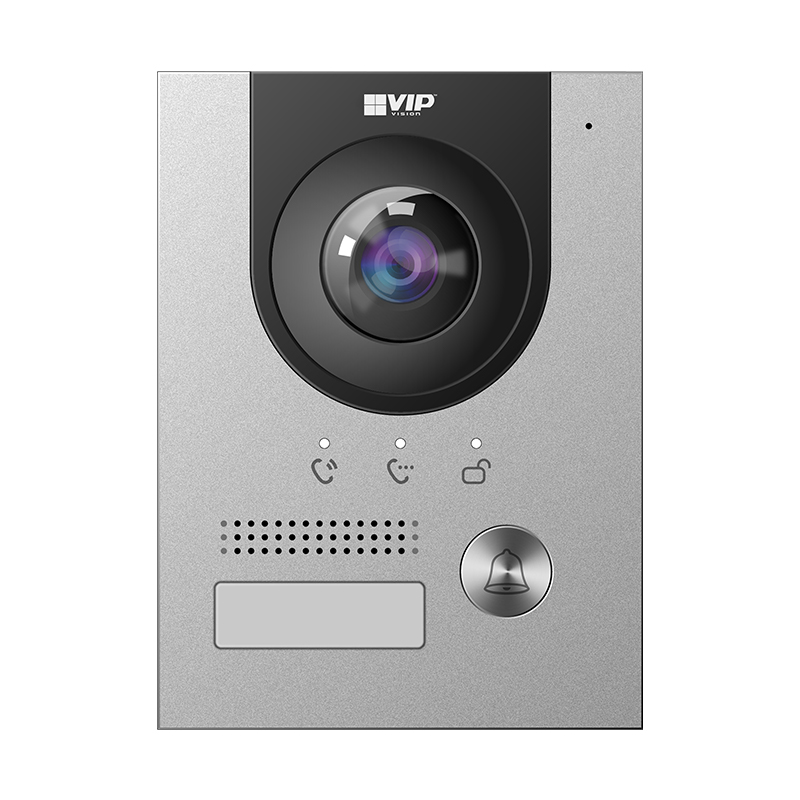

The INTIPRDSG3 is a single channel video intercom solution ideal for homes and single-premises buildings. This door station features a 2.0MP camera, all in a stylish aluminium weather and vandal resistant body.
Product features:
? 1/2.5?? 2.0MP 1.9mm lens camera with 169ø FOV
? Built-in microphone and speaker for 2-way talk
? Connect with intercom monitor(s) via Ethernet
? Alarm and RS485 input/output relays
? Intuitive, easy-to-use interface
? Weather and vandal resistant IP55/IK07 aluminium body
? Power via 48VDC or Power over Ethernet (802.3af)
? Flush and surface mount installation options
* We recommended that Door Stations are mounted in a sheltered location, not exposed directly to weather, as only the front plate is weather resistant.
* When installing the Door Station, apply outdoor silicone sealant between the Door Station & the wall, & seal the hole that has been created for the cable to prevent water ingress. If using a mounting box, ensure the box is sealed, & the included waterproof rubber seals are used when installing the screws.
| Weight | 0.5 kg |
|---|---|
| Dimensions | 60 × 120 × 150 mm |
| Audio / 2-Way Talk | Omni-directional Microphone & Embedded Loudspeaker for 2-way talk |
| App Connection | QR Code |
| Button Illumination | None |
| Camera System | 1/2.5??, 2.0 Megapixel CMOS camera with 1.9mm lens (Horizontal FoV: 169ø), WDR |
| Card Support | N/A |
| Construction | Aluminium |

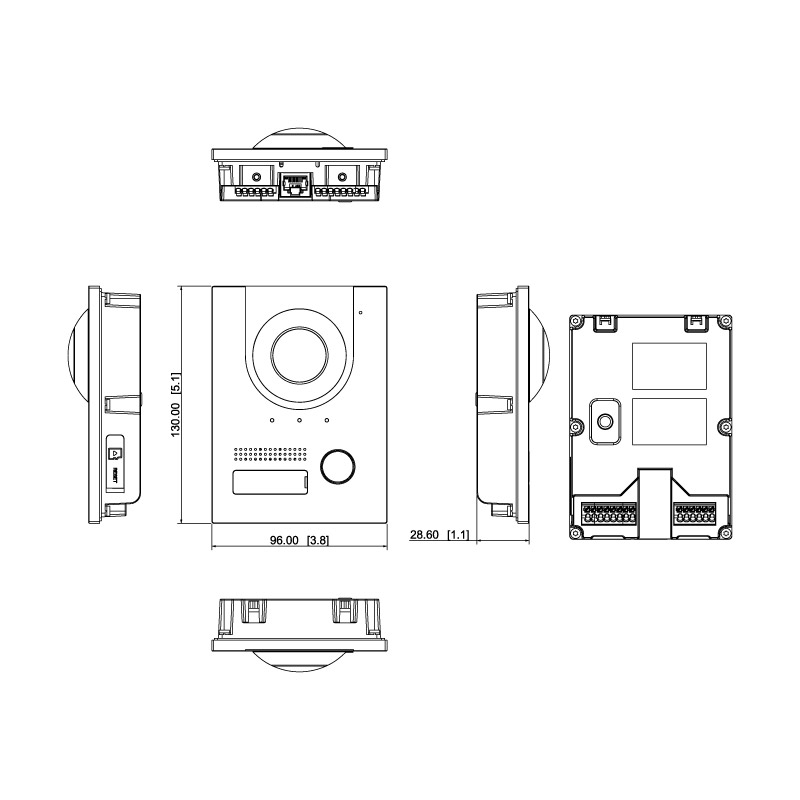

| Dimensions | 130 x 96 x 29mm |
| Ethernet / Network | N/A |
| Ingress Protection | IP55 |
| Input / Output | 1 x alarm input / 1 x alarm output / 1 x RS485 |

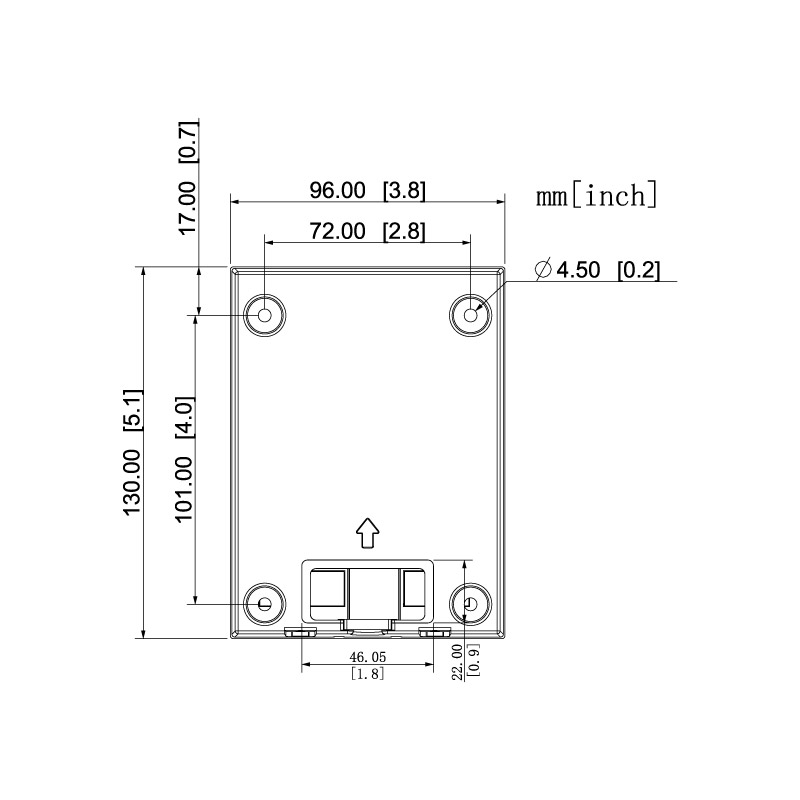

| Installation Options | Supports surface box and flush box mount |
| Internal MicroSD Slot | Yes, up to 64GB |
| Keypad | N/A |
| Low-Light Application | Infrared |
| Main Processor | Embedded Microprocessor |
| Max. Additional Door Stations | 20 |
| Max. Indoor Monitors | 10 |
| Power Consumption | <12W |
| Power Input | 48VDC 1A / PoE (802.3af) |
| Series | G Series |
| Tamper Detection | Yes |
| Vandal Resistant | IK07 |
| Weight | 0.35kg |
