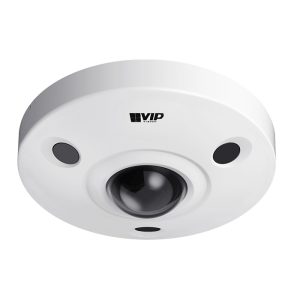

Specialist AI Series 12.0MP People Counting 360° Fisheye Dome

$1,280.42 ..inc GST

In stock

VSIPFE-12IR-I

Buy it now
Brands:
SKU: VSIPFE-12IR-I

The VSIPFE-12IR-I performs the duties of multiple cameras, with the powerful benefit of AI-powered people counting, queue management and heat mapping. Receive alerts when a certain number of people enter an area with queue management or set up heat map to observe the amount of time spent in areas.

Camera features:
• Stream up to 12.0MP (4000 x 3000) at 25fps
• Circular fisheye lens with 360° viewing angle

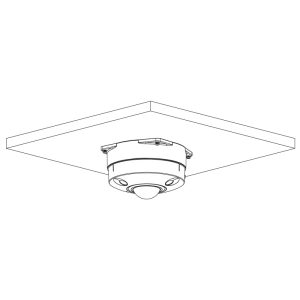

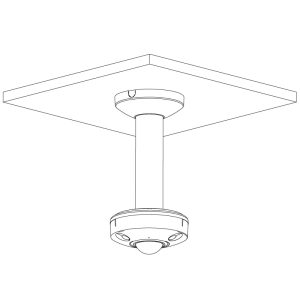

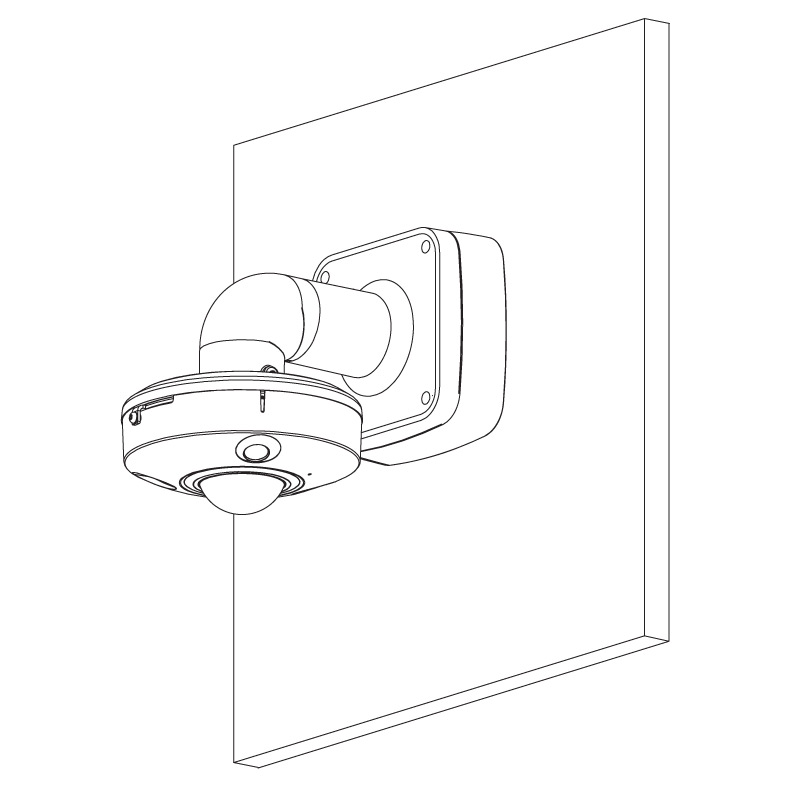

• Dewarp modes (NVR64ULT8S, NVR32ULTNPV2, NVR32PRO16P3, NVR24PRO6, NVR16PRO7, NVR8PRO7) for ceiling, floor & wall mounting
• Virtual PTZ, panorama, & camera split dewarp modes
• Up to 10m infrared range; true day/night (auto ICR)
• Set up AI-enhanced people tracking for real-time alerts, statistics and business analytics
• Heat map, queue management & regions of interest
• MicroSD card slot for edge recording up to 128GB
• IP67 weather & IK10 vandal resistant housing

* Check the Supported NVR specification to see if Fisheye Dewarping is supported by that NVR model

Weight 1.7 kg
Dimensions 168 × 340 × 168 mm
Audio Interface

1 Channel Input (RCA), 1 Built-in Mic / 1 Channel Output / Audio Compression: G.711A, G.711Mu, G726, AAC

Alarm Interface

2 Channel Input / 2 Channels Output

Bit Rate

H264: 88Kbps-16384Kbps ;H265: 52Kbps-16384Kbps

Bit Rate Control

Constant bit rate (CBR) / Variable bit rate (VBR)

Camera Type

Fisheye Dome

Day/Night

N/A

Detect (25px/m)

40m

Dewarping Modes

Original (Dewarp Supported) / Panoramic / Double Panoramic / Virtual PTZ / Original + 3 split, + 4 split, + 8 split

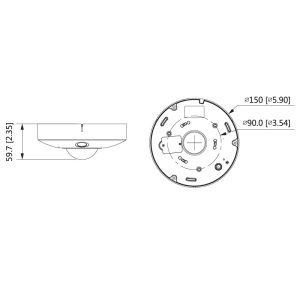

Dimensions

Ø150mm x 60mm

Edge Storage

MicroSD Card (up to 256GB) / FTP

Effective Pixels

4000 (H) x 3000 (V)

ePoE

No

Ethernet

RJ-45 (10/100Base-T)

Field of View

Horizontal: 185°, Vertical: 180°

Focus

Fixed

Frame Rate (Main)

12.0MP (1 ~ 25fps)

Frame Rate (Sub)

D1 (1 ~ 25fps)

Frame Rate (Third)

D1 (1 ~ 25fps)

Gain Control

Manual

Housing

Metal, Plastic

Identify (250px/m)

4m

Image Sensor

1/1.7" 12.0MP Progressive Scan CMOS

Infrared System

3 x Infrared LED, 10m range

Ingress Protection

IP67

Intelligent Functions

Intrusion, Tripwire, Region of Interest (4 zones), Privacy Masking (4 zones) Smart Infrared, Heat Map

Interoperability

ONVIF (Profile S / Profile G), GB/T28181, CGI

Lens / Iris

1.85mm F2.0 Fixed Focal Lens with Fixed Aperture

Lens Type

Fixed

Lighting Compensation

DWDR

Max. Resolution

12.0 Megapixel

Max. User Access

20 Users

Min Illumination

0.001 Lux/F2.0 (colour 1/3s), 0.01 Lux/F2.0 (colour 1/30s), 0 Lux/F2.0 (IR on)

Net Weight

0.77kg

Noise Reduction

3D DNR

Observe (63px/m)

16m

Operating Conditions

-30°C to +45°C, ?95% RH

Pan/Tilt/Rotation

N/A

People Counting

Queue Management (Triggers alarm when designated amount of people enters zone, 4 zones), Heat Mapping (Number of people and time spent)

Power Consumption

<9.2W (12VDC) / <12.9W (PoE)

Power Supply

12VDC / PoE

Protocol

HTTP, TCP, ARP, RTSP, RTP, UDP, RTCP, SMTP, FTP, DHCP, DNS, DDNS, PPPoE, IPv4/v6, SNMP, QoS, UPnP, NTP
