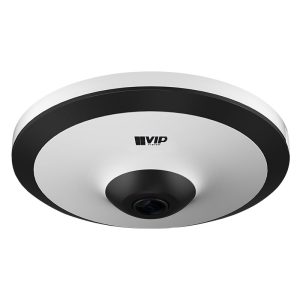

Specialist AI Series 5.0MP People Counting 360° Fisheye Dome

$578.92 ..inc GST

In stock

VSIPFE-5IR-I

Buy it now
Brands:
SKU: VSIPFE-5IR-I

The VSIPFE-5IR-I performs the duties of multiple cameras, with the powerful benefit of AI-powered people counting and heat mapping functions. Receive real-time alerts when a certain number of people enter an area with AI people & area counting or set up heat map to observe the amount of time people spend in areas.

Camera features:
• Stream up to 5.0MP (2592 x 1944) at 25fps
• Circular fisheye lens with 360° viewing angle

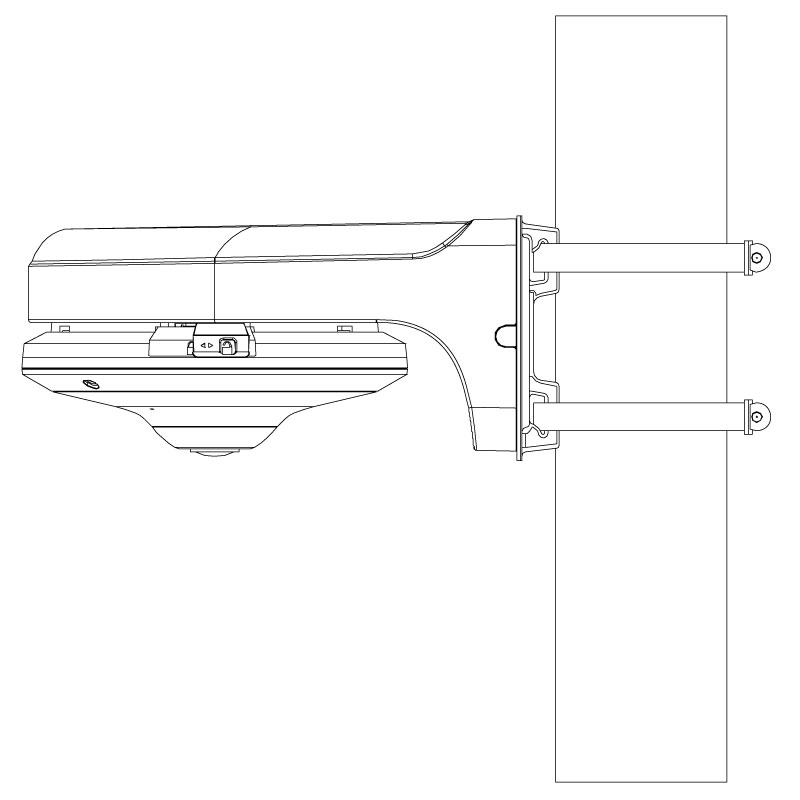

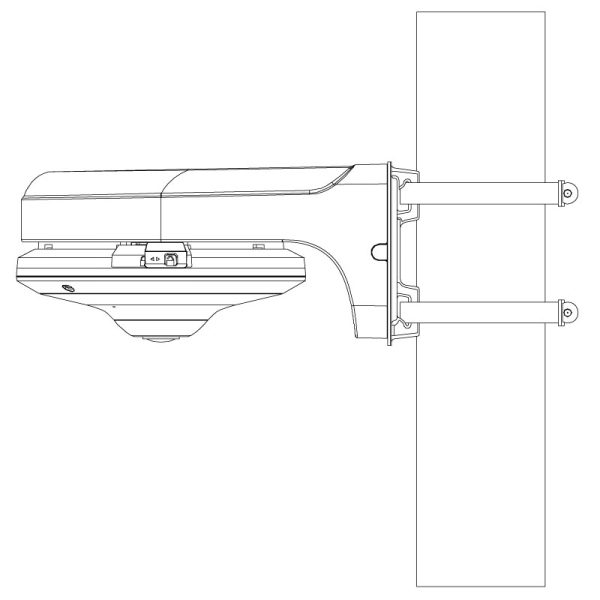

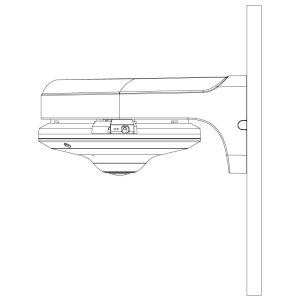

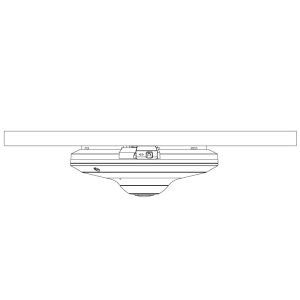

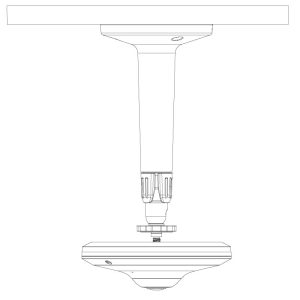

• Dewarp modes* for ceiling, floor & wall mounting
• Virtual PTZ, panorama, & camera split dewarp modes
• Up to 10m infrared range; true day/night (auto ICR)
• Set up AI-enhanced people tracking for real-time alerts, statistics and business analytics
• Heat map, tripwire, intrusion & regions of interest
• MicroSD card slot for edge recording up to 256GB
• Built in mic and audio/alarm inputs and outputs

* Check the Supported NVR specification to see if Fisheye Dewarping is supported by that NVR model

Weight 1.7 kg
Dimensions 168 × 340 × 168 mm
Audio Interface

1 input (RCA Port), 1 Built-in Mic / 1 output (RCA Port) / Audio Compression – PCM; G.711a; G.711Mu; G726; AAC

Alarm Interface

1 Input (5mA 3VDC ~ 5VDC), 1 Output (300mA 12VDC)

Bit Rate

H.265: 3 ~ 8192Kbps / H.264: 3 ~ 8192Kbps

Bit Rate Control

Constant bit rate (CBR) / Variable bit rate (VBR)

Camera Type

Fisheye Dome

Day/Night

Auto (ICR) / Color / B&W

Detect (25px/m)

28m

Dewarping Modes

Original (No dewarp) / Panoramic / Double Panoramic / Virtual PTZ / Original + 3 split, + 4 split, + 8 split

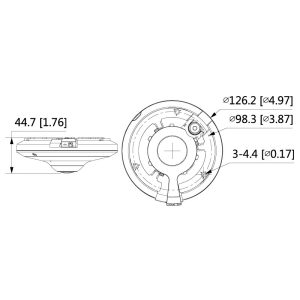

Dimensions

Ø126.2mm x 44.6mm

Edge Storage

MicroSD Card (up to 256GB) / NAS / FTP / SFTP

Effective Pixels

2592 (H) x 1944 (V)

ePoE

No

Ethernet

RJ-45 (100/1000 Base-T)

Field of View

Horizontal: 180°, Vertical: 180°

Focus

Fixed / 0.2m Min. Focus

Frame Rate (Main)

5.0MP (1~25fps)

Frame Rate (Sub)

D1 (1 ~ 25fps)

Frame Rate (Third)

720p (1 ~ 25fps)

Gain Control

Auto / Manual

Housing

Metal + Plastic

Identify (250px/m)

3m

Image Sensor

1/2.7’’ 5.0MP Progressive Scan CMOS

Infrared System

3 x Infrared LED, 10m range, Auto/manual on/off control

Ingress Protection

N/A

Intelligent Functions

Tripwire, Intrusion, Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (4 zones), Smart Infrared, Heat Map

Interoperability

ONVIF Profile S, G & T / CGI / P2P / Milestone / Genetec

Lens / Iris

1.4mm F2.0 Fixed Circular Fisheye Lens

Lens Type

Fixed

Lighting Compensation

BLC / HLC / True WDR (120dB)

Max. Resolution

5.0 Megapixel

Max. User Access

20 Users (Total bandwidth: 64M)

Min Illumination

0.006lx/F2.0 (Colour)

Net Weight

0.3kg

Noise Reduction

3D DNR

Observe (63px/m)

11m

Operating Conditions

-10° ~ +50° C / Less than 95% RH

Pan/Tilt/Rotation

N/A

People Counting

Supports Area People Counting (No. of people, People quantity thresholds, 4 zones), Heat Mapping (No.of people and time spent)

Power Consumption

<3.6W (12VDC) / <4.4W (PoE) / <8.8W (Max.)

Power Supply

12VDC / PoE (802.3af)

Protocol

IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; 802.1x; SNMP
