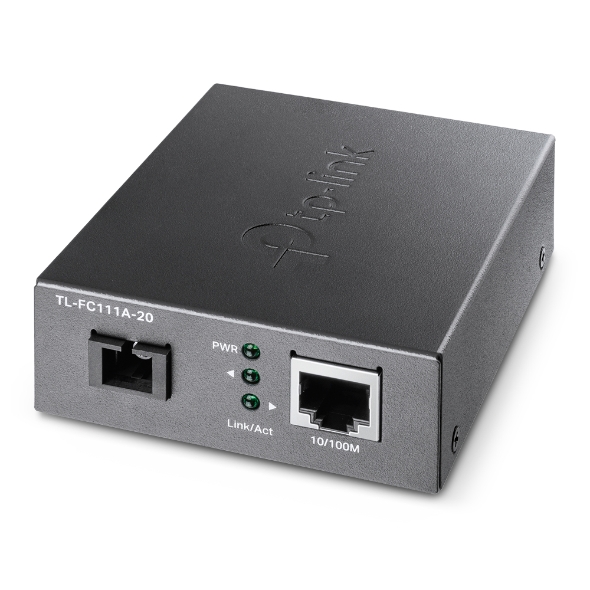

TP-Link TL-FC111A-20 10/100 Mbps WDM Media Converter – IEEE 802.3u 1550nm 20KM (Compatible with TL-FC111B-20)
$39.00 ..inc GST
In stock
TP-Link TL-FC111A-20 10/100 Mbps WDM Media Converter – IEEE 802.3u 1550nm 20KM (Compatible with TL-FC111B-20)
TP-Link TL-FC111A-20 10/100 Mbps WDM Media Converter
? Complies with 802.3u 10/100Base-TX, 100Base-FX standards
? Auto-negotiation of Half-Duplex/Full-Duplex transfer mode
? Adopts WDM technology, transmitting and receiving data on one single fibre
? Extends fibre distance up to 20km
What This Product Does
TL-FC111A-20 is a 100M media converter, providing a 100M RJ-45 port and a 100M SC fiber port, which can convert between electrical and optical signals. And long-distance data transmission through optical fiber can be applied to commercial scenarios such as park security monitoring and wireless networking.
How This Product Works
TL-FC111A-20 adopts WDM (wavelength division multiplexing) technology, helping send and receive data at a distance of up to 20 km with only a single mode fiber, which saves half of the cable deployment cost for customers. TL-FC111A-20 transmits data at 1550nm wavelength and receives data at 1310nm wavelength on optical fiber. Therefore, the terminal device used in conjunction with the TL-FC111A-20 should send data at a wavelength of 1310nm and receive data at a wavelength of 1550nm. TP-Link another media converter TL-FC111B-20 is one of the products that can cooperate with TL-FC111A-20.
Other Features
Besides, this media converter can be used as a standalone device (no rack required) or used with TP-Link??s TL-FC1420 rack for auto MDI/MDI-X in TX port in which duplex mode is automatically negotiated.
| Weight | 0.34 kg |
|---|---|
| Dimensions | 168 × 206 × 66 mm |
| Warranty | 36 |
| Manufacturers Code | FC111A-20 |
| Manufacturer |
