Ultimate 64 Channel Network Video Recorder (384Mbps)

Original price was: $5,435.45.Current price is: $4,891.91. ..inc GST

In stock

NVR64ULTNP

Buy it now
Brands:
SKU: NVR64ULTNP

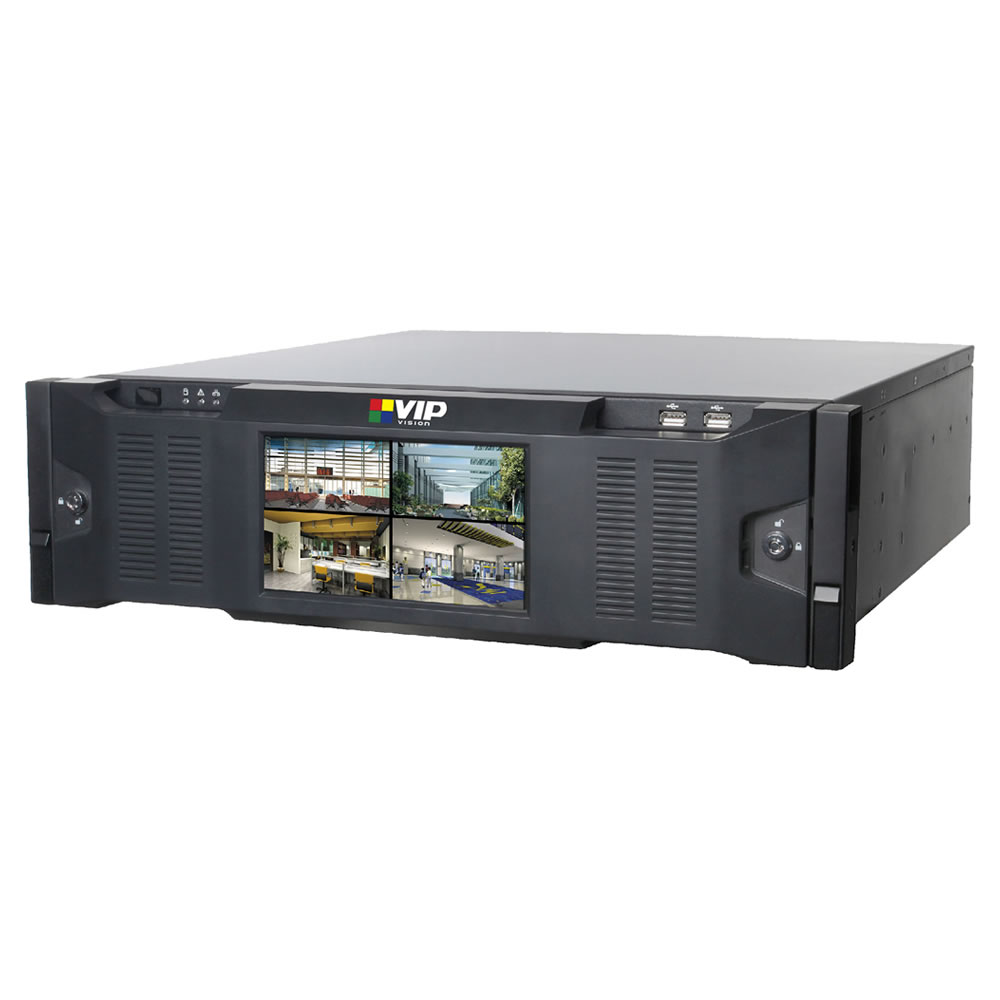

The VIP Vision NVR64ULTNP is a 64 channel network video recorder, designed as a high performance, high capacity, professional IP surveillance solution for enterprise applications.

Purpose built for large surveillance installations, the NVR64ULTNP is powered by Intel? Core? processors and includes a 7?? front panel LCD display. It features 16 x SATA ports for a maximum of 96TB of hard drive storage which can be optimised for speed or redundancy via a variety of RAID HDD configurations.

This NVR is also capable of live view output in Ultra HD resolution (3840 x 2160), allowing cameras to display at their maximum resolution on compatible UHD monitors/televisions.

The NVR64ULTNP supports up to 384Mbps incoming bandwidth and can record beyond full HD video at a maximum resolution of 12.0MP (4000 x 3000). It also supports configuration of the VIP Vision 360ø IP camera range.

Accessing footage and changing settings remotely is possible from a local PC or over the internet via the NVR web interface. Smartphone and tablet remote viewing is available for iOS (iPhone, iPad), Google Android and Microsoft Windows Phone.

The NVR64ULTNP can backup footage to external USB devices, eSATA devices, an internal DVD-RW burner (optional) as well as via the local network

Weight 28 kg
Dimensions 440 × 640 × 720 mm
Auxiliary Inputs

1 x RS232 / 1 x RS485 / 1 x eSATA / 1 x Mini SAS

Alarm Input / Output

16 channels input / 8 channels relay output

Backup Modes

USB Device / Network / eSATA Device / Internal SATA burner

Bit Rate

1 ~ 20Mbps

Category

Network Surveillance

Dimensions

532 x 485 x 133mm

Display Resolution

Configurable from 3840 x 2160 to 1024 x 768

Display Split

1/4/8/9/16/25/36, Extra display: 1/4/8/9/16

Ethernet

4 RJ-45 ports (10/100/1000M): Load Balancing / Independent

HDD Modes

Single disk, RAID 0/1/5/6/10/50/60 (Global hot-spare support)

Incoming Bandwidth

384Mbps

Internal HDD

16 SATA ports, up to 96TB

Main Processor

Intel? Core? Processors

Max. User Access

128 users

Maximum Record Resolution

Configurable from 12.0MP(4000 x 3000) to CIF (352 x 288)

Network Functions

HTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Alarm Server, IP Search

ONVIF Conformance

2.4 Conformance

Operating Environment

-10 ~ 55øC / 10 ~ 90%RH / 86 ~ 106kpa

Operating System

Embedded Linux

Optical Interface

2 x Gigabit Fibre Interface

OSD

Camera title, Time, Video loss, Camera lock, Motion detection

Playback Sync

128Mbps (RAID 5 mode) / 64Mbps (single HDD mode)

Power Consumption

NVR: < 51W (without HDD)

Power over Ethernet

N/A

Power Supply

100 ~ 240VAC, 50 ~ 60Hz

Record Interval

1~120 min (default: 60 min) / Pre: 1~30s / Post: 10~300s

Record Modes

Manual / Schedule (Regular [Continuous], MD, Alarm) / Stop

Remote View

iOS (iPhone, iPad) / Android devices / Windows Phone

Search Modes

Time/Date, Alarm, By Motion, Exact search, Smart search

Trigger Events

Recording, PTZ, Tour, Alarm, Video Push, Email, FTP, Buzzer

Two-way Talk

1 channel input / 1 channel output / RCA

USB Interface

4 ports: Rear USB3.0 / Front USB2.0

Video Compression

H.264 / MJPEG

Video Detection

Motion (Zones: 396(22? 18)), Video Loss, Camera Blank

Video Input

64 channel

Video Output

2 x HDMI / 1 VGA

Weight

17.45kg (without HDD)
