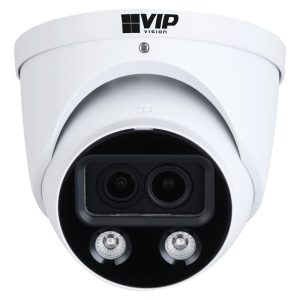

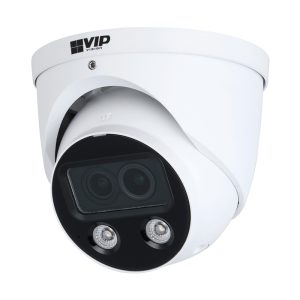

Ultimate AI Series 4.0MP Fixed Dual Lens

$578.42 ..inc GST

In stock

VSIPU-4DIRG-IM

Buy it now
Brands:
SKU: VSIPU-4DIRG-IM

The Ultimate AI Series detects and captures faces from footage using machine-learned algorithms, preparing face data for use with an AI NVR face database. This enables up to 16 channels of face recognition. The series also features intelligent perimeter protection and people counting to provide meaningful video event notifications in real-time.

Camera features:
• Stream up to 4.0MP (2688 x 1520) at 25fps
• 2.8 mm wide angle lens at 97° FOV
• 24/7 Colour video
• Dual AI sensors that produce vibrant low-light colours
• H.265 encoding for efficient storage & streaming
• 50m infrared/light range; true day/night (auto ICR)
• Back/highlight compensation & true WDR (140dB)
• MicroSD slot for recording at the edge up to 256GB
• Internal face detection & capture to extend AI recognition in NVR database
• Perimeter Protection to identify people & vehicles
• Combine Perimeter Protection with Tripwire/Intrusion to prevent false alarms with any VIP Vision NVR
• Intelligent AI-enhanced people counting for retail capacity management and flow control
• Extend PoE up to 800m (requires ePoE NVR/switch)
• IP67 weather rated

Weight 0.9 kg
Dimensions 138 × 156 × 156 mm
Audio Interface

1 input (RCA Port)/ 1 output (RCA Port) / Audio Compression – G.711a; G.711Mu; G726; G.723

Alarm Interface

1 channel in: 5 mA 3-5 VDC / 1 channel out: 300 mA 12 VDC

Bit Rate

H.264: 32 kbps–8192 kbps H.265: 19 kbps–8192 kbps

Bit Rate Control

Constant bit rate (CBR) / Variable bit rate (VBR)

Camera Type

Turret

Day/Night

Auto (ICR) / Color / B&W

Detect (25px/m)

58.2 m

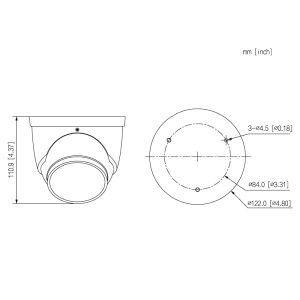

Dimensions

?122 mm × 110.9 mm

Edge Storage

MicroSD Card (up to 256GB) / NAS / FTP /SFTP

Effective Pixels

2688 (H) × 1520 (V)

ePoE

Yes

Ethernet

RJ-45 (10/100Base-T)

Event Trigger

Motion Detection, Video Tampering , Scene Changing, Network Disconnection, IP Address Conflict, Illegal Access

Face Attributes

Age, Gender, Expression, Glasses, Face Mask, Facial Hair

Face Detection

Internal Face Detection & Capture to add up to 10 channels of Face Detection with AI NVR (16 total)

Field of View

97°

Focus

4m Min. Focus Distance

Frame Rate (Main)

4.0MP (1 ~ 25fps) / 2.0MP (1 ~ 50fps)

Frame Rate (Sub)

D1 (1 ~ 50fps)

Frame Rate (Third)

1080p (1 ~ 25fps)

Gain Control

Auto / Manual

Heat Map

Yes

Housing

Metal, Plastic

Identify (250px/m)

5.8 m

Image Sensor

1/1.8" + 1/1.8" CMOS

Infrared System

2 x Infrared LED, 50m range, Auto/manual on/off control

Ingress Protection

IP67

Intelligent Functions

Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (4 zones), Smart Infrared, Abandoned Object, Moving Object

Interoperability

ONVIF (Profile S/Profile G/Profile T); CGI; Milestone; Genetec; P2P

Lens / Iris

2.8mm F1.0 Fixed Focal Dual Lens

Lens Type

Fixed

Lighting Compensation

BLC / HLC / WDR (140dB)

Max. Resolution

4.0 Megapixel

Max. User Access

20 Users

Min Illumination

0.0002 lux / F1.0 (Colour)

Net Weight

0.75 kg

Noise Reduction

3D NR

Observe (63px/m)

23.3 m

Operating Conditions

-40°C ~ +60°C (Heater on), ?95% RH

Pan/Tilt/Rotation

Pan: 0° ~ 360° Tilt: 0° ~ 78° Rotation: 0° ~ 360°
