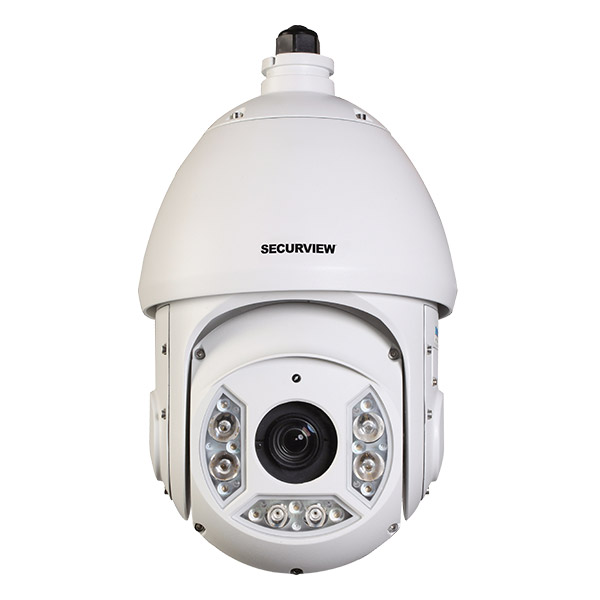

Ultimate Series 1080p 20x Zoom HDCVI PTZ

$1,044.05

In stock

VSCVI2MPPTZIR

Buy it now
SKU: VSCVI2MPPTZIR

The Securview Victory Series VSCVI2MPPTZIR is a 2.0 megapixel, 100m infrared, motorised varifocal lens, pan-tilt-zoom dome camera and is capable of providing 1080p Full High Definition footage over coaxial cable. It uses the HDCVI video transmission standard which enables HD video transmission up to 300m (1080p quality using 75-3 coax) with low latency and low interference.

Its fast 20x optical zoom and pan/tilt capabilities allow for effective surveillance of multiple locations size. It also has an IP66 rating, making it a perfect surveillance solution across indoor and outdoor environments.

This camera is only compatible with digital video recorders in the Securview Victory Series. Bracket and AC power supply as standard.

Weight 8.3 kg
Dimensions 525 × 300 × 300 mm
Analogue Support

Yes (Switchable)

Alarm Interface

2 channel in / 1 channel out

Angle of View

54.1° (wide) ~ 3.2° (tele)

Audio Input

1 channel in

Backlight Compensation

BLC / HLC / DWDR

Camera Style

Weather Resistant PTZ Dome

Camera Type

PTZ Dome

Category

Network Surveillance

Day/Night

Auto (ICR) / Colour / B&W

Dimensions

Ø205 x 360mm

Effective Pixels

1920 (H) x 1080 (V)

Electronic Shutter

1/1 ~ 1/30,000s

Frame Rate

25fps (1080p and lower)

Gain Control

Auto/Manual

HD/SD Switchable

Yes

Image Sensor

1/2.8” 2.0 Megapixel Exmor CMOS

Ingress Protection

IP66

Lens

4.7 ~ 94mm Motorised Lens; Auto Iris

Lens Type

Motorised Varifocal

Manual PTZ Speed

Pan: 0.1° ~160°/s; Tilt: 0.1° ~120°/s

Max. Resolution

1080p Full HD

Maximum Infrared Range

100m

Minimum Illumination

0.05 Lux at F1.4 (Colour) / 0 Lux IR Active

Noise Reduction

2D / 3D

Operating Environment

-40° to 60°C / RH90% (max)

OSD Menu

Support

Pan/Tilt Range

Pan: 0° ~ 360° endless / Tilt: -15° ~ 90° / Auto-flip 180°

Power Consumption

10.5W / 26W (IR active)

Power Input

24VAC 3A ±10%

Preset PTZ Speed

Pan: 240°/s; Tilt: 200°/s

Presets

300(DH-SD) / 255(Pelco-P/D)

Protocols

DH-SD / Pelco-P/D (Auto Recognition)

PTZ Modes

5 Pattern / 8 Tour / Auto Pan / Auto Scan

Resolution

1080p (1920 x 1080) to CIF (352 x 288)

RS485

1 input

Signal Noise Ratio

> 50dB

Synchronisation

Internal

Transmission Distance

Up to 300m via 75-3 coaxial cable

Tri-Axis Mounting

No

Vandal Resistant

No

Video Compression

H.264 / MJPEG
