Name: Ultra HD Network Video Decoder (2 x HDMI Out)
SKU: NVD-A2
Availability: InStock

Ultra HD Network Video Decoder (2 x HDMI Out)

..inc GST

In stock

NVD-A2

Buy it now

Brands:

SKU: NVD-A2

The NVD-A2 comes from a series of IP video decoders which allow the configuration of 2 HDMI displays, which create video walls of live footage from any camera or recorder connected to the network as well as any connected HDMI video inputs. This decoder can be fully configured and adjusted over the network or with SmartPSS.

Product Features
? Roaming decoder displays all video feeds on network
? Video wall slicing for up to 36 displays per monitor
? Split screen control with zoom, merge, roam and overlay
? Switch between standard and high definition streams
? Decode up to 2CH 4K, 10CH 1080p or 32CH D1
? Support for audio and multi-video split display
? Manage via web browser or VIP Vision SmartPSS

Show More Show Less

Weight	0.5 kg
Dimensions	71 × 163 × 297 mm
Alarm Output	–
Alarm Input	–
Audio Format	PCM
Bi-directional Talk	–
Collection Resolution	–
Communication Interface	1 x RJ45 network port (10 / 100 / 1000M), 1 x RS232 (via RJ45, 3 x USB
Decoding Resolution	8MP / 6MP / 5MP / 3MP / 1080p / 960H / D1

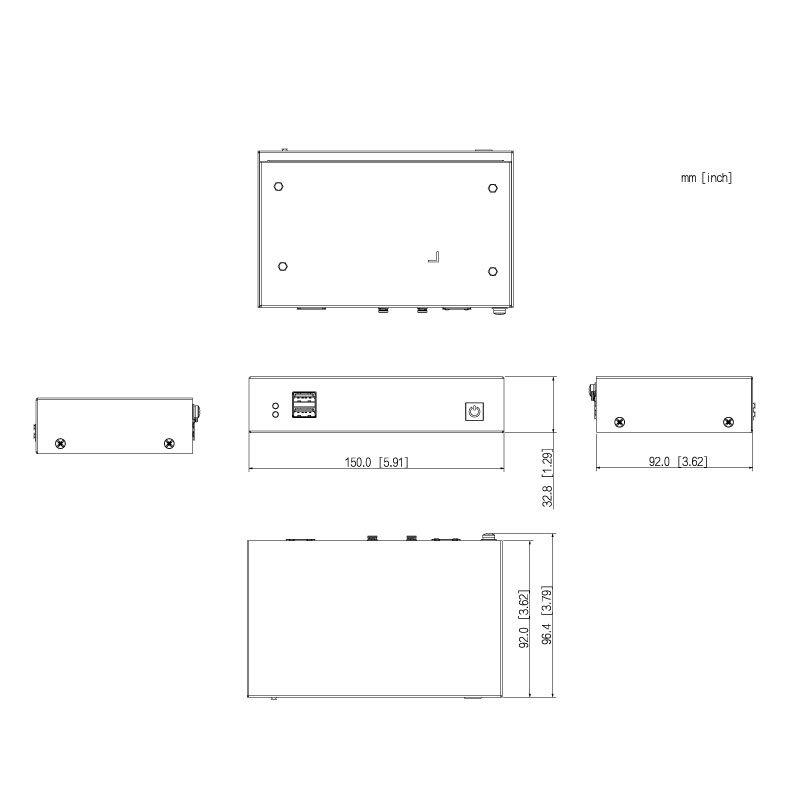

Dimensions	150.0 mm x 92.0 mm x 32.8 mm (L x H x W)
Display Resolution	1024 x 768@60Hz, 1280 x 720@60Hz, 1280 x 1024@60Hz and 1920 x 1080@60Hz
Display Split	1 / 4 / 6/ 8 / 9 / 16 / 25 split. Supports M x N custom split and M x N < 36
Operating System	Embedded Linux
Operating Temperature	-10øC to +55øC
Power Consumption	<24W
Power Supply	100-240 VAC, 50-60Hz
Processor	High-Performance Embedded Processor
Video Decoding Capacity (Separate)	–
Video Decoding Capacity (Total)	Decodes maximum 2Ch@8MP(25fps), 3CH@6MP(25fps), 5CH@5MP(25fps), 5CH@4MP(25fps), 7CH@3MP(25fps), 10CH@1080p(30fps) and 32CH@D1(30FPS) Simultaneously
Video Format	H.265 / H.264
Video Frame Rate	PAL: 1~25fps / NTSC: 1~30fps
Video Input	–

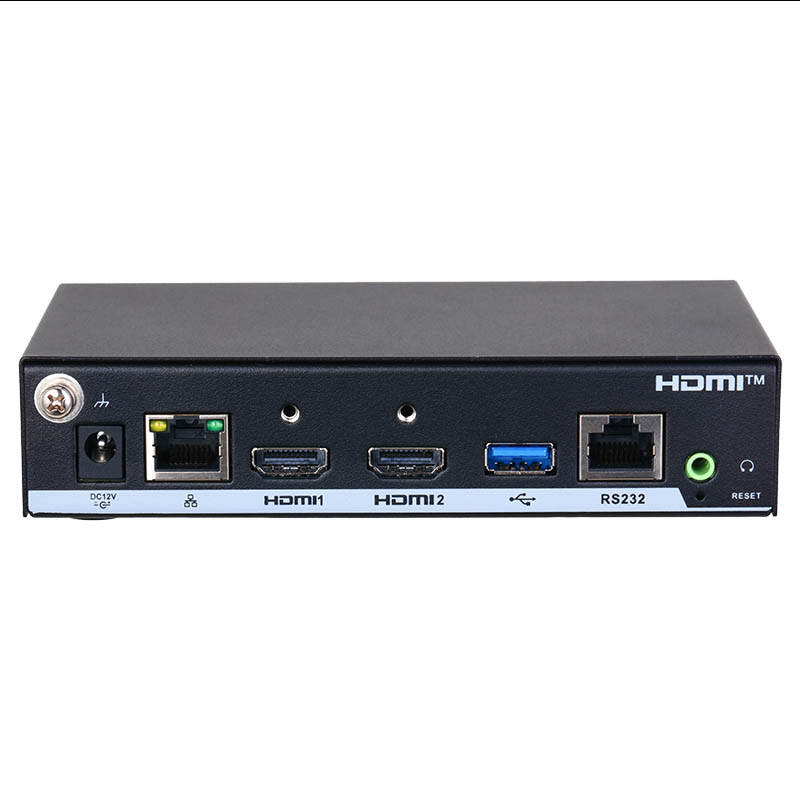

Video Output	2 x HDMI
Weight	0.30kg
