Vertical Curtain PIR Sensor

$50.00 ..inc GST

In stock

PIR-T46C

Buy it now
Brands:
SKU: PIR-T46C

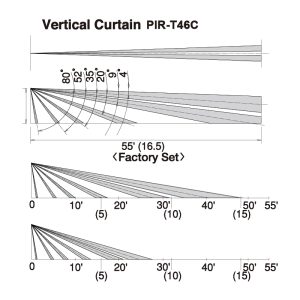

The PIR-T46C Vertical Curtain PIR Sensor from Takex is built with adjustable infrared detection up to 16.5 meters to detect intruders. Choose from three coverage settings by matching the PCB (printed circuit board) to the index marks (refer to manual). Designed to integrate with our range of Watchguardƒ?› Hardwired Alarm Systems. It’s vertical curtain infrared makes it ideal to be installed above entrances and windows.

Product Features:
* Passive infrared detection up to 16.5m
* Adjust the coverage area for different mounting heights
* Sensitive Zones – 6 pairs
* ABS Plastic housing built for indoor environments
* Input voltage: 9 ~18VDC
* Made in Japan

* Can be wall/ceiling mounted (bracket sold separately PIR-T4BKT)

Weight 0.12 kg
Dimensions 70 × 120 × 45 mm
Dimensions

Alarm Output

Housing

Infrared Detection Range

Infrared Type

Input Voltage

Mounting Options

Operating Conditions

Pet Immunity

Sensitive Zones

Tamper Protection

Transmitting Current

Type
