VIP Vision 2-Door Web Access Controller Module

$325.40 .. inc GST

In stock

AC-WCM

Buy it now
Brands:
SKU: AC-WCM

The AC-W Series comprises powerful and flexible access control systems designed to deliver secure and scalable access management for commercial applications.

The AC-WCM web control module acts as central command for your access control system, managed simply via your network within your web browser. Cascade web control modules to grow your system to manage up to 40 doors, perfect for securing small to medium enterprises. To scale further, combine multiple systems via Access Management Platform software, built for large enterprise deployments.

? Built-in web server for master and sub configuration
? Power via PoE and output 12VDC 1A to door locks
? Access features incl. first-person unlock, global anti-passback and more
? Combine up to 20 modules to control up to 40 doors
? Web control module supports up to 1000 users
? Manage users, roles, keys, codes via web browser
? Accesses readers via Wiegand & RS-485 protocols

Weight 0.99 kg
Dimensions 90 × 250 × 250 mm
Alarm Function

Door Sensor Timeout, Tamper Alarm, Duress Alarm via Card or Fingerprint, Intrusion Alarm, Illegal Card

Access Control

First-Person Unlock, Multi-Person Unlock, Multi-Door Interlock, Global Anti-Passback, Global External Alarm, Blocklist/Allowlist, Real-time Monitoring, Multi-Factor Authentication, Web Configuration, Network Software Updates, Multi-User Authentication (via Management Platform only)

Battery Backup

Supports battery backup (via AC-WSB)

Battery Up-time

6~12 hours (system dependent)

Card Memory

5,000 (as Main Controller), 50,000 (as Sub Controller)

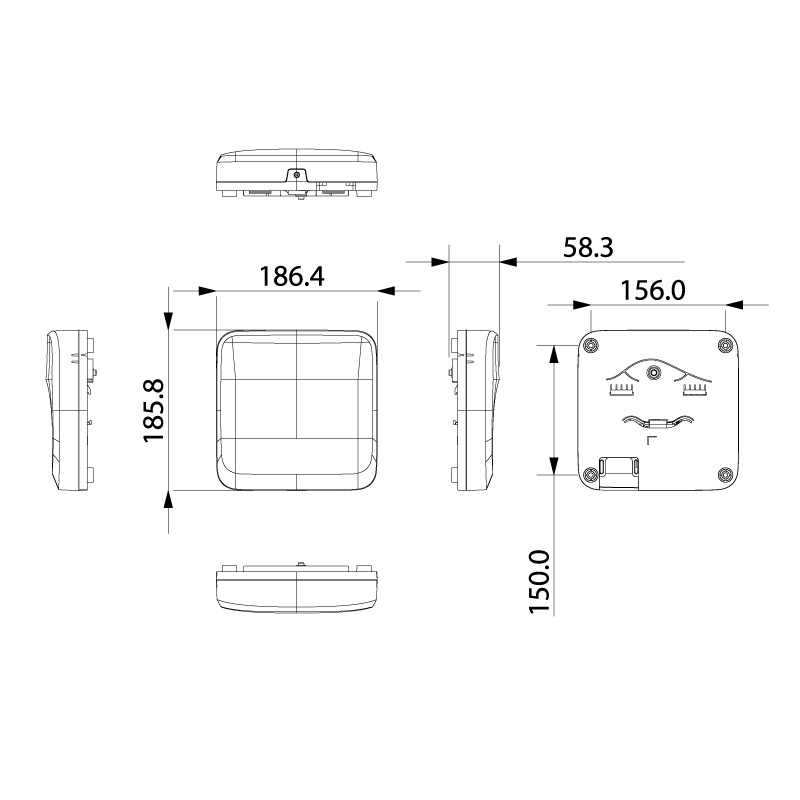

Dimensions

186 x 186 x 58mm

Ethernet

RJ-45 (10/100Base-T)

Event Memory

Up to 300,000 Events

Housing

Plastic (PC and ABS)

Input Ports

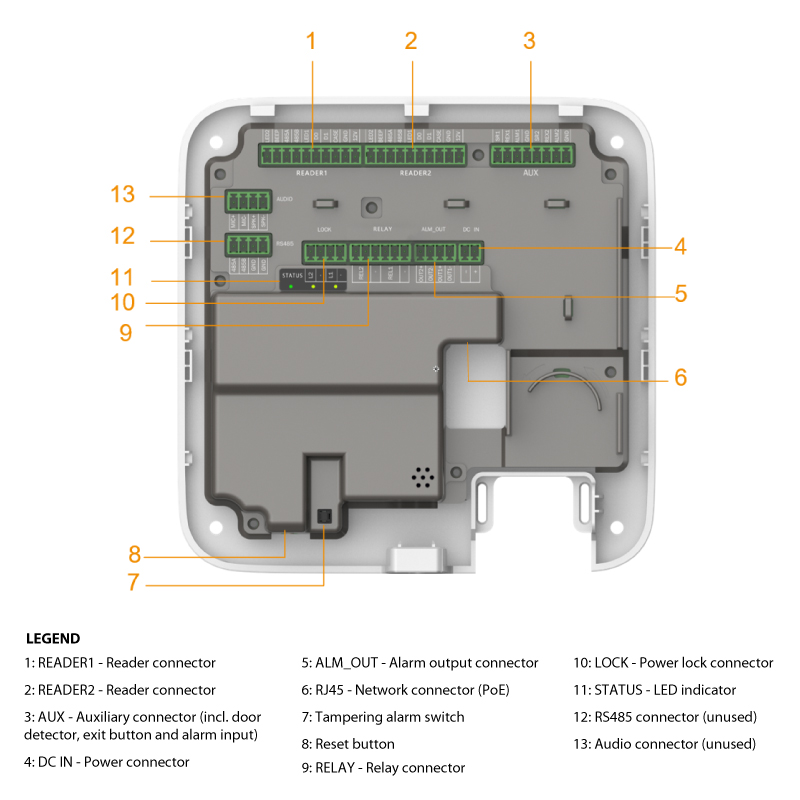

2 x Door Status, 2 x Lock Control, 2 x Exit Button, 2 x Alarm Input/Output, 1 x RJ-45, 2 x Wiegand, 3 x RS-485

Main Processor

Embedded Processor

Memory

Embedded

Net Weight

0.99kg

Operating Conditions

-10ø ~ +55ø C / Less than 95% RH / Indoors only

Output Ports

2 x Door lock, 2 x Alarm output

Period

Schedule up to 128 General Purpose Periods and up to 128 Holiday Periods

Power Supply

12VDC / PoE (802.3at)

Reader Interface

RS485 / Wiegand 34

Reader Ports

2

RTC

Configure via Web Interface

User Management

General, VIP, Guest, Patrol, Blocklist, Other
