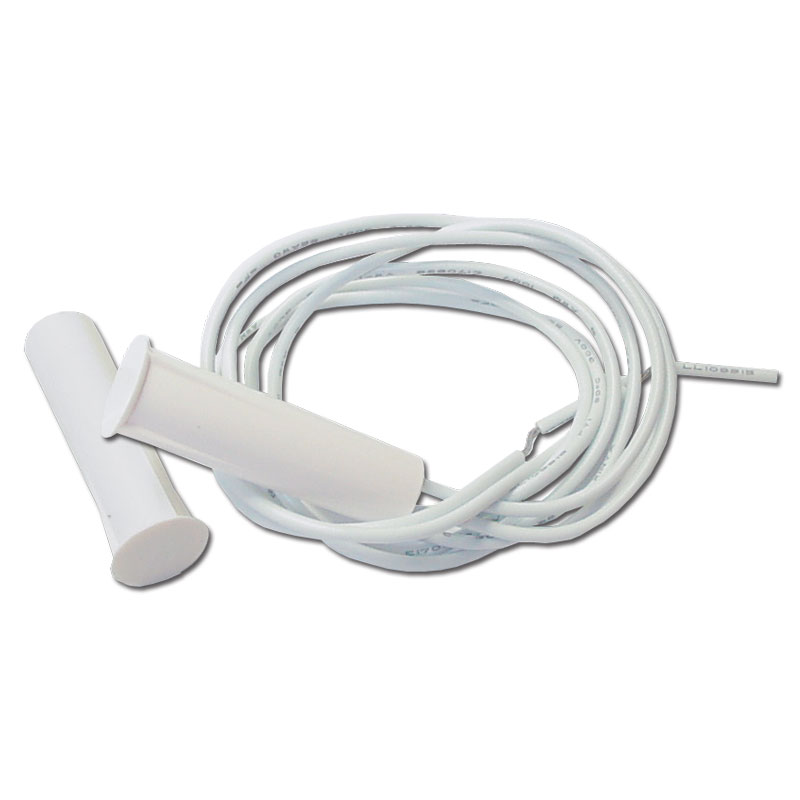

Hardwired, concealed reed switch, perfect for mounting in the tops of doors or hidden areas.
Product features:
• Compact design with easy push-in installation
• Normally open (N.O) reed switch output
• Closed loop when near magnet; open loop when away from magnet
• 15-25mm operating distance
• 500mA, 100VDC
• 250mm sensor leads
• Ø10.0mm x 18.5mm contact,
• White ABS plastic
| Weight | 0.01 kg |
|---|---|
| Dimensions | 10 × 80 × 90 mm |
| Dimensions | Ø10.0mm x 18.5mm |
| Contact Rating - Maximum | 100VDC 500mA |
| Magnet Away | Open Circuit |
| Magnet Near | Closed Circuit |
| Magnet-Sensor Gap - Maximum | 25mm |
| Material | ABS Plastic |
| Mount | Concealed |
| Switch Type | Normally Open (N.O) |
| Type | Reed Switch |
