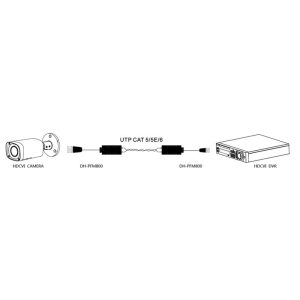

The VSBALHDP allows installer to minimise the cost of wiring for surveillance camera installations by using network cabling such as CAT6 or CAT5e instead of Coax Cable. Video transmission range from up to 100m (at 4K Ultra HD), 250m (at 1080p), 200m (at 4.0MP) or 400m (at 720p).
| Weight | 0.06 kg |
|---|---|
| Dimensions | 30 × 150 × 120 mm |
| BNC Male | 75 ohms |
| Anti-Interference | ?60db |
| Category Type | UTP CAT 5E/6 (R?10?/100M) |
| Coaxial Cable Connector | 2KV(common-code) Per:IEC61000-4-5 |
| Coaxial Video Connector | BNC-M |
| Compatible Format | HDCVI |
| Dimensions | 53mm*20mm*17mm (L*W*H) |
| ESD | 1a contact discharge electricity level 3, 1b air discharge electricity level 3, Per:IEC61000-4-2 |
| MTBF | ?10000H |
| Operating Humidity | 0~95%(non-condensing) |
| Operating Temperature | -10~55? |
| Resolution | 720p/1080p/4.0MP/4K |
| Storage Temperature | -20~70? |
| Transmission Distance | 720p: 400M (max) , 1080p: 250M (max), 4.0MP: 200M (max), 4K: 100M (max) |
| Transmission Signal | 1 channel |
| Twisted-pair Video Connector | Push-terminal |
| UTP Cable | 100 ohms |
| UTP Cable Connector | 2KV(different-code),4KV(common-code),Per:IEC61000-4-5 |
