Temperature Monitoring Access Control Station

$2,386.29 ..inc GST

In stock

VSIPT-MACT

Buy it now
Brands:
SKU: VSIPT-MACT

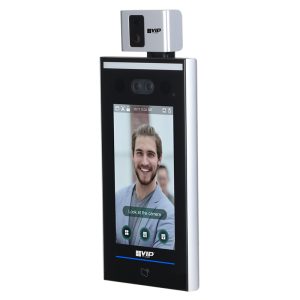

Create fast, contactless temperature screening checkpoints with the VSIPT-MACT. The system can both accurately detect faces and read body temperatures, setting off alerts & alarms when high temperatures are detected, and features an easy-to-use touchscreen interface for admin use.

The VSIPT-MACT controls access in multiple ways, including conventional methods such as keycard and passcode unlock, as well as unlock via face match and temperature measurement. It can even be configured to check for face masks.

Product features:
• Standalone face recognition & BTM access module with WiFi
• Create fast, contactless temperature screening checkpoints
• Controls access from unauthorised persons & temp threshold
• BTM & access event alerts via email & device push notifications
• 7” LCD display and touchscreen with 600 x 1024 resolution
• Monitor face temperatures with ±0.5°C accuracy
• Face detection from a distance of 0.3m to 2.0m
• Voice responses to direct users and allow/deny entry
• 1/2.8” 2.0MP CMOS image sensor with WDR
• Admin unlock via face, card, password or a combination
• 2/2 alarm input/output, RS485, RS232, Wiegand
• Contactless scanning in a compact, slim body
• Wall mountable (desk & floor mounts sold separately)

Weight 2.5 kg
Dimensions 120 × 370 × 310 mm
Alarm Features

Anti-Passback / Tamper Switch / Duress / Door Sensor Timeout / Intrusion / Illegal Card Exceeding Threshold

Additional Input / Output

1 x Exit Button / 1 x Door Status Detection / 1 x Lock Control

Alarm Input / Output

2 channels input / 2 channels output

Auxiliary Inputs

1 x RS485 / 1 x RS232 / 1 x Wiegand (Input or Output)

Camera

1/2.8” 2.0MP CMOS WDR Dual Camera

Card Capacity

100000

Card Reading Type

IC Card

Display

7” Capacitive LCD Monitor

Ethernet

1 x 1000M Ethernet Port / 1 x 10M/100M Ethernet Port

Face Image Capacity

100000

First-Card Unlock

Yes

Holiday Period

128

Housing Material

Aluminium Alloy / Tempered Glass / Polycarbonate

Installation

Wall mount

Interoperability

ONVIF & CGI

IR Resolution

120 x 90

Light Compensation

Auto White Light / Auto IR Light

Main Processor

Embedded Processor

Multiple Authentication

Yes

Network Protocol

IPv4, RTSP, RTP, TCP, UDP, P2P

OSDP Protocol

Yes

Password Capacity

100000

Period List

128

Peripheral Card Reader

1 x RS485 / 1 x Wiegand

Power Consumption

?24W

Power Supply

12VDC 2A

Product Dimensions

313mm x 129mm x 37mm

Real-Time Surveillance

Yes

Record Capacity

300000

Remote Verification

Yes

Resolution

600 (H) x 1024 (V)

SDK and API

SDK Support

Status Indicator

1 x Indicator Light – Red: Error; Green: Normal; Blue: Working

Temp. Monitoring Accuracy

±0.3°C

Temp. Monitoring Angle

50°

Temp. Monitoring Distance

0.3m ~ 0.8m

Temp. Monitoring Height

1.4m ~ 1.85m (at 0.5m distance)

Temp. Monitoring Range

30°C to 50°C

Temp. Monitoring Time

0.2s

Unlock Mode

Card / Remote / Password / Face Unlock / Any combination of these methods; Face unlock under temperature monitoring mode

USB

2 x USB2.0 port
