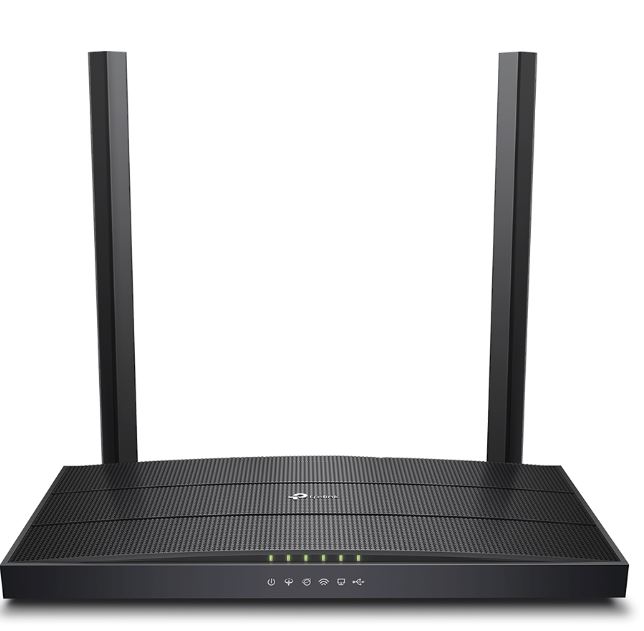

AC1200 Wireless MU-MIMO VDSL/ADSL Modem Router
Speedy WiFi ƒ?? Experience superb wireless connections with 867 Mbps (5 GHz) + 300 Mbps (2.4 GHz) dual band WiFi
Superior Range ƒ?? Two fixed omnidirectional antennas with Beamforming technology provide stable wireless connections and optimal coverage
Versatile Connectivity ƒ?? Fully compatible with VDSL2/ADSL2+/ADSL2/ADSL standards, as well as fiber, cable, and 3G/4G internet services
Whole-Home Coverage with OneMeshTM ƒ?? Works alongside TP-Link OneMeshTM products to create a flexible Mesh network
MU-MIMO Technology ƒ?? Simultaneously transfers data to multiple devices, reducing wait times
Full Gigabit Ports ƒ?? Take full advantage of broadband speeds up to 1 Gbps
Tether Appƒ?? TP-Link Tether provides the easiest way to access and manage your router on your iOS and Android devices
HARDWARE FEATURES
Interface 3?? 10/100/1000Mbps RJ45 LAN Ports,
1?? 10/100/1000Mbps RJ45 WAN/LAN Port,
1?? RJ11 Port,
1?? USB 2.0 Port
Button WPS Button, Wi-Fi On/Off Button, Reset Button
External Power Supply 12V/1A
IEEE Standards IEEE 802.3, IEEE 802.3u, 802.3ab
VDSL2 Standards ITU G.993.2, Up to 17a profile (POTS)
ITU-T G.993.5 (G.vector)
ITU-T G.998.4 (G.INP)
ADSL Standards Full-rate ANSI T1.413 Issue 2,
ITU-T G.992.1(G.DMT),
ITU-T G.992.2(G.Lite),
ITU-T G.994.1 (G.hs),
ADSL2 Standards ITU-T G.992.3 (G.DMT.bis)
ADSL2+ Standards ITU-T G.992.5
Dimensions ( W x D x H ) 8.5 ?? 4.9 ?? 1.2 in (215.6 ?? 124.6 ?? 31.6 mm)
Antenna Type 2?? fixed Omini-Directional antennas
WIRELESS FEATURES
Wireless Standards IEEE 802.11ac/n/a 5GHz, IEEE 802.11b/g/n 2.4GHz
Frequency 2.4 GHz and 5 GHz
Signal Rate 867Mbps at 5 GHz, 300Mbps at 2.4 GHz
Wireless Functions Enable/Disable Wireless Radio, WMM, Wireless Statistics
Wireless Security 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions
Transmission Power <20dBm (2.4 GHz), <23dBm (5 GHz)
Wireless Schedule Support 2.4 GHz and 5 GHz Wireless Schedule
SOFTWARE FEATURES
Security NAT Firewall, S
