TP-Link TL-FC311A-20 Gigabit WDM Media Converter – IEEE 802.3u 1550nm 20KM 9/125 ?¬m Single-Mode Fiber (Compatible with TL-FC311B-20)
$49.00 ..inc GST
In stock
TP-Link TL-FC311A-20 Gigabit WDM Media Converter – IEEE 802.3u 1550nm 20KM 9/125 ?¬m Single-Mode Fiber (Compatible with TL-FC311B-20)

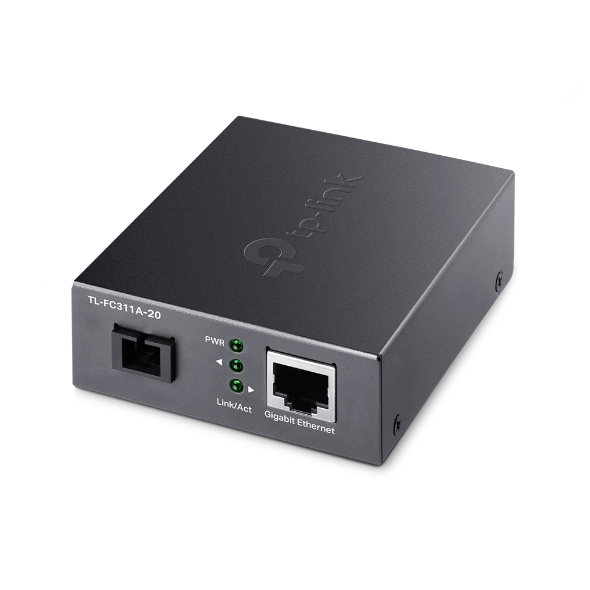

TP-Link TL-FC311A-20 Gigabit WDM Media Converter
? 1?? 10/100/1000Mbps Auto-Negotiation RJ45 port supports Auto-MDI/MDIX
? Auto-negotiation of Half-Duplex/Full-Duplex transfer mode
? Adopts WDM technology, transmitting and receiving data on one single fibre
? Extends fibre distance up to 20 km (for TL-FC311A-20 & TL-FC311B-20)
NETWORK
Standards and Protocols IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3z
ENVIRONMENT
Operating Temperature 0??C to 50??C (32??F to 122??F)
Storage Temperature -40??C to 70??C (-40??F to 158??F)
Operating Humidity 10% to 90% RH non-condensing
Storage Humidity 5% to 90% RH non-condensing
HARDWARE FEATURES
Interface ? 1?? Gigabit SC Fiber Port
? 1?? 10/100/1000 Mbps RJ45 Port (Auto MDI/MDIX)
Network Media ? Single-mode Fiber
? UTP category 5, 5e cable (maximum 100m)
Power Supply External Power Adapter: 5 V/0.6 A
LED PWR, Link/Act
Dimensions ( W x D x H ) 3.7??2.9??1.1 in (94.5??73.0??27.0 mm)
Wave Length 1550 nm TX, 1310 nm RX
MEDIA CONVERTER & MODULE
Fiber Type 9/125 ?¬m single-mode fiber
| Weight | 0.36 kg |
|---|---|
| Dimensions | 168 × 208 × 66 mm |
| Warranty | 36 |
| Manufacturers Code | FC311A-20 |
