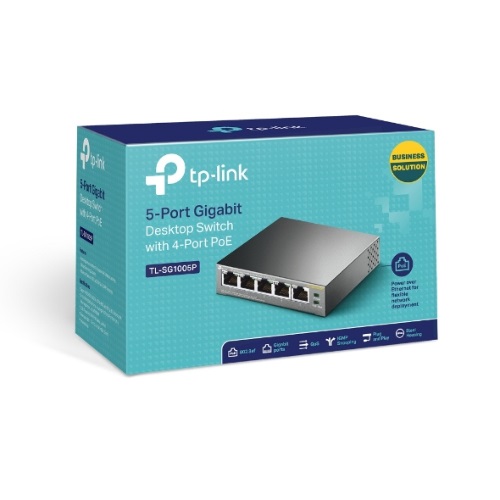

TP-Link TL-SG1005P 5-Port Gigabit Desktop Switch with 4-Port PoE, 5 Gigabit RJ45 ports including 4 PoE ports, 56W PoE Power supply, steel case

TP-Link TL-SG1005P 5-Port Gigabit Desktop Switch with 4-Port PoE 56W

5 10/100/1000Mbps RJ45 ports
With four PoE ports, transfers data and power on one single cable
Working with IEEE 802.3af compliant PDs, expands home and office network
802.1p/DSCP QoS enable smooth latency-sensitive traffic
Supports PoE Power up to 15.4W for each PoE port
Supports PoE Power up to 56W for all PoE ports
Requires no configuration and installation

HARDWARE FEATURES
Interface ƒ?› 5?? 10/100/1000Mbps RJ45 Ports
ƒ?› AUTO Negotiation
ƒ?› AUTO MDI/MDIX
Network Media ƒ?› 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
ƒ?› EIA/TIA-568 100?? STP (maximum 100m)
ƒ?› 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
ƒ?› EIA/TIA-568 100?? STP (maximum 100m)
ƒ?› 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
ƒ?› EIA/TIA-568 100?? STP (maximum 100m)
Fan Quantity Fanless
External Power Supply External Power Adapter (Output: 53.5 VDC / 1.31 A)
Packet Forwarding Rate 7.44 Mpps
PoE Ports (RJ45) ƒ?› Standard: 802.3 af/at compliant
ƒ?› PoE Ports: Ports 1ƒ??4
ƒ?› Power Supply: 65 W
Mac Address Table 2K
Jumbo Frame 16 KB
Switching Capacity 10 Gbps
Dimensions ( W x D x H ) 3.9??3.9??1.0 in (99.8??98??25 mm)
Max Power Consumption ƒ?› 4.29 W (220/50 Hz. no PD connected)
ƒ?› 74.24 W (220/50 Hz. with 65 W PD connected)
Max Heat Dissipation ƒ?› 14.63 BTU/h (no PD connected)
ƒ?› 253.16 BTU/h (with 65 W PD connected)
SOFTWARE FEATURES
Advanced Features ƒ?› Compatible With IEEE 802.3af/at Compliant PDs
ƒ?› Mac Address Auto-Learning And Auto-Aging
ƒ?› IEEE 802.3x Flow Control
ƒ?› 802.1p/DSCP QoS
ƒ?› IGMP Snooping
