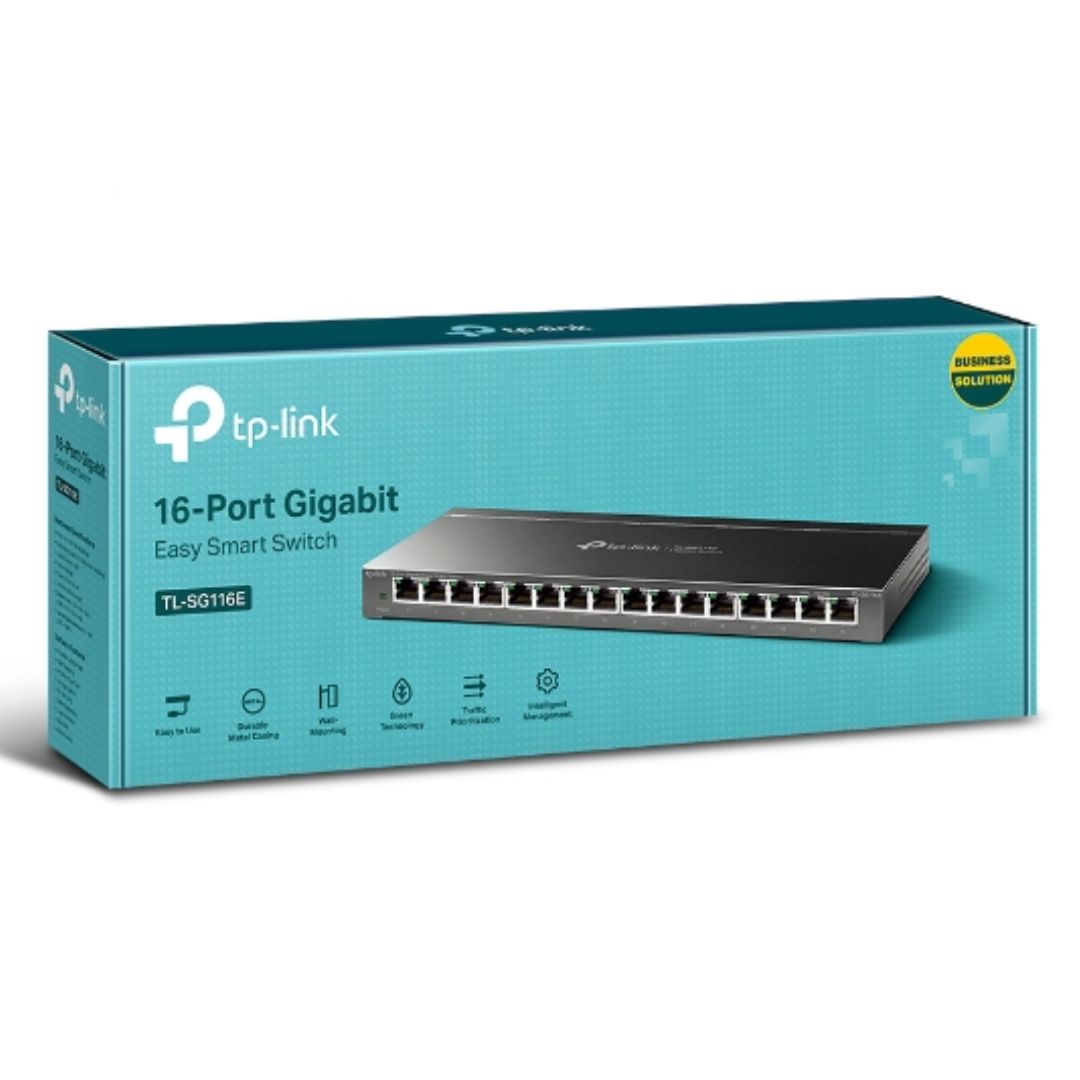

TP-Link TL-SG116E 16-Port Gigabit Unmanaged Pro Switch Desktop/Wall Mounting L2 Features 32xVLAN 32Gbps Capacity 23.81Mpps 8K MAC 4.1Mb Buffer Fanless
$109.00 ..inc GST
In stock
TP-Link TL-SG116E 16-Port Gigabit Unmanaged Pro Switch Desktop/Wall Mounting L2 Features 32xVLAN 32Gbps Capacity 23.81Mpps 8K MAC 4.1Mb Buffer Fanless
TP-Link TL-SG116E 16-Port Gigabit Unmanaged Pro Switch Desktop/Wall Mounting L2 Features 32xVLAN 32Gbps Capacity 23.81Mpps 8K MAC 4.1Mb Buffer Fanless
16 10/100/1000Mbps RJ45 ports
Plug and play, with no configuration required
Durable metal casing of superior quality and professional appearance
Intelligent management via a web user interface and downloadable utility
Green technology reduces power consumption
HARDWARE FEATURES
Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p
Interface 16 10/100/1000Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX
Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100?? STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100?? STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100?? STP (maximum 100m)
Fan Quantity Fanless
Power Supply External Power Adapter(Output: 9VDC/0.6A)
Power Consumption Maximum: 9.27W (220V/50Hz)
Dimensions ( W x D x H ) 11.3*4.4*1.0 in. (286*111.7*25.4 mm)
PERFORMANCE
Switching Capacity 32Gbps
Packet Forwarding Rate 23.81Mpps
MAC Address Table 8K
Packet Buffer Memory 4.1Mb
Jumbo Frame 9KB
SOFTWARE FEATURES
Quality of Service Support Port-based/802.1p/DSCP priority
Support 4 priority queues
Rate Limit
Storm Control
L2 Features IGMP Snooping V1/V2/V3
Static Link Aggregation
Port Mirroring
Cable Diagnostics
Loop Prevention
VLAN Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
MTU/Port/Tag VLAN
Transmission Method Store-And-Forward
| Weight | 1.32 kg |
|---|---|
| Dimensions | 414 × 172 × 70 mm |
| Warranty | 60 |
| Manufacturers Code | TL-SG116E |
| Manufacturer |
