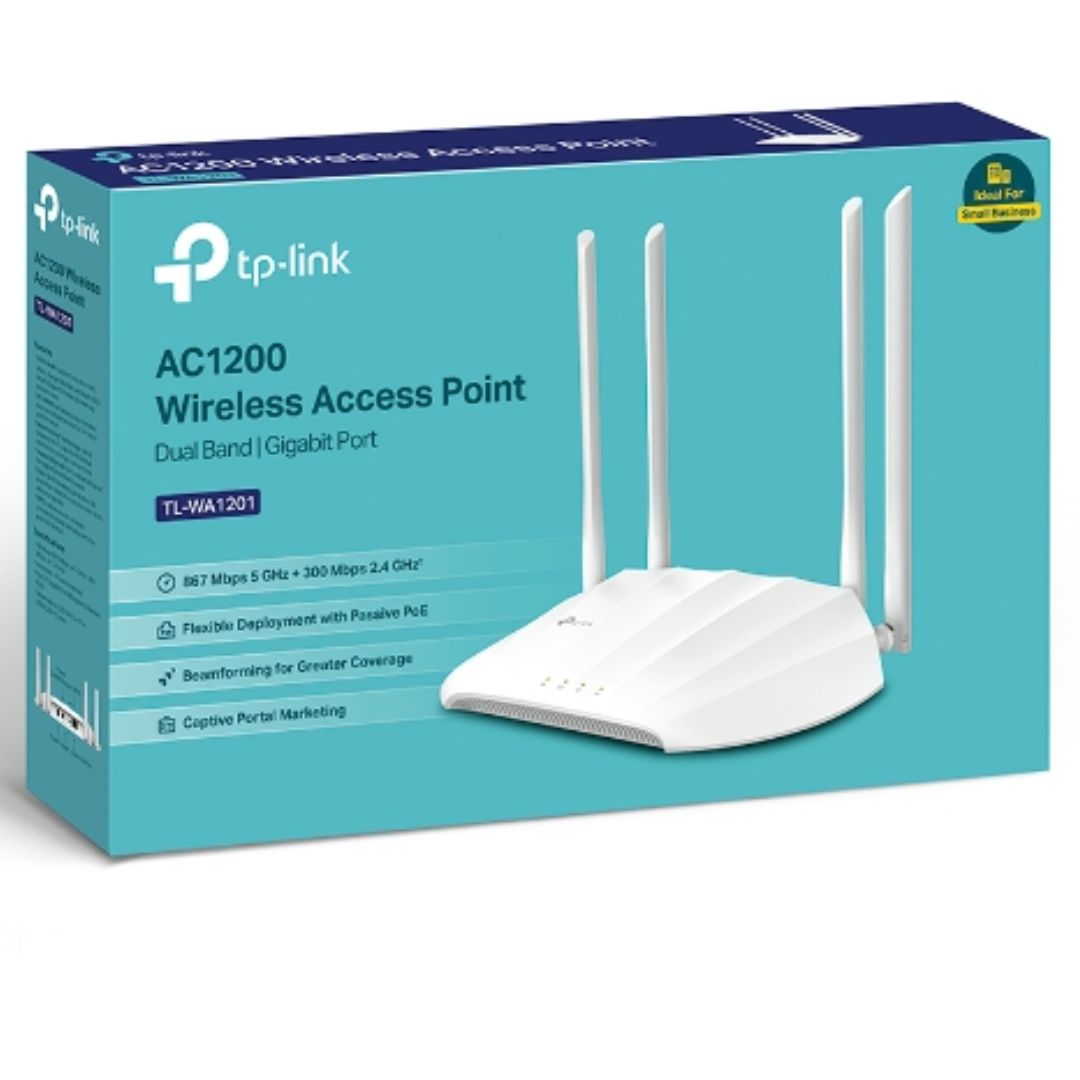

TP-Link TL-WA1201 AC1200 Wireless Access Point, AC1200 Dual-Band Wi-Fi, Passive POE, Multiple Modes, MU-MIMO, Boosted Coverage, Captive Portal

TP-Link TL-WA801N 300Mbps Wireless N Access Point
ƒ?› AC1200 Dual-Band Wi-Fi ƒ?? 867 Mbps at 5 GHz and 300 Mbps at 2.4 GHz band.
ƒ?› Flexible Deployment ƒ?? Supports Passive PoE to carry electrical power and data simultaneously.
ƒ?› Multiple Modes ƒ?? Supports Access Point, Range Extender, Multi-SSID, and Client modes to meet any network needs.
ƒ?› MU-MIMO Technology ƒ?? Simultaneously transfers data to multiple devices for 2?? faster performance.
ƒ?› Boosted Coverage ƒ?? Four fixed antennas equipped with Beamforming technology extend and concentrate the Wi-Fi signals.
ƒ?› Captive Portal ƒ?? Offers a designed portal page for heightened security and marketing.

HARDWARE FEATURES
Interface 1?? 10/100/1000 Mbps Ethernet Port
(Supports Passive PoE)
Button Power On/Off Button, WPS Button, Reset Button
External Power Supply 12V/1.5A
Wireless Standards IEEE802.11b/g/n 2.4 GHz, IEEE 802.11ac/n/a 5 GHz
Dimensions ( W x D x H ) 225??145.5??37 in (400??255??72 mm)
Antenna Type 4 Fixed High Performance Antennas
WIRELESS FEATURES
Frequency 2.4 GHz and 5 GHz
Signal Rate 867 Mbps at 5 GHz, 300 Mbps at 2.4 GHz
Reception Sensitivity 5 GHz:
11a 6 Mbps: -95 dBm, 11a 54 Mbps: -81 dBm
11ac VHT20(MCS0): -94 dBm, 11ac VHT20(MCS8): -71 dBm
11n HT40(MCS0): -91 dBm, 11n HT40(MCS7): -71 dBm
11ac VHT80(MCS0): -88 dBm, 11ac VHT80(MCS9): -63 dBm

2.4 GHz:
11g 54Mbps: -78 dBm
11n HT20(MCS0): -92 dBm, 11n HT20(MCS7): -74 dBm
11n HT40(MCS0): -88 dBm, 11n HT40(MCS7): -72 dBm
Transmit Power CE: <20dBm(2.4GHz), <23dBm(5.15GHz~5.25GHz) FCC: <30dBm(2.4GHz&5GHz) Wireless Modes Access Point, Range Extender, Client, Multi-SSID Wireless Functions Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics, Wireless Multicast Forwarding, DHCP Server, Access Control Wireless Security 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA-PSK2 encryptions DHCP Server, DHCP Client List Quality of Service WMM Advanced Functions Captive Portal OTHERS Certification CE, FCC, RoHS Package Contents Wireless Access
