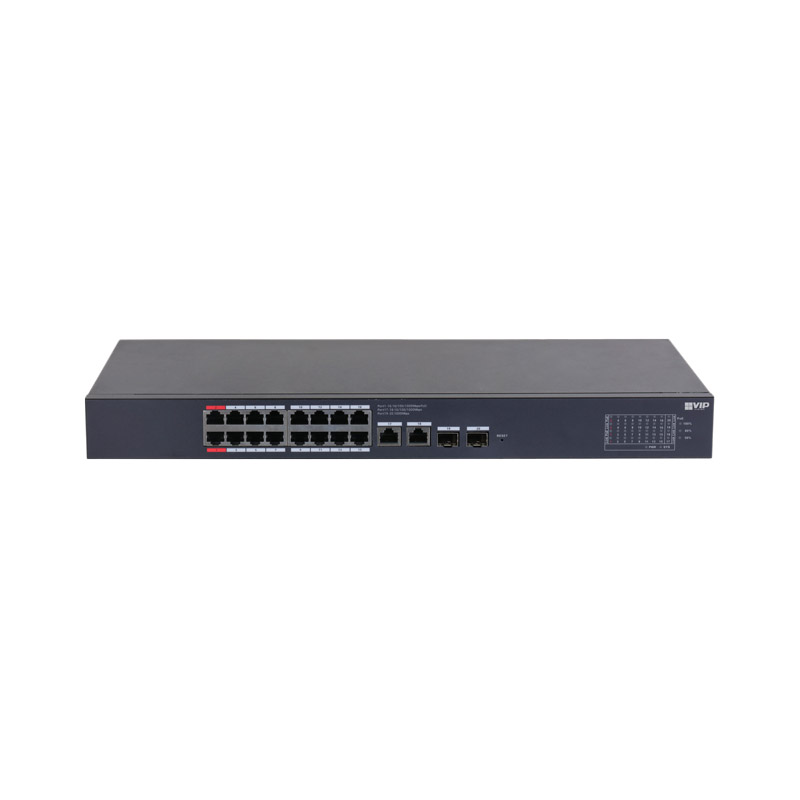

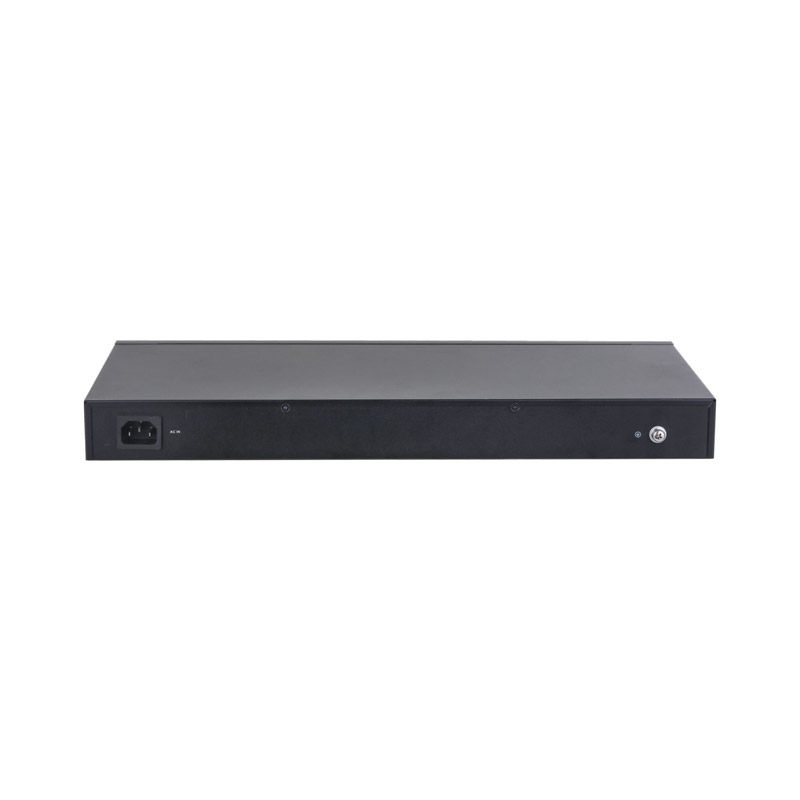

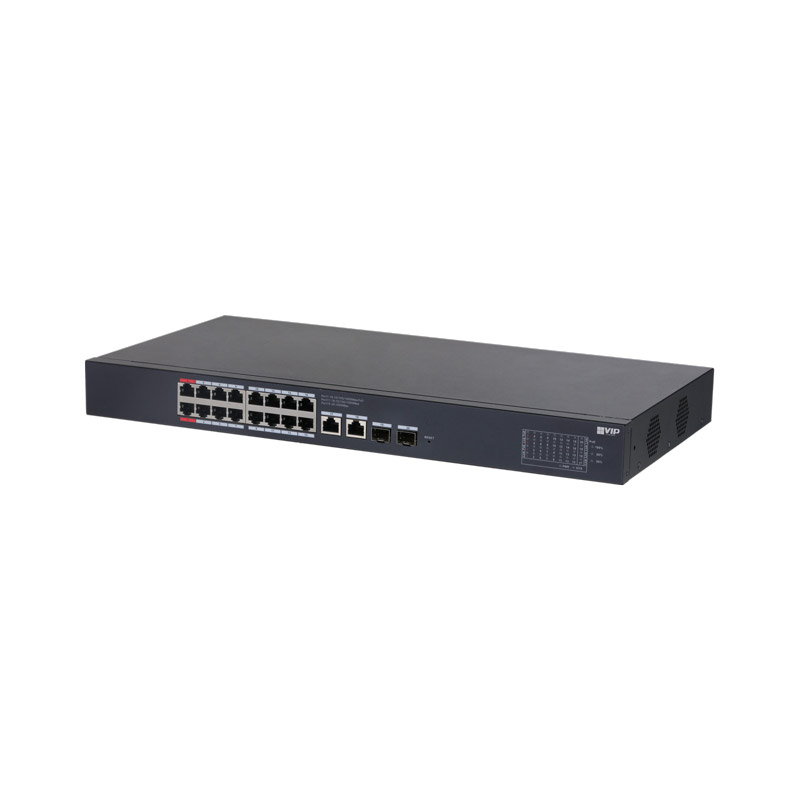

VIP Vision 16-Port 1000M Gigabit Managed Hi-PoE Ethernet Switch

$401.38 .. inc GST

In stock

VSPOE-SWB16C

Buy it now
Brands:
SKU: VSPOE-SWB16C

The VSPOE-SWB16C a cloud managed gigabit PoE switch with 16 ports. Designed for high-powered PoE devices, this switch offers flexible, high-speed networking and can be monitored in real-time via a phone. Additionally, the switch offers network management functions, supporting CLI and various types of web and network management software based on SNMP.

Product features:
• 16 x PoE+ 1000Mbps device ports
• Port 1-2 PoE 2.0 (<90W), Port 3-16 PoE+ (<30W) • 2 x 1000Mbps Base-T uplink ports • 2 x 1000Mbps Base-X (SFP) uplink combo ports • Total PoE power load up to 240W • 40Gbps switching capacity • L2 management for network transmission configuration • Rackmount tabs for 19” cabinet installation • Professional appearance full metal enclosure • Lightning overvoltage protection up to 4kV • Operating temperature range : –10 °C to +55 °C

Weight 3.05 kg
Dimensions 540 × 342 × 90 mm
DHCP

DHCP Client / DHCP Server / DHCP Snooping

Device Ports

Port 1-16: 16 x 10/100/1000M Base-T (PoE)

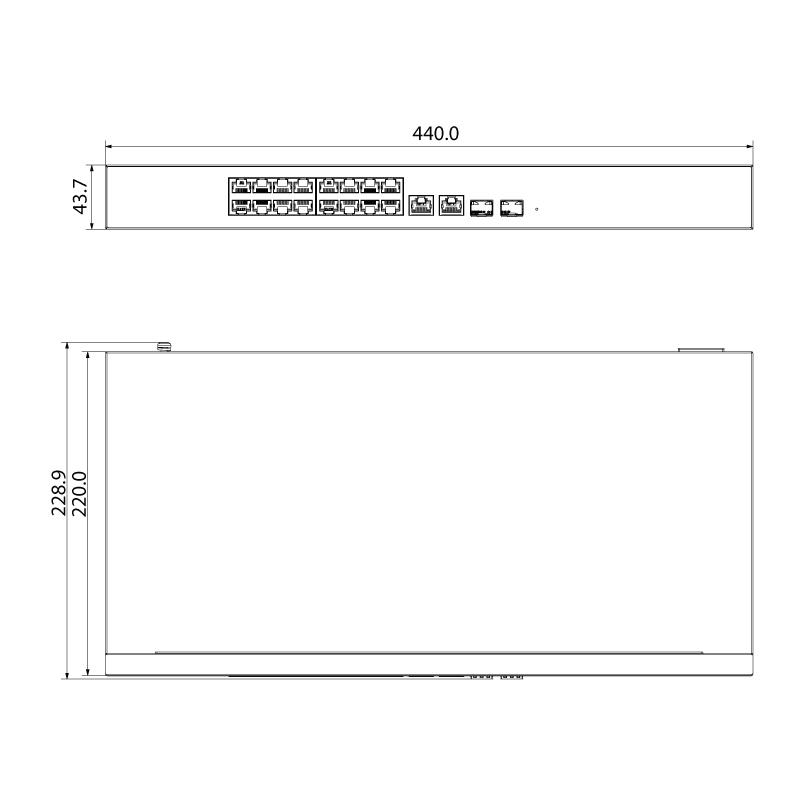

Dimensions

440 x 220 x 44mm

Exchange Mode

Store & forward

Extend Mode

Support up to 250m at 10Mbps

Flow Control

Support IEEE 802.3x (full duplex flow control) and back pressure flow control (half duplex)

Input Power

100 ~ 240VAC

Lightning Protection

Common Mode: 4kV / Differential Mode: 2kV

LLDP

Support

MAC Address Capacity

8K

Management

L2 Managed

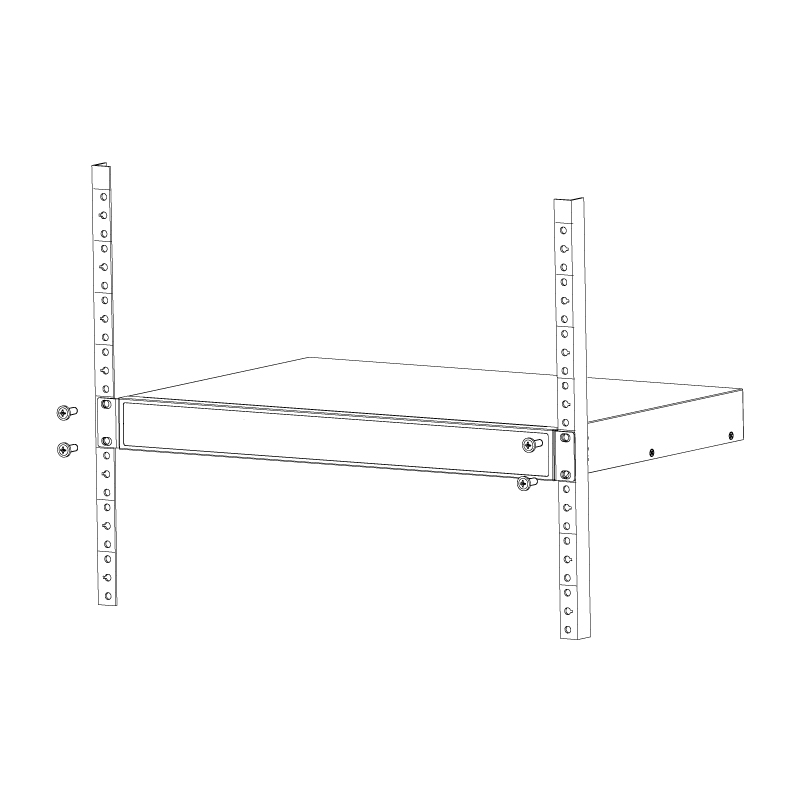

Mounting Options

Desktop mount & Rack mount tabs

Network Management

Web (http and https protocol), iLinksView, CLI; SNMP V1/V2C/V3

Network Time Protocol

Support

Operating Environment

Operating Temperature –10 °C to +55 °C

Packet Forwarding Rate

29.76Mbps

PoE

Yes

PoE Management

Power consumption management, Power on and power off, Power down for overload, Green PoE, Legacy support

PoE Protocol

IEEE802.3af / IEEE802.3at / Hi-PoE / IEEE802.3bt

Port Aggregation

Link Aggregation

Port Mirroring

Many-to-one port mirroring

Ports

16 ports

Quality of Service

8 output queues for each port, Traffic shaping, port tag remarking, QoS based on CoS/DPL/PCP, QoS based on DSCP

Security Features

User management, HTTPS, SSH, SNMP V1/V2/V3, ACL, 802.1x, Loop protection

Spanning Tree Protocol

STP / RSTP / MSTP

Speed

Gigabit 10/100/1000

Switch Management

Layer 2+ Management

Switch Power Load

Port 1-2: ?90W / Ports 3-16: ?30W (Total: ?240W)

Switching Capacity

40Gbps

System Maintenance

Configuration file upload/download, Supports updated packet upload , System log

Virtual LAN

IEEE802.1q Standard VLAN / VLAN Amount: 4K

Weight

2.37kg
