VIP Vision Access Control Card & Keypad Reader – Slimline
$63.48 .. inc GST
In stock
AC-WRB-CK

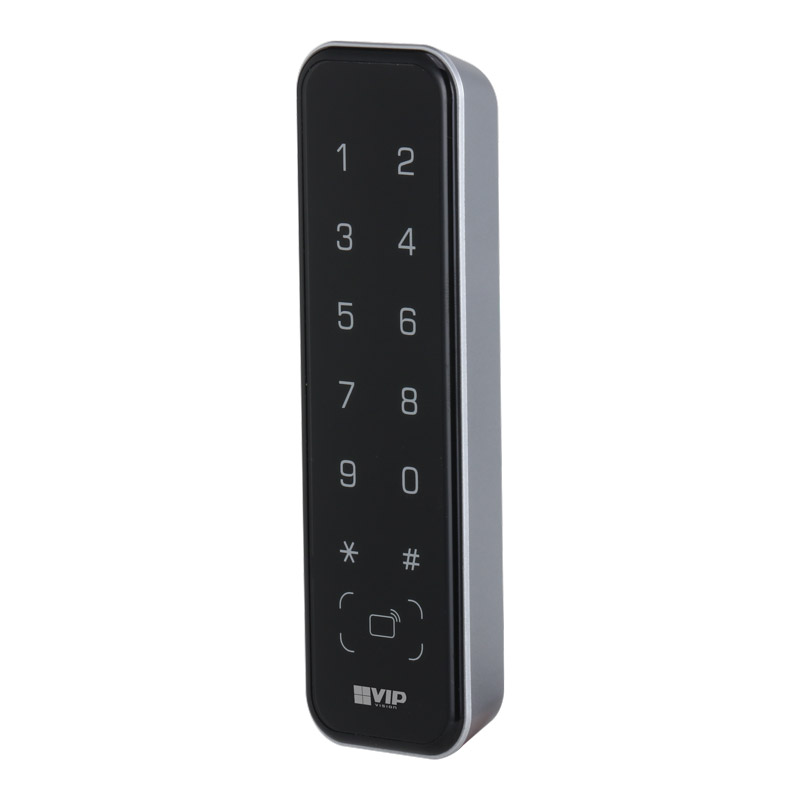

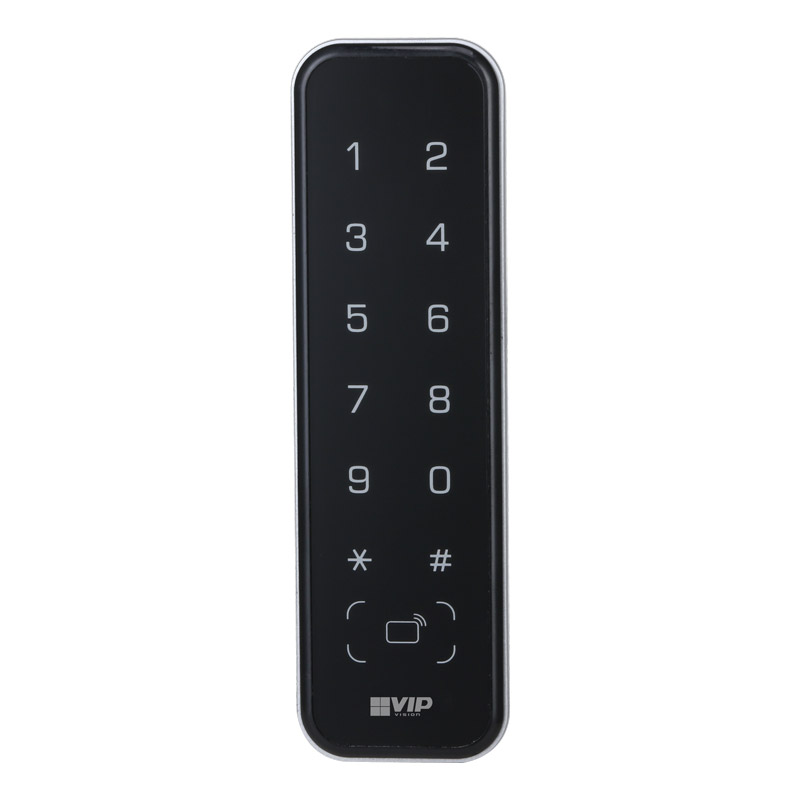

The AC-WRB-CK reader in the AC-W Series is a surface mount, slimline card and keypad authentication reader, with premium design and quick surface mount installation. Users are prompted to access alerts via audio and LED indicator cues for a smooth access control experience, ideal for commercial applications.
• Card and keypad reader authentication
• Web management via controller and web browser
• RS-485 or Wiegand protocol via 13.56MHz RFID
• Reader can enroll new access cards or keyfobs
• LED and chime for user audio/visual prompts
• Anti-tamper alarm and backlit keypad
• Polycarbonate and tempered glass construction
• IP66 weather rated (fitted as per install guidelines)
| Weight | 0.2 kg |
|---|---|
| Dimensions | 55 × 75 × 195 mm |
| Communication | RS-485 / Wiegand 34 |
| Audio | Buzzer |

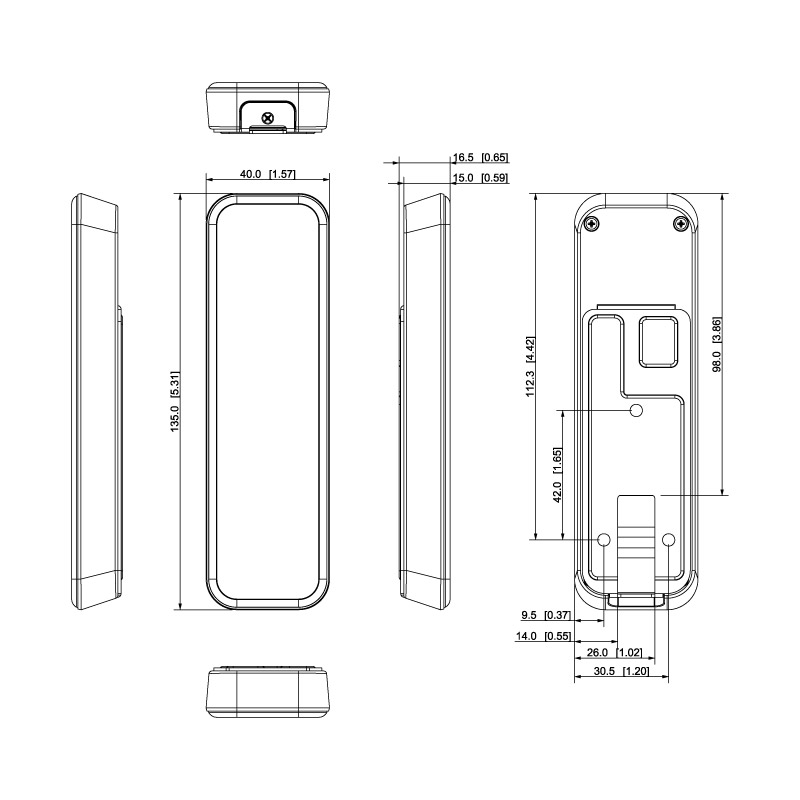

| Dimensions | 135 x 40 x 15mm |
| Fingerprint Scan | – |
| Ingress Protection | IP66 (when fitted as per product installation guidelines) |
| Keypad | 12 Touch Keys (0-9,*,#) |
| Light | Blue Backlight |
| Net Weight | 0.16kg |
| Operating Conditions | -30°~+70° C / <95% RH |
| Power Supply | 12VDC 0.5A, Consumption: ?0.9W (Standby), ?1.7W |
| Product | Card/Keypad Reader |
| RFID Format | 13.56MHz (Mifare) |
| RFID Read Range | ?5cm |
| RFID Read Time | 0.1s |
| Tamper Switch | Yes |
| Vandal Protection | – |
