Mortise Mount Magnetic Lock

$113.56 ..inc GST

In stock

MAGLOC100M

Buy it now
Brands:
SKU: MAGLOC100M

The Watchguard™ MAGLOC Series comprises affordable access solutions, with a wide range of electromagnetic locks and accessories to safely and securely control access in your home or business.

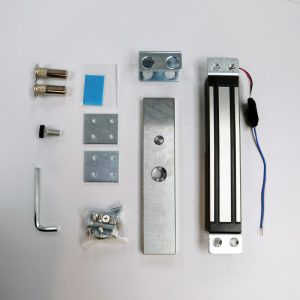

The MAGLOC100M is a mortise mounted electromagnetic door lock, designed for indoor use. This model includes the electromagnetic lock, armature plate and mounting component kit.

Product features:
• Mortise mount design
• 270kg approximate holding force
• Anodised aluminium face plate with zinc finish
• 12V/24VDC selectable power input
• Overvoltage/voltage spike protection

Weight 4.7 kg
Dimensions 40 × 228 × 38 mm
Construction

Anodised Aluminium with Zinc Finish

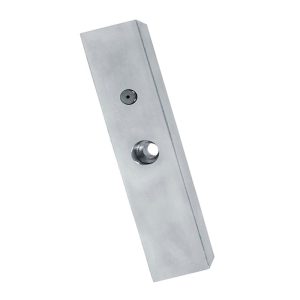

Armature Dimensions

185 x 38 x 12.5mm

Current Draw

500mA@12V / 250mA@24V

Door Status Sensor

No

Holding Force

270kg

Lock Configuration

Fail Safe

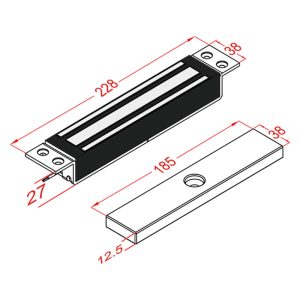

Lock Dimensions

228 x 38 x 27mm

Lock Status Sensor

No

Power Input

12VDC / 24VDC (selectable)

Timer

No

Type

Mortise Mount

Weather Rating

Indoor Only
