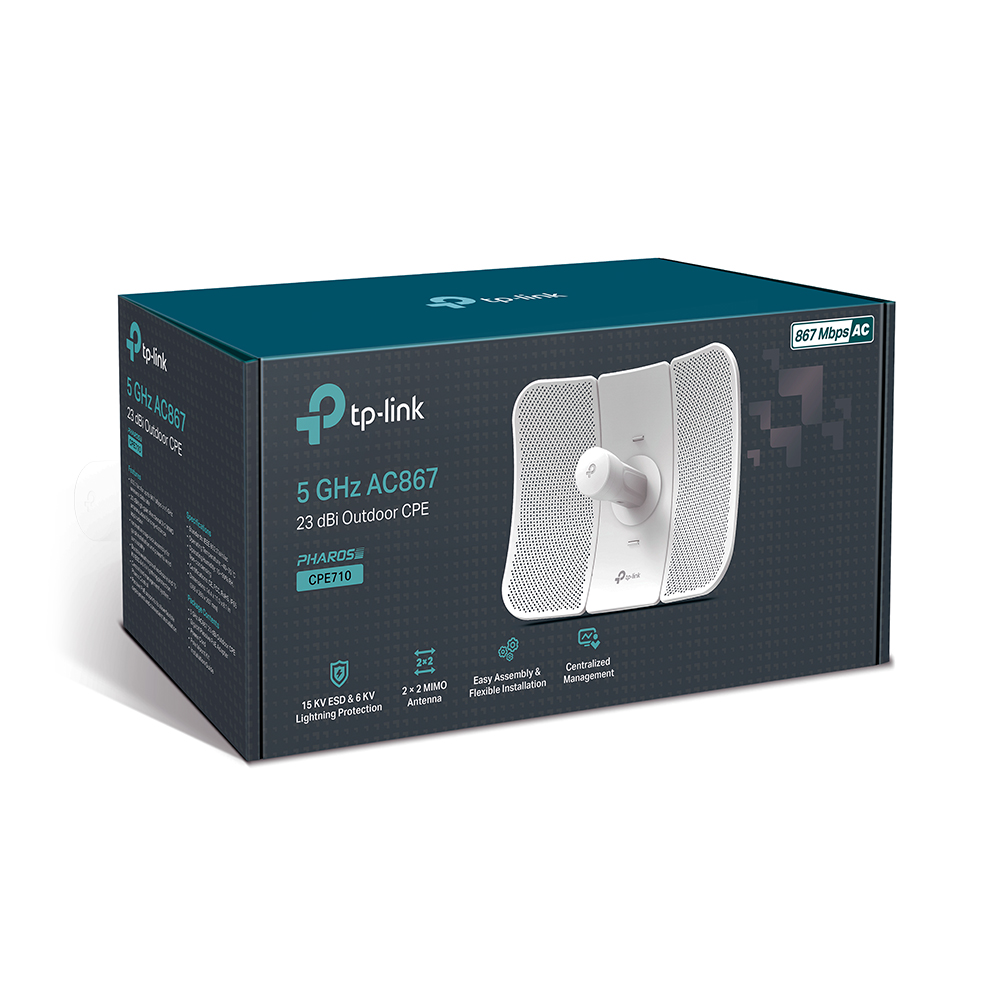

TP-Link CPE710 5GHz AC 867Mbps 23dBi High-gain Directional Outdoor CPE, IP65 Weather Proof, Lightning Protection, Passive POE, Centralised Management

TP-Link CPE710 5GHz AC 867Mbps 23dBi Outdoor CPE

ƒ?› 802.11ac for up to 867Mbps on 5GHz wireless data rate
ƒ?› 23dBi high-gain directional 2??2 MIMO, ideal for long-distance application
ƒ?› Excellent beam directivity, improved latency and noise cancellation
ƒ?› Innovative snap-lock parts make for fast assembly and a sturdy structural design keeps CPE710 stable even in strong winds
ƒ?› Durable IP65 weatherproof enclosure along with 15kV ESD and 6kV lightning protection ensures all-weather suitability
ƒ?› Pharos Control gives administrators a free, centralized management system
ƒ?› Passive PoE supports to allow flexible deployment and convenient installation

HARDWARE FEATURES
Processor Qualcomm 750MHz CPU, MIPS 74Kc
Memory 128 MB DDR2 RAM, 16 MB Flash
Interface 1 10/100/1000 Mbps Shielded Ethernet Port (LAN/POE)
1 Reset Button
Power Supply Passive Power over Ethernet via LAN (+4,5pins; -7,8pins)
Voltage range: 16-27V DC
Dimensions ( W x D x H ) 366 x 280 x 207 mm (14.4 x 11.0 x 8.1 in.)
Antenna Gain 23 dBi
Antenna Beamwidth 9?ø (Azimuth)/7?ø (Elevation)
Protection 15 KV ESD Protection
6 KV Lightning Protection
Enclosure Material: Outdoor PC stabilized plastic
Weatherproof: IP65 water and dust proof design

WIRELESS FEATURES
Wireless Standards IEEE 802.11a/n/ac
Wireless Speeds Up to 867 Mbps (80 MHz, Dynamic)
Up to 400 Mbps (40 MHz, Dynamic)
Up to 173.4 Mbps (20 MHz, Dynamic)
Frequency 5.15~5.85 GHz
Transmit Power Max. 27 dBm (Adjustable power by 1dBm)

SOFTWARE FEATURES
Network Configuration WAN: Static/ Dynamic/ PPPoE
LAN: Static/ Dynamic/ DHCP
Forwarding: ALG/ UPnP/ Virtual Server/ Port Trigger
Security: SPI Firewall/ Ping Forbidden/ DoS Protection
Access Control
Static Routing
Bandwidth Control
IP & MAC Binding

POE ADAPTER FEATURES
Dimensions(W x D x H) 85.8??43.9??29.7 mm
