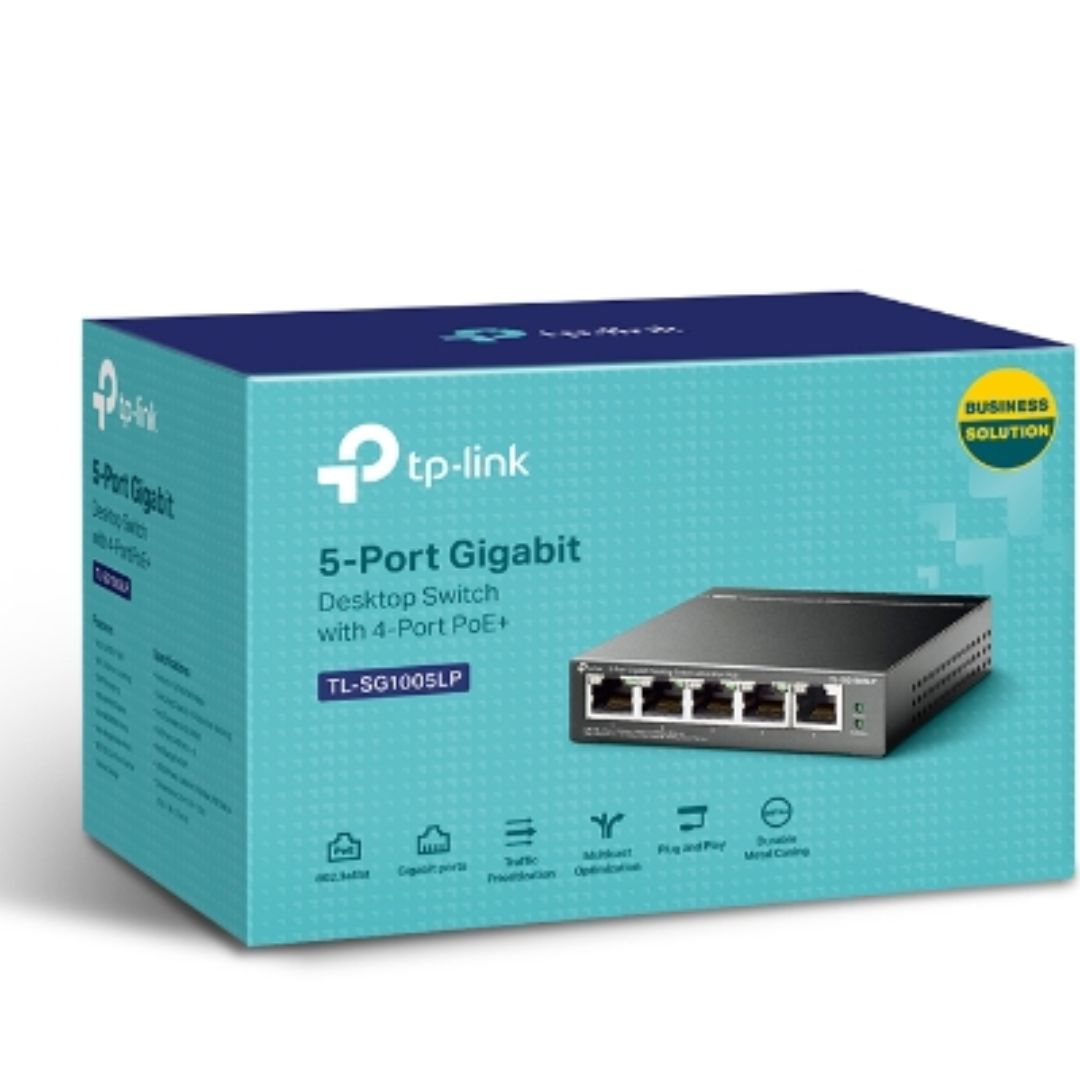

TP-Link TL-SG1005LP 5-Port Gigabit Desktop Switch with 4-Port PoE+, Up To 40W For all PoE Ports, Up To 30W Each Port
$59.00 ..inc GST
In stock
TP-Link TL-SG1005LP 5-Port Gigabit Desktop Switch with 4-Port PoE+, Up To 40W For all PoE Ports, Up To 30W Each Port
TP-Link TL-SG1005LP 5-Port Gigabit Desktop Switch with 4-Port PoE+
? 5?? 10/100/1000 Mbps RJ45 ports
? With four PoE+ ports, transfers data and power on one single cable
? Works with IEEE 802.3af/at compliant PDs
? 802.1p/DSCP QoS enable smooth latency-sensitive traffic
? Supports PoE Power up to 30 W for each PoE port
? Supports PoE Power up to 40 W for all PoE ports*
? Plug and play, no configuration and installation required
HARDWARE FEATURES
Interface ? 5?? 10/100/1000Mbps RJ45 Ports
? AUTO Negotiation
? AUTO MDI/MDIX
Network Media ? 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
? EIA/TIA-568 100?? STP (maximum 100m)
? 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
? EIA/TIA-568 100?? STP (maximum 100m)
? 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
? EIA/TIA-568 100?? STP (maximum 100m)
Fan Quantity Fanless
External Power Supply External Power Adapter (Output: 53.5 VDC / 0.81 A)
Packet Forwarding Rate 7.44 Mpps
PoE Ports (RJ45) ? Standard: 802.3 af/at compliant
? PoE Ports: Ports 1??4
? Power Supply: 40 W
Mac Address Table 2K
Jumbo Frame 16 KB
Switching Capacity 10 Gbps
Dimensions ( W x D x H ) 3.9??3.9??1.0 in (99.8??98??25 mm)
Max Power Consumption ? 4.12 W (220/50 Hz. no PD connected)
? 47.5 W (220/50 Hz. with 40 W PD connected)
Max Heat Dissipation ? 14.05 BTU/h (no PD connected)
? 161.98 BTU/h (with 40 W PD connected)
SOFTWARE FEATURES
Advanced Features ? Compatible With IEEE 802.3af/at Compliant PDs
? Mac Address Auto-Learning And Auto-Aging
? IEEE 802.3x Flow Control
? 802.1p/DSCP QoS
? IGMP Snooping
Transfer Method Store-And-Forward
OTHERS
Certification FCC, CE, RoHS
Package Contents ? TL-SG1005LP
? Power Adapter
? Installation Guide
Environment ? Operating Temperature: 0??40 ? (32??104 ??);
? Storage Temperature: -40??70 ? (-40??158 ??)
? Operating Humidity: 10??90% RH non-condensing
? Storage Humidity: 5??90% RH non-condensing
| Weight | 0.74 kg |
|---|---|
| Dimensions | 198 × 134 × 120 mm |
| Warranty | 60 |
| Manufacturers Code | TL-SG1005LP |
| Manufacturer |
