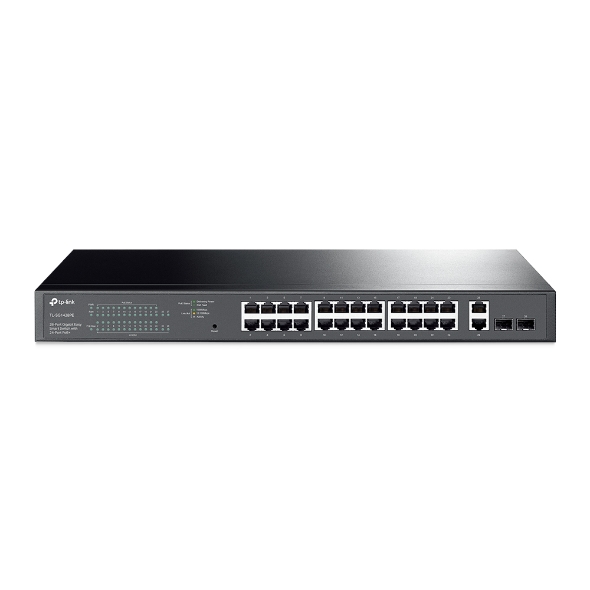

TP-Link TL-SG1428PE 28-Port Gigabit Easy Smart Switch with 24-Port PoE+ 32xVLAN 56Gbps Switching Capacity Rack Mountable
$369.00 ..inc GST
In stock
TP-Link TL-SG1428PE 28-Port Gigabit Easy Smart Switch with 24-Port PoE+ 32xVLAN 56Gbps Switching Capacity Rack Mountable
TP-Link TL-SG1024DE 24-Port Gigabit Desktop/Rackmount Easy Smart Switch energy-efficient L2 Features Supports MAC 128xVLAN 48Gbps Switching Capacity
TP-Link TL-SG1428PE 28-Port Gigabit Easy Smart Switch with 24-Port PoE+
ƒ?› 24 10/100/1000Mbps RJ45 PoE+ Ports Switch with 2 SFP Slots
ƒ?› PoE power budget is up to 250 W*, making it ideal for small to medium business surveillance systems
ƒ?› Priority Mode helps to guarantee the quality of sensitive application like video monitoring
ƒ?› PoE Auto Recovery enables system self-healing to guarantee the stable operation of PoE-connected devices
ƒ?› QoS is for smooth internet-surfing experience and IGMP Snooping is capable of optimizing traffic for IPTV
ƒ?› Intelligent power management can protect the switch from overload
HARDWARE FEATURES
Standards and Protocols IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
IEEE 802.3af, IEEE 802.3at, IEEE 802.1q, IEEE 802.1p
Interface 26 10/100/1000 Mbps RJ45 Ports
2 Gigabit SFP Ports
Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100?? STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100?? STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100?? STP (maximum 100m)
1000BASE-X MMF, SMF
Fan Quantity 2 Fans
Physical Security Lock Yes
Power Supply 100-240V AC, 50/60 Hz
PoE+ Ports(RJ45) Standard: 802.3at/802.3af compliant
PoE+ Ports: 24 Ports
Power Supply: 250 W
Dimensions ( W x D x H ) 17.3 ?? 8.7 ?? 1.73 in (440 ?? 220 ?? 44 mm)
Mounting Rack Mountable
Max Power Consumption 27 W (220/50Hz. no PD connected)
304.7 W (220/50Hz. with 250 W PD connected)
Max Heat Dissipation 92.07 BTU/h (no PD connected)
1039.03 BTU/h (with 250 W PD connected)
PERFORMANCE
Switching Capacity 56 Gbps
Packet Forwarding Rate 41.7 Mbps
MAC Address Table 8K
Packet Buffer Memory 4.1 Mbit
Jumbo Frame 9 KB
SOFTWARE FEATURES
Quality of Service Support Port-based 802.1p/DSCP priority
| Weight | 3.92 kg |
|---|---|
| Dimensions | 532 × 338 × 100 mm |
| Warranty | 60 |
| Manufacturers Code | TL-SG1428PE |
| Manufacturer |
